Summary of Contents for John Lewis JLCHI5201

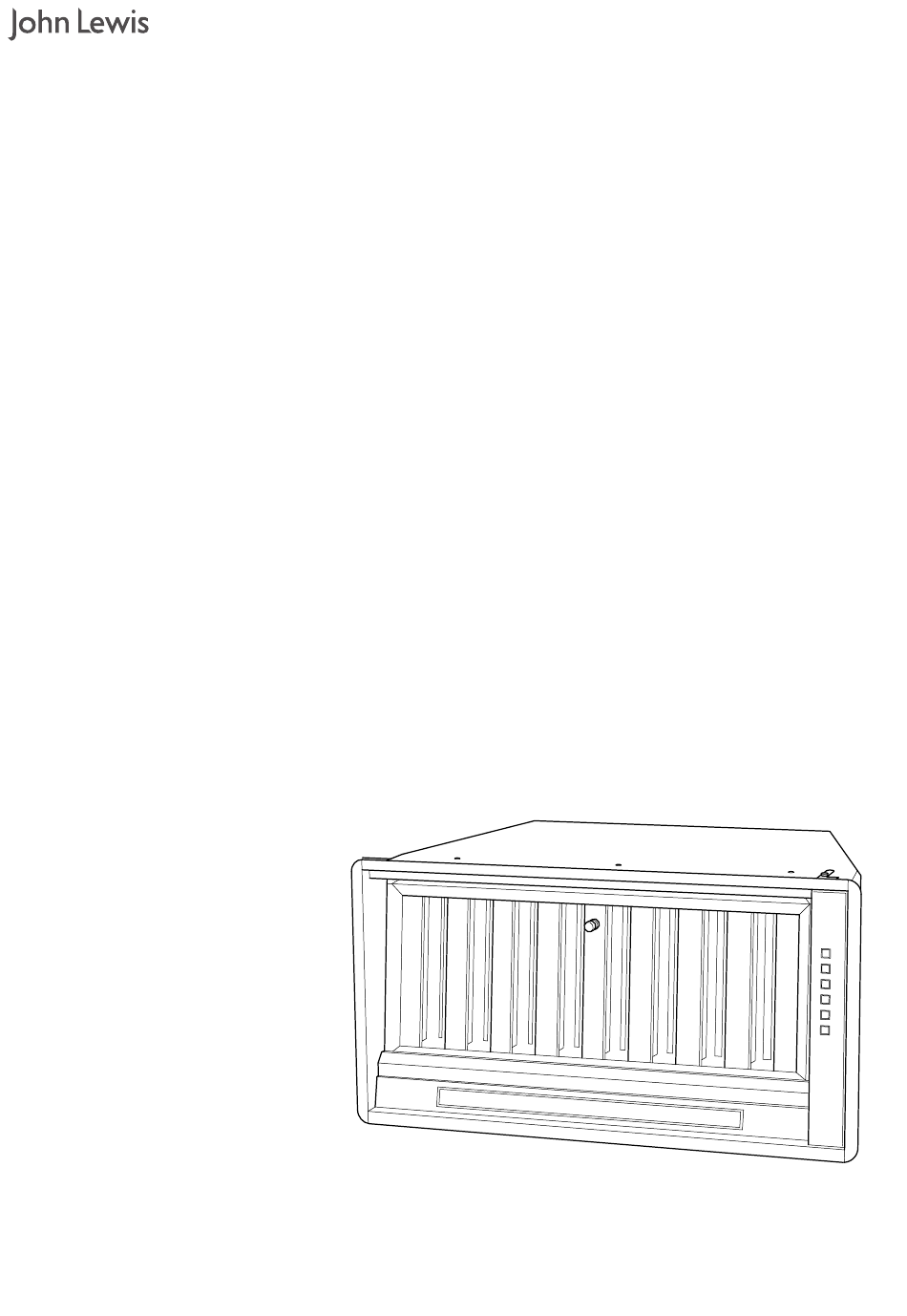

- Page 1 Instruction Manual JLCHI5201/JLCHI8501 52cm/85cm Cooker hood...
-
Page 2: Table Of Contents
Contents Instruction Manual JLCHI5201/JLCHI8501 52cm/85cm Cooker hood Introduction Safety is important In the box Safety information Important safety information Warnings Cautions Electrical information Operation Care and cleaning Cleaning and replacing baffle filters Cleaning and replacing charcoal filters Cleaning and replacing the oil... -
Page 3: Introduction
These warnings have been provided in the interest of safety. You MUST read them carefully before using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance or our Technical Support centre on 0330 123 0106. -
Page 4: Safety Information
To avoid accidents to property or people it is important to follow the instructions given. Failure to do so removes any liability from John Lewis. Warnings – Any installation work must be undertaken by a qualified electrician or competent person. -
Page 5: Cautions
Should the power supply cable need to be replaced, this must be carried out by an approved service engineer. John Lewis declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the cooker hood’s rating plate. -
Page 6: Operation
Operation Instruction Manual JLCHI5201/JLCHI8501 The controls are (left to right): 52cm/85cm Cooker hood Light. Press this button to switch the lights in the cooker hood on or off. Off/Fan Speed 1. If the cooker hood is: – Off, press this button to switch the cooker hood on at fan speed 1. -
Page 7: Care And Cleaning
Note: This cooker hood is not supplied with charcoal filters. Charcoal filters can be obtained from www.johnlewis.com. The model numbers are: – for JLCHI5201, model number JLCHF01 – for JLCHI8501, model number JLCHF02 Charcoal filters are designed to absorb grease, dust and unwanted odours during cooking. -
Page 8: Cleaning And Replacing The Oil Tank
4. Replace the baffle filter in the cooker hood by pushing the filter into the Instruction Manual JLCHI5201/JLCHI8501 cooker hood and turning the handle forwards until it locks in position. 52cm/85cm Cooker hood Cleaning and replacing the oil tank To replace the oil tank: 1. -
Page 9: Installation
1. Cut a hole in the bottom of the cabinet (C) to hold the cooker hood. The dimensions of the hole must be: – for JLCHI5201, 501 mm x 265 mm – for JLCHI8501, 835 mm x 265 mm 2. Prepare the power supply (see page 5). -
Page 10: Clearing The Stop Valve
Clearing the stop valve Instruction Manual JLCHI5201/JLCHI8501 Note: Before connecting the flexible exhaust pipe to the motor, make sure 52cm/85cm Cooker hood that the stop valve (on the air outlet of the motor) can swing freely. Connecting the exhaust pipe (filtering/recirculation) 8. -
Page 11: Guarantee
Disposal This symbol indicates that this product should not be treated as normal household waste and it should be recycled. John Lewis do not operate instore take back, but as members of the Distributor Take Back scheme have funded the development and upgrade of recycling facilities across the UK. -
Page 12: Troubleshooting
If none of the above suggestions resolve the problem please contact your local John Lewis branch. Never attempt to repair the cooker hood yourself. Replacing LED lights Your cooker hood is fitted with LED light bulbs. They should only be... -
Page 13: Specifications
Specifications Instruction Manual JLCHI5201/JLCHI8501 Specifications of the cooker hood that you have just purchased may vary 52cm/85cm Cooker hood from the information in this table due to technical innovations. Model Number JLCHI5201 JLCHI8501 Type Cooker Hood Cooker Hood Dimensions 520mm wide x 290mm deep... - Page 14 John Lewis Partnership 171 Victoria Street London SW1E 5NN johnlewis.com Please retain these instructions for future reference...
