- Page 1 LT0702-HDS User Manual LT0702-HDS User Manual...
- Page 2 LT0702-HDS User Manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents

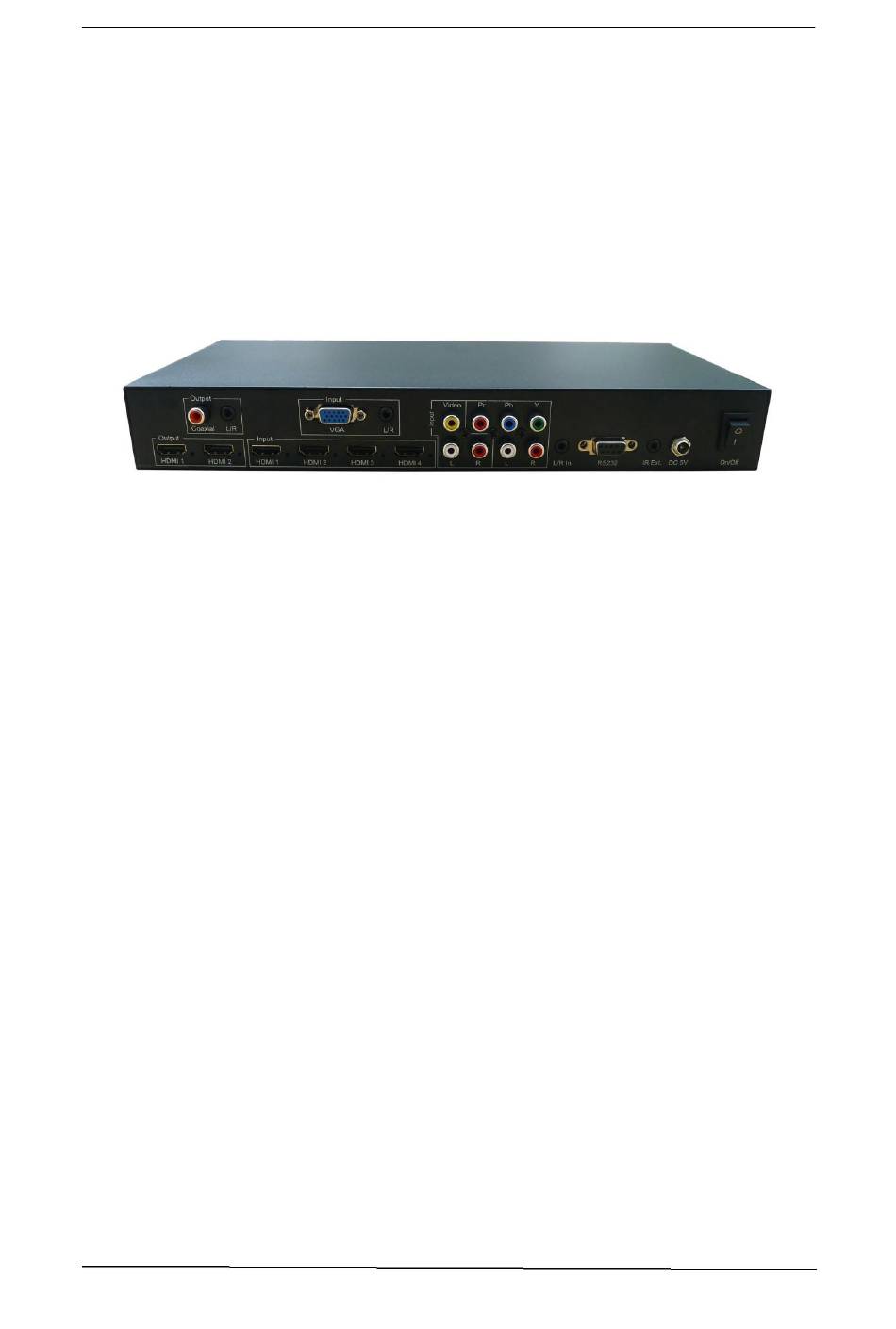

14. RMA Policy Introduction LT0702-HDS is a HDMI,VGA, Component and Composite presentation switcher. Embedded splitter and dual switcher modes, it can work as 7:1x2 multiple splitter and 4x1 &7x1 dual switcher. This presentation switcher also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. -
Page 4: Features
LT0702-HDS User Manual Each source can be switched to the HDMI output using the front-panel push buttons, IR remote control or RS-232 interface. Features: • Dual mode selectable, 1x2 splitter mode and dual switcher mode • Bypass and scaled formatted output selectable •... - Page 5 LT0702-HDS User Manual 5. HDMI input 1 to 4 selection buttons ---Press to select the output 1 from 1 to 4 working as 4k 4x1 switcher. 6. Format set button---Press to set the resolution for the output. 7. Menu button---Press to enter EDID set , volume setting or F/W information. Three EDID segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for example: IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1.
- Page 6 LT0702-HDS User Manual 12. L/R in selection button---Press to embed L/R audio to the HDMI output. 13. HDMI input selection button 1 to 4---Press to select the input from 1 to 4. 14. VGA input selection button---Press to select VGA input.
-
Page 7: Remote Control Descriptions
LT0702-HDS User Manual Remote Control Description... -
Page 8: Application Diagram
LT0702-HDS User Manual Application Diagram Specifications: Bandwidth： 10.2Gbps Video Input Connectors: 4x HDMI Type A, 1x VGA, 1xYPbPr,1x AV Video Output Connectors: 2x HDMI Type A Audio Input Connectors: 2x 3.5mm stereo jack, 4x RCA (2 x L/R) Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF) -
Page 9: Package Contents
LT0702-HDS User Manual Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply: DC 5V/2A Package Contents: 1x CV1102-HTS 1x 12V/5A power supply 1x Remote control 1x IR Receiver. 1x mounting kit. RS-232 Pin Assignment Remote Control LT0702-HDS Console... -
Page 10: Rs232 And Telnet Commands
LT0702-HDS User Manual Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None RS232 and Telnet Commands Command Action Print Help Information HELP Print Help Information STATUS Print System Status And Port Status Power On, System Run On Normal State... - Page 11 LT0702-HDS User Manual rr=07: 1360x768@60Hz rr=08: 1440x900@60Hz rr=09: 1680x1050@60Hz EDID xx CP yy Set Input:xx EDID Copy From Output:yy yy=[00]: yy=[01...08] EDID xx DF zz Set Input:xx EDID To Default EDID:zz xx=00: Select All INPUT Port xx=[01...04]: Select One INPUT Port yy=[01...02]: Select One OUTPUT Port...
-
Page 12: Maintenance
LINETEK is responsible for the freight charges only for return of the equipment from the factory to the owner. LINETEK will return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to LINETEK. -
Page 13: Exclusive Remedies
RMA Policy When returning product to LINETEK for any reason, the customer should fill out the official RMA form to obtain a RMA number. Without the permission or approval, LINETEK will be no responsible for any return. This can be initiated by emailing or calling your related sales. - Page 14 Shipping your RMA to LINETEK using regular mailing envelopes is not acceptable, as they do not protect the product from damage during shipping. LINETEK will not repair or replace a module that is shipped in such a way that the product is not properly protected.
