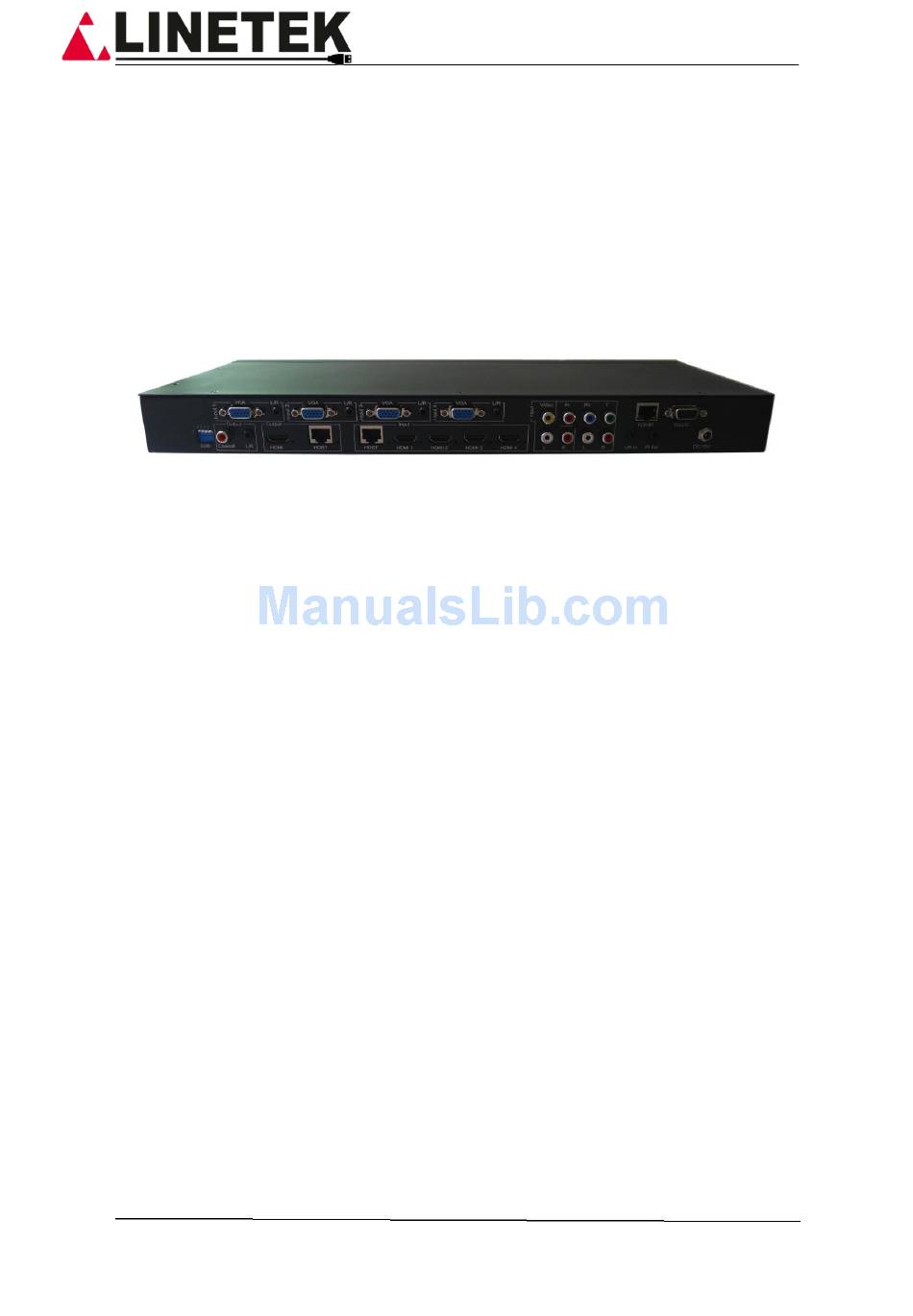

- Page 1 LT1102-HDS User Manual LT1102-HTS User Manual...
- Page 2 LT1102-HDS User Manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
14. RMA Policy Introduction LT1102-HTS is a HDMI,VGA, Component and Composite presentation switcher. Embedded splitter and dual switcher modes, it can work as 11:1x2 multiple splitter and 4x1 &11x1 dual switcher. This presentation switcher also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. -
Page 4: Features
LT1102-HDS User Manual Each source can be switched to the HDMI output using the front-panel push buttons, IR remote control or RS-232 interface. Features: • Dual mode selectable, 1x2 splitter mode and dual switcher mode • Bypass and scaled formatted output selectable •... - Page 5 LT1102-HDS User Manual 6. HDMI input 1 to 4 selection buttons ---Press to select the output 1 from 1 to 4 working as 4k 5x1 switcher. 7. Format set button---Press to set the resolution for the output. 8. Menu button---Press to enter EDID set, volume setting or F/W information. Three EDID segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for example: IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1.
- Page 6 LT1102-HDS User Manual L/R in audio and the volume is adjustable when in splitter mode; Only output 2 will be embedded with the L/R in audio and the volume is adjustable when in dual switcher mode) 14. L/R in selection button---Press to embed L/R audio to the HDMI output. 15.
-
Page 7: Remote Control Descriptions
LT1102-HDS User Manual 14. L/R audio output--- It will always follow HDMI output 2. 15. HDMI output--- Connect to HDTV. 16. HDBT output---Connect to HDBT class A receiver 17. HDBT input--- Connect to HDBT class A transmitter. 18. HDMI input 1 to 4 ---Connect to HDMI sources 19. - Page 8 LT1102-HDS User Manual...
-
Page 9: Application Diagram
LT1102-HDS User Manual Application Diagram Specifications: Bandwidth： 10.2Gbps Video Input Connectors: HDMI Type A, 4x VGA, 1x RJ45 ,1xYPbPr,1x AV Video Output Connectors: 1x HDMI Type A, 1x RJ45 Audio Input Connectors: 11x 3.5mm stereo jack Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF) RS-232 serial port: 1x DB 9 connector,1x 3 phoenix terminal TCP/IP... -
Page 10: Package Contents
LT1102-HDS User Manual Package Contents: 1x LT1102-HTS 1x 12V/5A power supply 1x Remote control 1x IR Receiver. 1x mounting kit. RS-232 Pin Assignment Remote Control LT1102-HTS Console Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit... -
Page 11: Rs232 And Telnet Commands
LT1102-HDS User Manual RS232 and Telnet Commands Command Action Print Help Information HELP Print Help Information STATUS Print System Status And Port Status Power On, System Run On Normal State POFF Power Off, System Run On Power Save State IR ON/OFF Set System IR Control On Or Off KEY ON/OFF Set System KEY Control On Or Off... - Page 12 LT1102-HDS User Manual rr=06: 1024x768@60Hz rr=07: 1360x768@60Hz rr=08: 1440x900@60Hz rr=09: 1680x1050@60Hz OUT FREQ mm Set Output Frequence Mode When Output Resolution is 1080P or 720P mm=AUTO: Set Output Freq Auto Change To Input Fr mm=FORCE: Set Output Freq By CMD:OUT RES rr S elect AUD SCA ORG Scaler Audio Input Follow Port Selection...
-
Page 13: Maintenance
LINETEK is responsible for the freight charges only for return of the equipment from the factory to the owner. LINETEK will return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to LINETEK. -
Page 14: Limitations Of Warranty
The warranty does not apply to any part of a product that has been installed, altered, repaired, or misused in any way that, in the opinion of LINETEK, would affect the reliability or detracts from the performance of any part of the product, or is damaged as the result of use in a way or with equipment that had not been previously approved by LINETEK. - Page 15 Shipping your RMA to LINETEK using regular mailing envelopes is not acceptable, as they do not protect the product from damage during shipping. LINETEK will not repair or replace a module that is shipped in such a way that the product is not properly protected.
