Summary of Contents for Opticon OPN-3200i

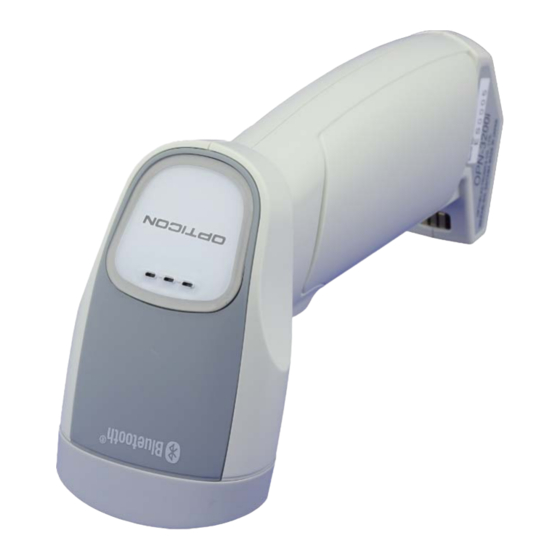

- Page 1 Handheld Bluetooth 2D Imager Scanner OPN-3200i This manual provides specifications for the OPN- Specifications Manual 3200i handheld Bluetooth 2D imager scanner.
- Page 2 PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
- Page 3 OPN-3200i Specifications Manual Revision History Specification No. : SS14021 Product name : OPN-3200i Edition Date Page Section Description of Changes First 2014/10/15 Initial release...
-
Page 4: Table Of Contents
OPN-3200i Specifications Manual Contents 1. Abstract..........................1 2. Overview............................1 3. Basic Specifications......................... 2 4. Detailed View ............................ 5 5. Electrical Specifications ........................6 5.1. Current Consumption........................ 6 5.2. Operating Time and Charging Time ..................6 6. Interface Specifications ........................6 6.1. - Page 5 OPN-3200i Specifications Manual 10.2. Product Safety ........................18 10.3. EMC ............................18 10.4. Others ........................... 19 11. RoHS .............................. 19 12. Reliability............................19 13. Precautions ........................... 19 13.1. Handling ..........................19 13.2. Radio Law ..........................20 13.3. Bluetooth ..........................20 13.4.
-
Page 6: Abstract
This manual provides specifications for the OPN-3200i handheld Bluetooth 2D imager scanner. 2. Overview The OPN-3200i is a handheld 2D imager scanner that enables high speed scanning of standard linear (1D) and 2D symbologies. The scanned data is output via Bluetooth. -
Page 7: Basic Specifications
OPN-3200i Specifications Manual 3. Basic Specifications Item Specification Note 32 bit CISC / 96 MHz FROM 512 Kbyte + 32 Kbyte SRAM 96 Kbyte FROM (storage) 1 Mbyte For data area only Key type 1 key: trigger 2 colors (red, green) and 1 color (blue) - Page 8 OPN-3200i Specifications Manual Item Specification Note GS1 DataBar, GS1 DataBar Limited, GS1 GS1 DataBar: formerly DataBar Expanded, Composite GS1 DataBar, called “RSS” Symbologies Composite GS1-128, Composite EAN, Refer to Chapter 17. for details Composite UPC GS1 DataBar : 0.169 mm...
- Page 9 OPN-3200i Specifications Manual Item Specification Note Peak Wavelength LED safety IEC 62471-1:2006 Exempt_Group 624 nm EN60950-1:2005 Product safety IEC60950-1:2006 EN 55022:2010 EN 301 489-1 V1.9.2 For residential, EN 301 489-17 V2.1.1 commercial and light- EN 300 328 V1.8.1 industrial environments...
-
Page 10: Detailed View
OPN-3200i Specifications Manual 4. Detailed View Figure 1: Detailed View of OPN-3200i Name Description Trigger Key A key to read bar codes Scan Window LED illumination is emitted from this window to read bar codes. The operating statuses, such as bar code reading, Bluetooth connection Status LED and warning, are indicated by different colors. -
Page 11: Electrical Specifications
OPN-3200i Specifications Manual 5. Electrical Specifications 5.1. Current Consumption Item Specification Note Standby 15 mA or less With wireless connection Sleep 1 mA or less Reading, communications, Operating 330 mA or less LED, vibration motor activated Measurement condition Power voltage 3.7 V at 25 °C 5.2. -
Page 12: Optical Specifications
OPN-3200i Specifications Manual 7. Optical Specifications 7.1. Basic Optical Specifications Item Characteristics Scan method CMOS area sensor (white / black) Effective pixels (Column) × (Row) 752 × 480 dots Image capture speed (*1) Frame rate 60 fps Focal distance Distance from the front edge of scanner 124.8 mm... -
Page 13: Aiming Pattern
OPN-3200i Specifications Manual 7.2. Aiming Pattern The aiming is used for the following purpose: 1. Light source to indicate the appropriate reading range 2. Light source for auto trigger operation The aiming specifications are as follows: ・ An optical axis of imaging field of view and the center of horizontal aiming width coincide at a distance of L=65±20 mm from the front edge of the scanner. -
Page 14: Technical Specifications
OPN-3200i Specifications Manual 8. Technical Specifications Code reading is performed by positioning the aiming light over the center of a code. The conditions for technical specifications are as follows unless otherwise specified in each section. <Conditions> Temperature and humidity : Room temperature, room humidity... -
Page 15: Bar Code Test Sample
OPN-3200i Specifications Manual 8.1. Bar Code Test Sample 1D Bar Codes <Code 39> Resolution Symbology Size (mm) No. of Digits 0.127 mm 32 × 10 0.20 mm 100 × 10 Code 39 0.254 mm 32.5 × 12 0.508 mm 36 × 25 <Code 128>... -
Page 16: Scan Area And Depth Of Field
OPN-3200i Specifications Manual 8.2. Scan Area and Depth of Field The scan area is within the arc centered on the scan origin as shown in each resolution, which is measured from the front edge of the scanner. Resolution 0.127 Resolution 0.254 Code 39 Resolution 0.508... -
Page 17: Printed Contrast Signal (Pcs)
OPN-3200i Specifications Manual 8.3. Printed Contrast Signal (PCS) 0.3 or higher <Conditions> : 32% and higher (70% or higher reflectivity of space and quiet zone) Distance : 125 mm from the front edge of the scanner Bar code : UPC (resolution 0.33 mm, PCS 0.3) specified in Section 8.1. -
Page 18: Pitch, Skew And Tilt
OPN-3200i Specifications Manual 8.6. Pitch, Skew and Tilt Pitch : α = ±50° Skew : β = ±50° Tilt : γ = ±180° <Conditions> Bar code : UPC (resolution 0.33 mm) specified in Chapter 8.1 Distance : 125 mm from the front edge of the scanner Curvature : R = ∞... -
Page 19: Auto Trigger
OPN-3200i Specifications Manual 8.8. Auto Trigger When the scanner is placed in a dedicated stand (sold separately) which contains a magnet, it can detect this magnet and enters auto trigger mode. The scanner starts scanning automatically when it detects a change in brightness that occurs when a bar code label is presented in front of it. -
Page 20: Motion Tolerance
OPN-3200i Specifications Manual 8.8.3. Motion Tolerance 100% UPC bar codes moving at 2m/s can be read. <Conditions> Temperature / Humidity : Room temperature / room humidity Ambient light : 500 ~ 1000 lx Distance : 125 mm from the front edge of the scanner : 0.9 or higher... -
Page 21: Environmental Specifications
OPN-3200i Specifications Manual 9. Environmental Specifications 9.1. Temperature Scanning performance is guaranteed when the range of ambient temperature around the scanner is the following values: Operating temperature : 0 ~ 50 °C Storage temperature : -20 ~ 60 °C 9.2. Humidity... -
Page 22: Vibration Strength (In Individual Packing)
OPN-3200i Specifications Manual 9.6. Vibration Strength (in individual packing) There shall be no sign of malfunction after the following vibration test. Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6 m/s (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state. -
Page 23: Regulatory Compliance
OPN-3200i Specifications Manual 10. Regulatory Compliance 10.1. LED Safety IIEC 62471-1:2006 Exempt_Group 10.2. Product Safety EN60950-1:2005 IEC60950-1:2006 10.3. EMC R&TTE Directive ・ EN 55022:2010 ・ EN 301 489-1 V1.9.2 ・ EN 301 489-17 V2.1.1 ・ EN 300 328 V1.8.1 FCC Part 15 Subpart B Class B Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. -
Page 24: Others
2.4 GHz band ・Model Name OPA-26X1 ・Certificate Number 201-125603 11. RoHS The OPN-3200i is compliant with RoHS. RoHS: The restriction of the use of certain hazardous substances in electrical and electronic equipment, 2011/65/EU 12. Reliability MTBF (Mean Time Between Failures) 10,000 hours 13. -
Page 25: Radio Law
OPN-3200i Specifications Manual (4) Others ・Do not disassemble this product. ・Do not use this product near a radio or a TV. It may cause reception problems. ・This product may be affected by a momentary voltage drop caused by lightning. ・iPhone, iPad and iPod are trademarks of Apple Inc. -
Page 26: Product Labels
OPN-3200i Specifications Manual 14. Product Labels The product labels are affixed to the scanner as shown below. Product label Logo label Figure 11: Product Labels Product label Shows the product name, serial number, and month and year of manufacture. Logo label... -
Page 27: Packaging Specifications
OPN-3200i Specifications Manual 15. Packaging Specifications 15.1. Individual Packaging Assembled package size: 165 × 110 × 82 (WDH mm) Figure 12: Individual Packaging... -
Page 28: Collective Packaging
OPN-3200i Specifications Manual 15.2. Collective Packaging Assembled package size : 585 × 520 × 200 (WDH mm) Figure 13: Collective Packaging * ‘Ro mark’ on the boxes for the product indicates that the product is RoHS compliant declared by Optoelectronics Co., Ltd. -
Page 29: Physical Features
OPN-3200i Specifications Manual 16. Physical Features 16.1. Dimensions 56 × 113 × 132 (WDH mm / excluding protruding portion) 16.2. Weight Approx. 132 g (excluding accessories) 16.3. Mechanical Drawing (113) (56) (132) Figure 14: Mechanical Drawing... -
Page 30: Supported Symbologies
OPN-3200i Specifications Manual 17. Supported Symbologies 17.1. Default Setting The scanner is set to default settings by reading the following menu label. Default @MENU_OPTO@ZZ@SO@ZZ@OTPO_UNEM@ 17.2. Supported Symbologies 17.2.1. 1D Bar Codes Code type Default Minimum length Note ○ UPC Add-on 2... -
Page 31: Gs1 Databar, Composite Code
OPN-3200i Specifications Manual 17.2.2. GS1 Databar, Composite Code Code type Default Note GS1 DataBar ・GS1 DataBar Omnidirectional ・GS1 DataBar Truncated ○ ・GS1 DataBar Stacked ・GS1 DataBar Stacked Omnidirectional GS1 conversion (setting required) GS1 DataBar Limited ○ GS1 DataBar Expanded ・GS1 DataBar Expanded ○...
