PW-BT50AR
QUICK START GUIDE
WHAT'S IN THE BOX
PRODUCT CONNECTION AND USE
PW-BT50AR, 1 x Quick Start Guide
CHARGING A CONNECTED DEVICE
- Plug your PW-BT50AR into your car DC power outlet.
- Connect your portable device to the charger using a USB cable.
- Charging will begin automatically
PAIRING VIA BLUETOOTH
- By default, when your PW-BT50AR is turned on, it will enter
Bluetooth pairing mode automatically. (The blue coloured LED
indicator will be flashing rapidly.)
- Turn the Bluetooth feature on, from your portable device and
search for your PW-BRT50AR.
- When located, pair and connect to the device.
FM MUSIC TRANSMITTER
- Connect your portable music device via Bluetooth (see above)
- Press the FM SWITCH button on your PW-BT50AR. You can select either FM
band 101 or 107.9.
(Note: Tune into each frequency to see which band has the best reception)
- You can now playback music via the pre-selected radio station frequencies.
HANDS FREE
- Once you have paired your device using Bluetooth and to a suitable FM
radio frequency, you can use your SPK-BT50AR as a hands-free speaker.
- Incoming calls can be answered by pressing the POWER button.
- To end a call, simply press the POWER button again.
3.5MM AUDIO OUTPUT VIA YOUR PW-BT50AR
For older car radios which may not be Bluetooth enabled, audio can be streamed via Bluetooth from your portable device to
your PW-BT50AR then connected to your car radio. Simply connect a 3.5mm audio cable from your PW-BT50AR, to your car
radio 3.5mm socket and select the suitable audio source input for music playback.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Laser PW-BT50AR
Summary of Contents for Laser PW-BT50AR
- Page 1 For older car radios which may not be Bluetooth enabled, audio can be streamed via Bluetooth from your portable device to your PW-BT50AR then connected to your car radio. Simply connect a 3.5mm audio cable from your PW-BT50AR, to your car...

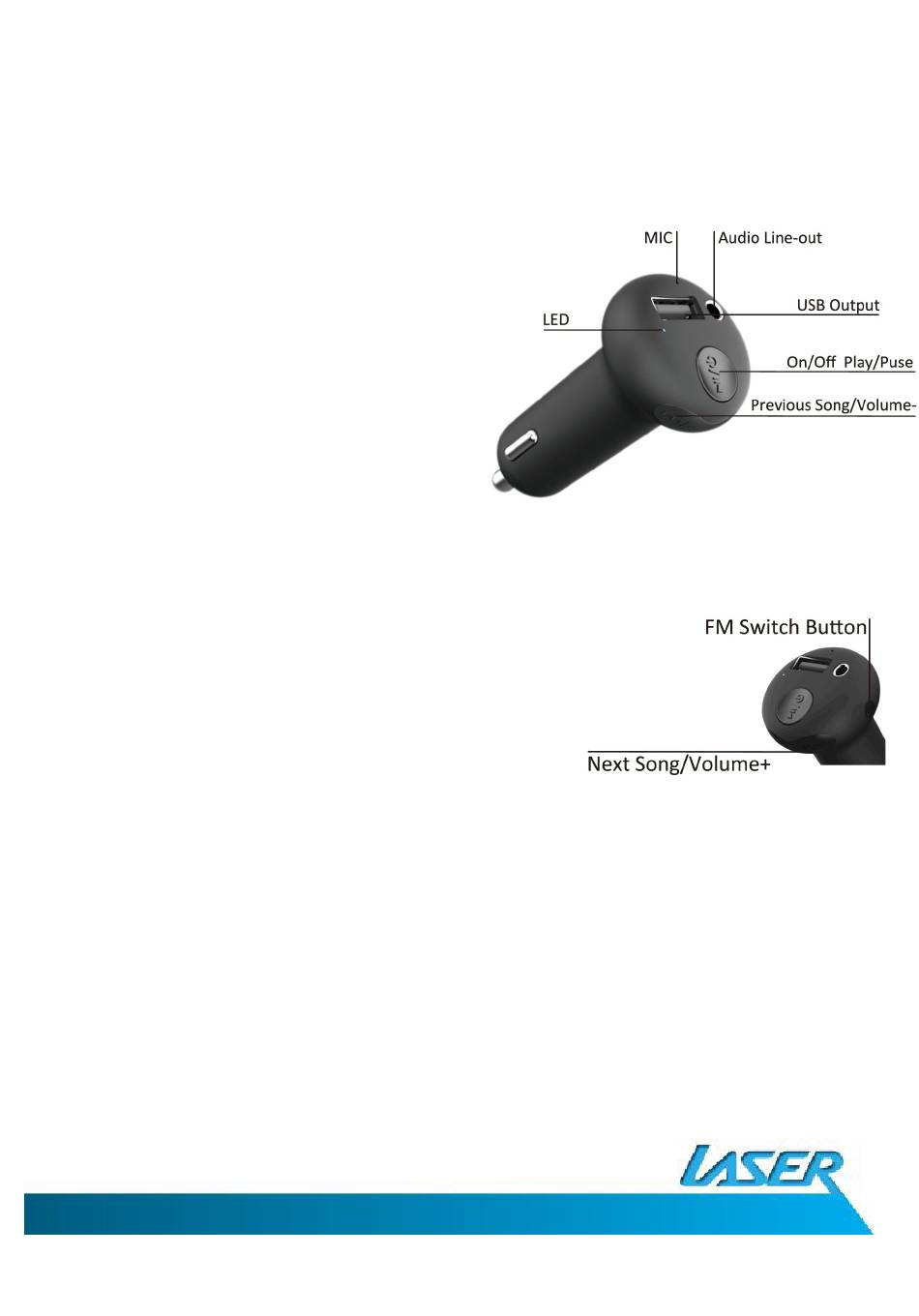

- Page 2 PW-BT50AR QUICK START GUIDE BUTTON OPERATIONS BUTTON ACTION DESCRIPTION Press to goto the previous track / - Previous Track / Decrease Volume Press and hold to reduce volume Press to goto the next track + / Increase Volume / Next Track...
