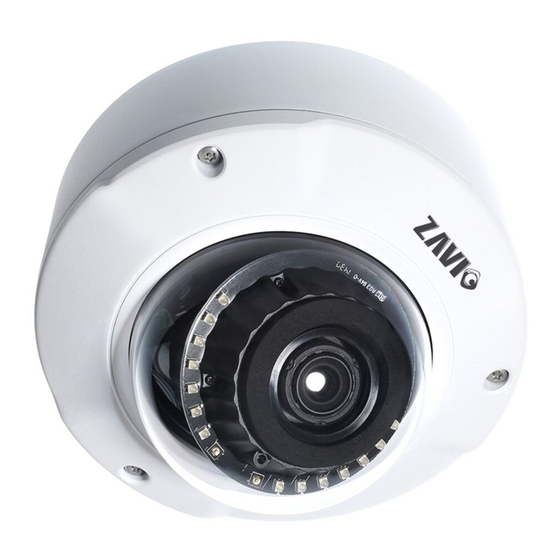

- Page 1 ZAVIO Motorized Outdoor IR Dome User Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Safety Information ....................4 Safety Notices ....................4 Electromagnetic Compatibility (EMC) ............5 2. Hardware Overview ....................6 Connectors and buttons ................6 LED Indicator ....................7 Package Contents ..................7 Minimum System Requirement ..............7 3. - Page 3 7. Setting – Playback ....................25 Client PC...................... 25 Network Storage ..................25 Edge Storage ....................26 8. Setting – Event ...................... 27 Event Server....................27 8.1.1 Event Server ................... 27 8.1.2 SD Card ....................29 Event List ....................30 8.2.1 Event List ....................
-
Page 4: Safety Information
Liability ZAVIO Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. ZAVIO Inc. makes no warranty of any kind with regard to the material contained within this document. -
Page 5: Electromagnetic Compatibility (Emc)
1.2 Electromagnetic Compatibility (EMC) FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. The limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Hardware Overview
2. Hardware Overview 2.1 Connectors and buttons... -
Page 7: Led Indicator
Blink yellow while accessing SD card 2.3 Package Contents Verify that all contents received are complete according to the list below. ZAVIO Motorized Outdoor IR Dome D8220 Quick Installation Guide (QIG) Screw pack for wall & ceiling mounting ... -
Page 8: Web Interface
3. Web Interface Available options may vary depending on the camera model. Toolbar Function Home button. Click to open camera live view. Settings button. Click to open settings page. All configurations are available on this page. Pause button. Click to pause the live video stream, click again to resume pause. - Page 9 Glass demister button. Click to turn on the camera’s cooling/heating system to demist the water vapor on the front glass. Snapshot button. Click to take a snapshot of the video. When selected, a window will prompt showing the captured frame, click Save Image to complete process.
-
Page 10: Settings - Information
4. Settings – Information The information page provides a complete overview of the status of your network camera. -
Page 11: Settings - Basic Setup
5. Settings – Basic Setup The basic setup page allows you to manage the following: User accounts Network parameters Date and time configurations Video settings Audio settings 5.1 Account The network camera allows the creation of up to 10 user accounts with different privilege levels. There are three user levels: viewer, operator and administrator. -
Page 12: Network
5.2 Network By default the camera is set to automatically obtain the necessary IP information from the DHCP server (e.g. the router). However, you may manually change the IP address and other related settings. 5.2.1 TCP/IP Internet Protocol Version 4(TCP/IPv4): Obtain an IP address automatically (DHCP) –... -
Page 13: Pppoe
PPPoE 5.2.2 PPPoE: Authentication Type – PAP or CHAP IP address – Displays the current IP address obtained from the Internet Service Provider (ISP). It will display 0.0.0.0 if the camera is not connected to the Internet via PPPoE. User ID – Enter the user ID for your DSL service. The user ID is provided by your ISP. Password –... -
Page 14: Date Time
5.3 Date Time Current Date/Time: Current Date/Time – Displays the camera’s current date and time. PC Clock – Displays the date and time of the computer you are currently using. Date/Time Format – The format in which the date and time is displayed on the live video. Synchronization Method: Keep current setting –... -
Page 15: Video
5.4 Video Available options may vary depending on the camera model. Video Setting 5.4.1 Rotated: Mirror/Flip – Allows users to mirror and/or flip the image. Image Rotated – Allows users to rotate the image by 90°, 180° or 270°. Image: Video Clip Format –... -
Page 16: Profile
Profile 5.4.2 The network camera allows the creation of video streaming profiles. Users must define the video and audio setting for each profile. Click Add to create a new profile. To edit or remove, select a profile from the list and click Edit or Remove as needed. Video Setting: Encoding –... -
Page 17: Day / Night
/ Night 5.4.3 This menu may vary depending on your camera model. If your camera is not equipped with IR LEDs, some options will not be available. Day/Night: IR Cut Filter Mode – Choose between auto, night mode, day mode and schedule. By selecting Auto the camera will automatically remove the IR cut filter based on the predefined threshold. -
Page 18: Audio
5.5 Audio This menu will be available only if your camera has audio support. Audio Input: Audio Input Gain – Select the microphone input gain value from the drop-down menu. Audio Encoding – Select the encoding from the drop-down menu. Audio Output: Audio Output Gain –... -
Page 19: Setting - Live View
6. Setting – Live View Access this menu to configure the live view, including video, audio, camera and PTZ settings. Available options may differ depending on your camera model. 6.1 Video Refer to section 5.4. 6.2 Audio Refer to section 5.5. 6.3 Camera Setting 6.3.1 Image Setting... - Page 20 Available options may differ depending on your camera model. Image Enhancement: Image enhancement allows you to adjust the brightness, contrast, saturation and sharpness of the video. Click on Video to preview the adjusted settings result. White Balance: Color tone – Move the bar to the value that can best reflect natural colors. Auto White Balance –...
-
Page 21: Lens Setting
6.3.2 Lens Setting This menu is only available for zoom modules and motorized cameras. Focus: Zoom – Click on the arrows to zoom in or out. Focus – Click on the arrows to adjust focus. Smart Focus: Select a focus method and click Re-Focus to allow the camera to automatically find the optimal focus value. -
Page 22: Roi
6.3.3 ROI: ROI (Region of Interest) is a feature created to strengthen the image clarity in key regions of a scene. To frame a key region, please fill in the name and other information requested on the right side of the screen and then click add. -
Page 23: Ptz Setting
6.4 PTZ Setting This menu is only available for cameras that support RS-485. 6.4.1 Patrol Setting Note: Please connect the RS-485 before configuring this page. Control Panel: Click on the arrows to move towards the direction you want. -
Page 24: Ptz Control
Preset Position: To create a new preset position, fill in a name and then click add. Click Go to preview. Guard Tour: To create a new guard tour, click add button and then fill in a name and add preset positions desired. -
Page 25: Setting - Playback
7. Setting – Playback The camera has embedded playback feature, allowing users to playback videos from a client PC, network storage server, or camera’s edge storage. 7.1 Client PC This section allows users to play recorded videos stored on the client PC through the web, eliminating any codec compatibility issue with installed video players. -
Page 26: Edge Storage
Select the video you would like to playback. Below is playback window of an event recording. This feature is only available on Internet Explorer. Item Description Item Description Move one folder up Select all items in the folder Refresh the view Playback the selected video Delete the selected file Download selected item to your computer. -
Page 27: Setting - Event
8. Setting – Event Users may assign an action to the camera when an event occurs. This section will show you how to set up event servers, event list, motion detections and schedule. 8.1 Event Server 8.1.1 Event Server Click the add button to create a new server. A window will prompt requesting the server’s information. First fill in the name of the server and then select the server type. - Page 28 Adding a SMTP Server Mail Server – Insert mail server’s address. Server Port – Standard value is 25, but your server may be using different values. Authentication – Enable if server requires authentication in for sending email. Send mail from – Insert the address from which the camera will send the emails.
-
Page 29: Sd Card
Media Settings: Define the settings related to the media to be stored, such as the media type and the file’s naming rule. 8.1.2 SD Card This option is only available if your camera has built-in SD or micro SD card slot. Please make sure that the memory card is inserted into the camera before proceeding (see QIG for details on how to insert memory card). -
Page 30: Event List
8.2 Event List Once you have finished creating the event server, you may proceed with setting up the events. Note that available options will depend on your camera model. 8.2.1 Event List Click add button to create new event. Trigger: Select a trigger type from the drop-down list. - Page 31 Action: Define the action to be done when the camera has been triggered. Send Image – Instructs the camera to send out images. You will need to specify whether you want to use FTP, network storage or SD card. Make sure that the servers are set up before using it. Send Notification –...
-
Page 32: Scheduled Recording
8.2.2 Scheduled Recording Scheduled Recording: This section allows users to configure the recordings by assigning a schedule and the server to store the video, as well as specify the file size per recording. Please make sure that the event server is configured. -
Page 33: Motion Detection
8.3 Motion Detection The motion detection technology relies on a frame by frame comparison of the captured video, allowing users to set up alarms or other actions upon the camera’s movement detection on the predefined area. This section is for users to set up motion detection areas. To configure action for the motion detection, please refer to Event List (section 8.2). -
Page 34: Schedule
8.4 Schedule This section allows you to set up individual schedules to apply on event and recording. There are three default schedules that can be modified but not deleted. Click the add button to create a new schedule. A window will prompt requesting you to define the name and the time of the schedule. -
Page 35: Setting - System
9. Setting – System System menu provides access to a variety of settings related to the camera’s system, such as maintenance, date time, security, basic and advanced network settings, digital I/O, PoE, LED and system log. Maintenance Restart: This feature allows you remotely restart the camera, even set a schedule for the camera to automatically restart. -
Page 36: Date Time
Having the camera’s firmware updated will allow you to enjoy the camera at its best, as new firmware often enhance the functionality of the camera and solves known-issues. You may check availability of your camera’s firmware on the download section of ZAVIO’s website. Before updating the firmware version, please follow below instructions: ... -
Page 37: Security
Security 9.3.1 Account Refer to section 5.1 9.3.2 IP Address Filter When enabled, users can create lists of IP address to be allowed or denied to access the camera. -
Page 38: Https
9.3.3 HTTPS Create / Install: Create a self-signed certificate for HTTPS to recognize. Installed Certificate: Display or remove the properties of the installed certificate. HTTPS Connection Policy: Set HTTPS connection policy for different level of users. To use the HTTPS encryption, please set up “Create self-signed certificate”... -
Page 39: Network Basic
Network Basic 9.4.1 TCP / IP Refer to section 5.2.1 9.4.2 PPPoE Refer to section 5.2.2... -
Page 40: Network Advanced
Network Advanced 9.5.1 RTSP General: RTP Port Range – Default value is 5000 ~ 7999 and can be changed from 1124 to 65534. RTSP Port – Default value is 554 and can be changed from 1124 to 65534. RTSP Configuration: This option allows you to set up the URL for each profile and define whether or not you want to enable authentication. -
Page 41: Upnp
UPnP in the local network (e.g. if your computer uses operating system Windows XP, Vista, 7 or 8, it will automatically detect the presence of ZAVIO camera on the local network and allow you to connect to the device instantly). -
Page 42: Bonjour
9.5.3 Bonjour Just like UPnP, Bonjour is a service that helps to find the camera on the network. Bonjour is available for Windows, but is more commonly used for Mac OS. This feature will be enabled by default. 9.5.4 DDNS Skip this section if you are planning to connect to camera only through the local network (and not from any remote connection). -
Page 43: Digital I/O
Dynamic DNS allows you to create a domain name for your network, facilitating the access to the camera from a remote site. To use the DDNS function, you will need to: 1. Create a DDNS hostname with a DDNS service provider. 2. -
Page 44: Poe
Configure your camera’s digital I/O on this page. This section shows the digital I/O current status and allows you to define its normal state (non-alert state). Options available depend on your camera model. The system automatically detects PoE mode. 802.3af disables the activation of the fan and heater when the IR LEDs are on, even if the temperature reached the trigger condition. -
Page 45: System Log
System Log The system records all the actions in its internal memory and displays it on the Current Log, but due to limited memory the logs will be overwritten. Enable remote log if you wish to keep all the logs. Enable Remote Log: Server Name –...
