AXIS Q6054-E Series

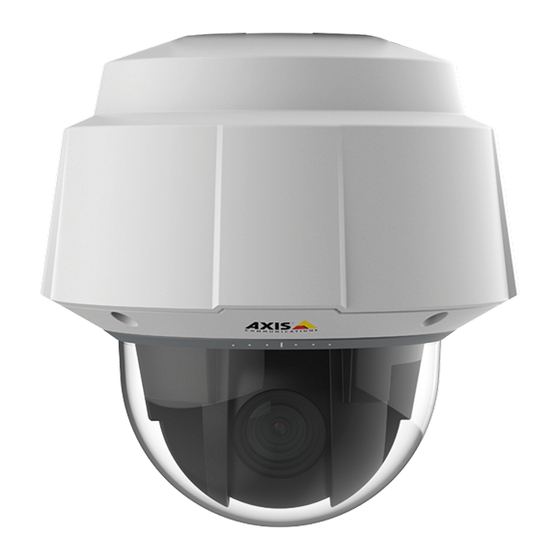

AXIS Q6054-E Dome Network Camera
AXIS Q6054-E Mk II Dome Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q6054-E and is the answer not in the manual?

Questions and answers

Summary of Contents for Axis Q6054-E

  • Page 1 AXIS Q6054-E Series AXIS Q6054-E Dome Network Camera AXIS Q6054-E Mk II Dome Network Camera User Manual...
  • Page 2 AXIS Q6054-E Series Product overview Product overview NOTICE TICE TICE Make sure the dome is attached in operation mode, otherwise focus may be affected. Hook for safety wire Network connector (High PoE) Ground screw Unit holder (3x) Part number (P/N) & Serial number (S/N)
  • Page 3: How To Access The Product From A Browser

    If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at axis.com/support...
  • Page 4: About The Product's Built-In Help

    AXIS Q6054-E Series Setup The default root account has full privileges and should be reserved for administrative tasks. Always create a user account with limited privileges for daily use. This reduces the exposure of the administrative account. 1. Make sure to follow the instructions about secure passwords, see About secure passwords on page 3 .
  • Page 5: How To Focus Faster Using Focus Recall Areas

    AXIS Q6054-E Series Setup • If you need full control of all parameters, mostly useful for scenes with little change in lighting, select Manual. How to focus faster using focus recall areas To save the focus settings at a specific pan/tilt range, add a focus recall area. Each time the camera moves into that area it recalls the previously saved focus.
  • Page 6: How To Handle Scenes With Strong Backlight

    Image with WDR. Note If you use WDR, you may experience some WDR artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr Overlays About overlays Overlays are superimposed over the video stream. They are used to provide extra information during recordings, such as a timestamp, or during product installation and configuration.
  • Page 7: How To Display The Pan Or Tilt Position As A Text Overlay

    3. Choose alignment, text size and appearance. 4. Include the text overlay. 5. Go to System > Events > Action rules. 6. Create an action rule with AXIS Video Motion Detection as trigger. From the list of actions, select Overlay text. 8. Type “Motion detected”.
  • Page 8: Streaming And Storage

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.
  • Page 9 4. Go to Settings > System > Events and add an action rule. 5. Type a name for the action rule. 6. From the list of triggers, select Applications and then select AXIS Video Motion Detection (VMD). 7. From the list of actions, select Record video.
  • Page 10: How To Direct The Camera To A Preset Position When The Camera Detects Motion

    5. Go to Settings > System > Events > Action rules and add an action rule. 6. Type a name for the action rule. 7. From the list of triggers, select Applications and then select AXIS Video Motion Detection (VMD). 8. From the list of actions, select PTZ Control and then select Preset Position.
  • Page 11: How To Record Video When The Camera Detects Impact

    Applications About applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com Note •...
  • Page 12 To find the latest firmware and the release notes, go to axis.com/support/firmware 1. Download the latest firmware file to your computer, available free of charge at axis.com/support/firmware 2. Log in to the product as an administrator.
  • Page 13: Technical Issues, Clues And Solutions

    Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the...
  • Page 14: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
  • Page 15: Led Indicators

    Resetting the product to factory default settings. See How to reset to factory default settings on page 12. • Connecting to an AXIS Video Hosting System service. To connect, press and hold the button for about 3 seconds until the status LED flashes green.
  • Page 16 To comply with the IP66-rated design of the camera and maintain the IP66 protection, the supplied RJ45 Push-pull Connector (IP66) shall be used. Alternatively, use the RJ45 IP66-rated cable with premounted connector which is available from your Axis reseller. Do not remove the plastic network connector shield from the camera. NOTICE...
  • Page 17 User Manual Ver. M3.2 AXIS Q6054-E Series Date: September 2017 © Axis Communications AB, 2017 Part No. 1755312...

This manual is also suitable for:

Q6054-e mk ii
