Manual Instructions
AEPO-24 , AEP0-24 S , AEPO 36, AEPO 36 S
Manual instructions
EN
Installation and Operation
Manual de instrucciones
ES
Uso y mantenimiento
Bedienungshinweise
DE
Installation und Betrieb
Ręczny
PL
Obsługa i konserwacja
PIZZA OVEN
––
Manueltalimatları
TK
Kurulum ve Çalıştırma
Manuel d'instructions
FR
Installation et fonctionnement
Manual do instruções
PT
Instalação e Operação
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ASBER AEPO-24
Summary of Contents for ASBER AEPO-24
- Page 1 PIZZA OVEN Manual Instructions AEPO-24 , AEP0-24 S , AEPO 36, AEPO 36 S –– Manual instructions Manueltalimatları Installation and Operation Kurulum ve Çalıştırma Manual de instrucciones Manuel d’instructions Uso y mantenimiento Installation et fonctionnement Bedienungshinweise Manual do instruções Installation und Betrieb Instalação e Operação...
- Page 2 1.1 IMPORTANT SAFETY INFORMATION All equipment manufactured by ASBER CORP. is for use with the type of gas specified on the rating plate and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1 (latest edition) FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
-
Page 3: Table Of Contents
INDEX IMPORTANT SAFETY INFORMATION ....................... ii MACHINE INTRODUCTION ............................4 INTRODUCTION TO MACHINE & MODELS ....................4 INSTALLATION ................................4 Transport, handling, unpacking, location ....................4 Manufacturer’s identification label description ..................5 Installation and assembly ........................5 2.3.1 UNCRATING .............................6 2.3.2 INSTALLATION OF LEGS (IF APPLICABLE) ..................6 Gas Connections ............................6 2.4.1 MANUAL SHUT OFF VALVE ......................7... -
Page 4: Machine Introduction
1.2 INTRODUCTION TO MACHINE & MODELS All equipment manufactured by ASBER. are for use with the type of gas specified on the rating plate and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1 (latest edition) INSTALLATION 2.1 Transport, handling, unpacking, location. -
Page 5: Manufacturer's Identification Label Description
When communicating with factory about a unit or requesting for special parts or information, Rating plate data is essential for proper identification. ASBER COOKING APPLIANCES MUST BE CONNECTED ONLY TO THE TYPE OF GAS IDENTIFIED ON THE RATING PLATE Model... -
Page 6: Uncrating
2.3.1 UNCRATING Cut and remove the outer packaging. Cut the (4) clamps that hold the equipment to the skid lift the unit off the skid. 2.3.2 INSTALLATION OF LEGS (IF APPLICABLE) LEGS ASSEMBLY: The Appliance could be mounted on a table or counter noncombustible. ... -
Page 7: Manual Shut Off Valve
2.4.2 PRESSURE REGULATOR Commercial cooking equipment must have a pressure regulator on the incoming service line for safe and efficient operation; the gas pressure regulator supplied by ASBER must be installed at the gas inlet of each piece of equipment. - Page 8 Failure to install the pressure regulator will void the appliance warranty 2.4.3.1 L.P. gas conversion: Step one; Remove oven bottom Step 2; Remove deflector Step 3; Take off top shield from oven Step 4; Pull of oven burner Step 5; Retire and change orifice for L.P.
-
Page 9: Location
Assembly all components, reverse these instructions. 2.5 Location • Installation of the equipment should be performed by qualified, certified, and authorized personnel who are familiar and experienced with local installation codes. • Before Installation please read instructions completely and carefully. •... -
Page 10: Operation
OPERATION 3.1 General information. 3.2 Lighting Instructions. 3.3 Daily Shut-Down. 3.1 General information. Operation of this equipment must be performed by qualified or authorized personnel who have read and are familiar with the functions of the equipment. WARNING Hot surfaces can cause severe burns. Use caution when operating the oven. Do not attempt to move the oven when is hot. -
Page 11: Maintenance
MAINTENANCE 4.1 Cleaning 4.1 CLEANING For continued performance efficiency and longevity of your Fryer it is essential to carry out a good maintenance program. 4.1.1 DAILY OVENS On initial installation, turn the oven to 250°F degrees and operate for about 1 hour, then reset the thermostat to its maximum and operate for another hour. - Page 12 4.1.3 Take off the oven door: STEP 1.- Place in this way the assembler component in both hinges (you can find 2 pieces of it in carton legs box) STEP 2.- Hold on both hinges of door with your hands. STEP 3.- Raise the door until it forms a 45 degrees’...
-
Page 13: Trouble Shooting
TROUBLE SHOOTING PROBLEM PROBLEM CAUSE SOLUTION BURNER AND/OR PILOTS GAS SUPPLY TO COOKING TURN ON GAS SUPPLY NOT TURN ON EQUIPMENT IS OFF UNIT PRODUCING CARBON GAS TYPE VERIFY CORRECT GAS DEPOSITS GAS SUPPLY PRESURE CONTACT LOCAL GAS SUPPLIER PRIMARY AIR NOT ADJUST AIR SHUTTER ADJUSTED PROPERLY ORIFICE TOO BIG... -
Page 14: Warranty
ASBER shall not be liable whether in contract or in tort or under any other legal theory for loss of revenue or profit, or for any substitute use or performance or for incidental, indirect, special or consequential damages, or for any other loss or cost of similar type. - Page 15 ASBER USA ASBER MEXICO 13105 NW 47 Circuito Exportación 201 Opa-Locka, FL 33054 Parque Industrial Tres Naciones Phone: +1 (305) 779 – 0170 CP. 78395 San Luis Potosí, Fax: +1 (305) 779 – 0173 Phone: +52 (444) 137 0500 ...
Need help?
Do you have a question about the AEPO-24 and is the answer not in the manual?
Questions and answers

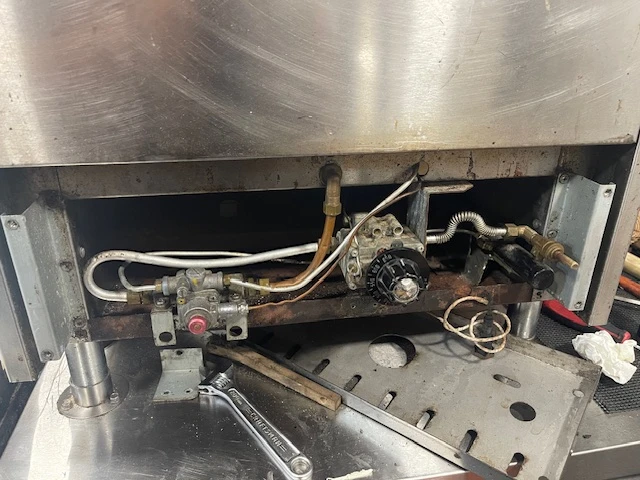

Hi where can I get replacement parts like thermostat and gas valve? for my AEPO 24" Pizza Oven
Replacement parts like a thermostat and gas valve for the ASBER AEPO-24 pizza oven can be obtained through an ASBER Authorized Service Center. Unauthorized repairs or parts are not covered under warranty.
This answer is automatically generated
@Mr. Anderson Thanks would you happen to know any in the Cape Coral, Florida area?
