About the CB-As Drinking Water System
•
The CB Tech CB-As Drinking Water System (CBAS) is designed for use
on the countertop next to the sink, below the sink, or inline with other
devices.
•
If installation or operation assistance is required, please contact your
Dealer. If Dealer is unavailable, please contact CB Tech at 866.622.9373.
Before You Begin
Please read this manual before proceeding with the installation and use
of your system. Installation, operation, and maintenance requirements are
essential to the performance of your system – failure to follow any instructions
or operating parameters contained herein may lead to product damage
or product failure.
CB-As
Installation Guide
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CB Tech CB-As
Summary of Contents for CB Tech CB-As
- Page 1 CB-As Installation Guide About the CB-As Drinking Water System • The CB Tech CB-As Drinking Water System (CBAS) is designed for use on the countertop next to the sink, below the sink, or inline with other devices. • If installation or operation assistance is required, please contact your Dealer.
- Page 2 • Replacement filters can be purchased directly from your Dealer. • Check for compliance with any state or local laws and regulations before use. • If you are installing with a Below Sink Kit (CBK1), proceed to section Below Sink Installation (Pg •...
- Page 3 1/2” slip joint nut water supply line with riser Adapta Valve in 3/8” tubing configuration from faucet Adapta Valve 3/8” configuration threading adapter angle stop valve v-band knob Adapta Valve 1/2” configuration water supply line with threading adapter Adapta Valve in 1/2” configuration riser angle stop valve...
-
Page 4: Recommended Installation Tools
Below Sink Kit Components Included with the Below Sink Kit are the following components: Adapta Valve: Used to connect the DWS to the cold water line below the sink. The 1/4” clear tubing connects the Adapta Valve to the 1/4” inlet fitting on the DWS housing. - Page 5 If you have an extra hole in your sink for a spray hose, you may also choose to disconnect the spray hose and use that existing hole for the CB-As faucet. Use the hammer to gently tap the center punch on the sink location where the hole is to be drilled.
- Page 6 CAUTION: Granite surface materials are extremely hard and can easily crack or chip. Use extreme caution when drilling. CB Tech is not responsible for any damages resulting from faucet installation. Place a towel or basin under the sink, directly under the location of the intended faucet hole.
- Page 7 Complete Faucet Assembly with Blue Tubing (MC652) small black washer cover plate countertop large black washer plastic washer lock washer wing nut blue tubing...
- Page 8 Installing the Capacity Monitor Faucet NOTE: In addition to the blue plastic tubing attached to the faucet. A separate piece of blue tubing is included for connection between the housing OUTLET port and the Filter Monitor Unit INLET port. Faucets with Capacity Monitor Include: Spout Faucet handle...
- Page 9 From the sink / countertop: Place the large rubber washer (#9) over the faucet hole. Place the LED Display Plate (#7) on top of the large rubber washer. Feed the attached black cable down through the hole in the sink. Rotate the LED Display Plate so that the indicator light will be easy to see.
- Page 10 Complete the installation after connecting the tubing. Connect the Tubing from the Housing to the Filter Monitor Unit NOTE: Complete this step only after the CB-As tubing has been connected Connect the Tubing to the in section Housing (Pg 14).
- Page 11 Open the Filter Monitor Unit (FMU) and pull out the battery holder. Remove and discard the used batteries. Turn on the CB-As faucet and let the water flow for 2 to 3 seconds, then turn off the faucet. Insert two (2) AA batteries into the battery holder, making sure to match the + and –...
- Page 12 1/2” slip joint nut Adapta Valve riser 3/8” slip joint nut angle stop valve Threading Adapter Water supply line before installation Adapta Valve 1/2” configuration riser threading adapter Adapta Valve 3/8” riser configuration threading adapter angle stop valve stop valve angle water supply line with Adapta water supply line with Adapta...
- Page 13 Using the 1/2” configuration: The 1/2” configuration can be used at either the top of the riser at the faucet pipe or at the bottom of the riser at the angle stop valve. Install the 1/2” configuration at the top of the riser on a water supply line that does not have a slip joint nut at the angle stop valve.
- Page 14 Connect the Tubing to the Housing Below Sink Kit Components Connect the included Inlet adapter (MC738) to the system housing’s labeled Inlet port. Rotate the adapter clockwise, first by hand, then using a wrench, to tighten onto the system. Connect the included Outlet adapter (MC741) to the system housing’s labeled Outlet port.
- Page 15 Fully insert the tubing into the adapter on the INLET port of the system housing; the tubing should be inserted 5/8” into the adapter. NOTE: When pushing the tubing into the adapter, you will encounter some resistance. This does not mean that the tube is fully inserted. Continue to push firmly until the tubing is inserted as far as possible (roughly 5/8”...

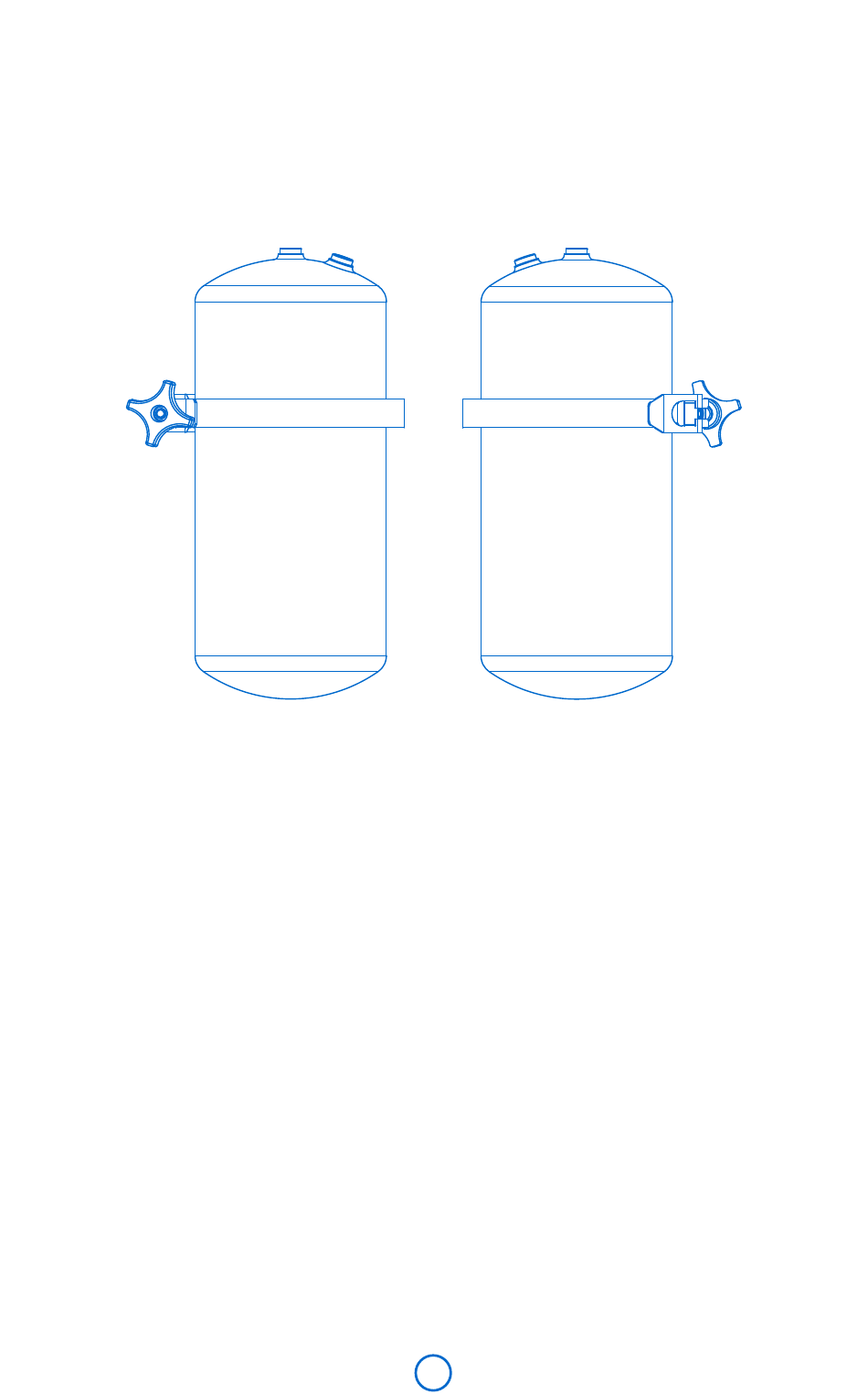

- Page 16 Use the included screws and a Phillips-head screwdriver to fasten the mounting bracket to the wall, ensuring it is oriented in an upright position. The bracket is in an upright position when the larger holes on each flat mounting plate on the sides of the bracket are at the bottom. Attach the system to the bracket: Insert the system housing into the two metal bands so that the metal bands wrap around the top half of the housing, above the...
- Page 17 Acrylic Base: Used to hold the CB-As upright on the countertop. The CB-As is placed on the acrylic base with the ports and tubing facing down, so that the tubing can feed through the openings at the side of the acrylic base.
- Page 18 existing *MC106 faucet *MC107 swivel attachment bypass ring lever *MC108 hose *MC257 diverter valve Diverter Valve Diverter Valve Attachment *MC700 Adapters with adapter Many installations do not Attachment require an adapter Connect the Diverter Valve Remove the aerator or screen (if present) from the end of the faucet. If facing the open end of the spout, rotate the aerator counter-clockwise to loosen and remove.
-
Page 19: Inline Installation
Proceed to section Inline Installation The CB-As can be used inline for connection to refrigerators, water coolers, or ice makers, so that all of the water from the cold water outlet or faucet is filtered. CB Tech recommends that a professional plumber install the system... - Page 20 Angle Stop Valve or water shutoff valve counter-clockwise to engage the flow of water through the pipes. Turn the handle on the CB-As faucet to start the flow of filtered water. iii. Allow water to flow through the DWS and the faucet for 30 minutes.
-
Page 21: Warranty
This limited warranted may not be altered, varied, or extended except by a written instrument executed by CB Tech. The remedy of repair or replacement as provided under this limited warranty is exclusive. In no event... -
Page 22: Troubleshooting
Troubleshooting Bypass lever – sticking (hard to move) Minerals in the water can build up on the diverter valve, causing the bypass lever to stick and preventing the buttons from being pressed easily. A sticking bypass lever can be solved by lubricating it or by dissolving the mineral deposits. - Page 23 Notes...
- Page 24 7251 Cathedral Rock Drive, Las Vegas, NV 89128 866.622.9373 • www.CarbonBlockTech.com 600-60-6046/1116...
