Marantz SR6005 Model Information

Integrated network av receiver
Hide thumbs Also See for SR6005:

Advertisement

Quick Links

Download this manual
Model Information
Index
Front Panel
Rear Panel
Remote Control
Warranty
Reset Procedure
Accessories
Protection History
Display Mode
Upgrades/Updates
Product Specifications
I/R Codes
NOTE:
This edition is missing the link to the IR codes................................................................................ 12/14/2016

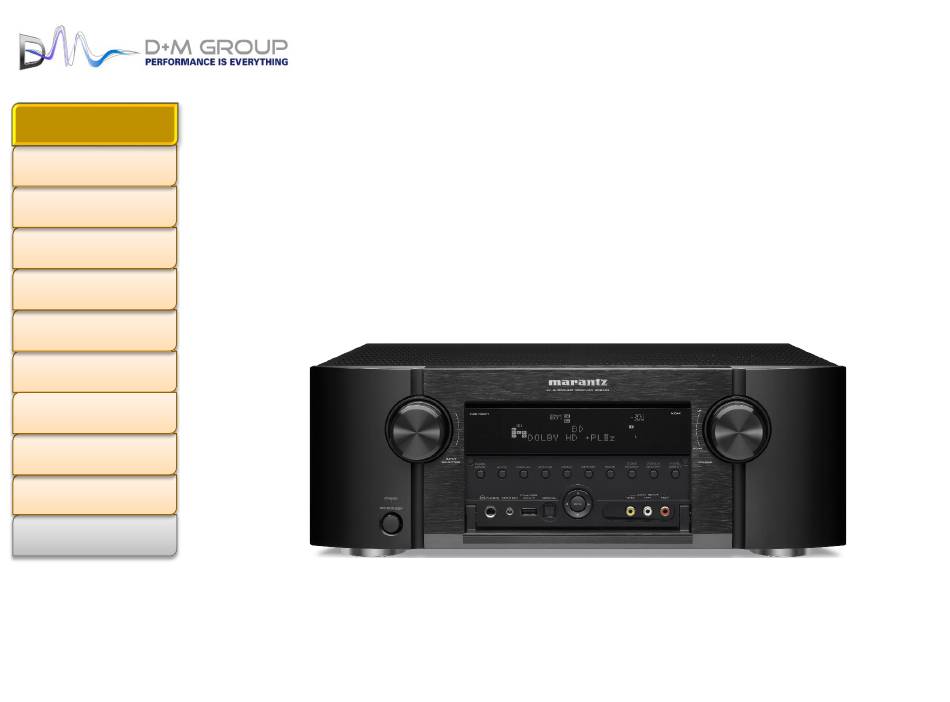

MODEL:
Model Information
INTEGRATED NETWORK AV RECEIVER
SR6005
MI121416E3-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR6005 and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz SR6005

Summary of Contents for Marantz SR6005

  • Page 1 MODEL: SR6005 Model Information Index Model Information Front Panel INTEGRATED NETWORK AV RECEIVER Rear Panel Remote Control Warranty Reset Procedure Accessories Protection History Display Mode Upgrades/Updates Product Specifications I/R Codes NOTE: This edition is missing the link to the IR codes…………………………………………………………………….. 12/14/2016...

  • Page 2: Front Panel

    Front Panel (1 of 2 Power operation button (ON/STANDBY) VOLUME control knob Turns power to this unit on and off (standby). Remote control sensor Power indicator M-DAX indicator Door Display When you are using buttons and/or terminals behind the door, press the PURE DIRECT indicator bottom of the door to open it.

  • Page 3: Cursor Buttons

    Front Panel With The Door Open (2 of 2) Headphones jack AUTO button When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors. DISPLAY button NOTE: To prevent hearing loss, do not raise the volume level excessively STATUS button when using headphones.

  • Page 4: Main Display

    Main Display Input signal channel indicators Sleep timer indicator This lights when the sleep mode is selected. These light when digital signals are input. ZONE2 indicator When playing HD Audio sources, the “EXT1” indicator lights when a This lights up when ZONE2 (separate room) power is turned on signal from an extension channel (a channel other than the front, Input mode indicators center, surround, surround back or LFE channel) is input.

  • Page 5: Rear Panel

    Rear Panel Video connectors HD RADIO antenna terminals FLASHER IN jack Analog audio connectors Used when using a control BOX or other such control devices to PRE OUT connectors control this unit. 7.1ch input connectors (7.1CH IN) REMOTE CONTROL connectors Speaker terminals (SPEAKER SYSTEMS) M-XPort connector AC inlet (AC IN)
  • Page 6 Remote Control (1 of 2) INPUT buttons () DISPLAY/Tuner mode (T.MODE) button SHIFT/TOP MENU button Cursor buttons (uio p) MENU button MACRO button Display Number buttons 1) LEARN indicator Clear button (CLR) 2) MACRO indicator 3) Information display TUNING buttons (+, –) 4) Indicator Remote control signal transmitter SOURCE power button...
  • Page 7 Remote Control (2 of 2) STEREO button AUTO buttons MULTEQ button Audio delay button (A.DELAY) M-DAX button Channel level button (CH LVL) SLEEP button INSERT button DELETE button Pure direct button (P.DIRECT) REPEAT button RANDOM button Dynamic EQ/Dynamic Volume button (DYN EQ/VOL) Video select button (V.SEL) TV operation buttons (TV POWER / INPUT) CHANNEL/PRESET buttons (+, –)
  • Page 8 Length of Non-Transferable Warranty This warranty on your Marantz product which is distributed and warranted by Marantz America Inc. remains in effect for the following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA), LLC DEALER.
  • Page 9 How you can get service  If your unit needs service, contact Marantz customer service by calling 201-762-6666. We will advise you of the name and location of one or more authorized Marantz service stations from which service can be obtained. Please do not return your unit to the factory without prior authorization.
  • Page 10 Reset Perform this procedure if the display is abnormal or if operations cannot be performed. When the microprocessor is reset, all the settings are reset to their default values. Various setting details can be saved and reset on this device. If setting details are saved before returning to the default values, after returning to the default settings, setting details can be returned to the same values as before returning to the defaults.
  • Page 11 Accessories Sound Remote Control Sound Calibration (RC011SR) Calibration Microphone Microphone Stand 307010077005M Antenna AM FM Indoor Power Cord) Loop Wire Antenna 963116011270S 00D9600187308 $5.99 90M-ZC000470R $30.64 Safety CD ROM Instructions Owner’s Manual Warranty Notes on Radio Quick Start (For North Guide America Only) HOME...
  • Page 12 FAQ’s ( 1 of 2) HOME ACCESSORIES FAQ’s 2...
  • Page 13 FAQ’s (2 of 2) HOME FAQ’s 1 UPGRADE...
  • Page 14 Dolby Atmos and DTS:X surround sound technologies dispense with channel-based coding in favor of object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The SR6005, features the ability to connect a 5.1 surround sound speaker system and 4 additional overhead speakers (or 4 additional Dolby Atmos elevation speakers) for the ultimate home cinema experience.
  • Page 15 Note: This will also check the time it will approximately take to complete the update. To check to see if an update or upgrade is available for your SR6005 and also to download the latest version of firmware, click on the following link: http://www.us.marantz.com/us/support/pages/productupdates.aspx...
  • Page 16 Specifications – Audio Section Audio section Front 110 W + 110 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) Center 110 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.) Rated output Surround 110 W + 110 W (8 Ω/ohms, 20 Hz –...
  • Page 17 Specifications - Video section, Tuner Section, General Section Video section Input/output level and impedance 1 Vp-p, 75 Ω/ohms Standard video connectors 5 Hz -10MHz, 0, - 3dB (when “Video Convert” set Frequency response to “OFF”) Y signal 1 Vp-p, 75 Ω/ohms Input/output level and impedance PB/CB signal 0.7 Vp-p, 75 Ω/ohms...
  • Page 18 Specifications – Dimensions, Weight Dimensions section (Unit : inch/mm) Weight: 26 lbs 2.1 oz (11.8 kg) HOME SPECIFICATIONS - SPECIFICATIONS - VIDEO – Protection History Display AUDIO TUNER – GENERAL Mode (Front Panel Buttons)
  • Page 19 SR6005 - Protection History Display Mode (1 of 3) Model Information Index Protection History Mode records and displays an event in which the THERMAL, CURRENT, ASO or DC protection was activated. CURSOR  POWER STATUS ENTER Procedure to enter the “Protection History Display Mode”.
  • Page 20 SR6005 - Protection History Display Mode (2 of 3) Model Information Index 1. If no protections have occurred, “No Protect” is displayed 2. if last protection was ASO, “ASO” is displayed. Cause: A short circuit occurred between the speaker terminals, or speakers with an impedance outside the rating were connected. If the power is turned on during this abnormality, protection is activated after around 5 seconds and the power is turned off.
  • Page 21 SR6005 - Protection History Display Mode (3 of 3) Model Information Index Clearing the Protection History If the unit is in “Protection History Display Mode”, just press and hold the “ENTER” button for 3 seconds. Note: If you do not mind erasing your settings from this unit, you can also “Initialized/Micro Reset the unit to clear the Protection History from the unit’s...
  • Page 22 The End NOTE: This edition is missing the link to the IR Codes……………………………………………………………………...12/13/2016 HOME...
