MTD J15 Operating Instructions Manual

Hide thumbs Also See for J15:
Table of Contents

Advertisement

Quick Links

Download this manual

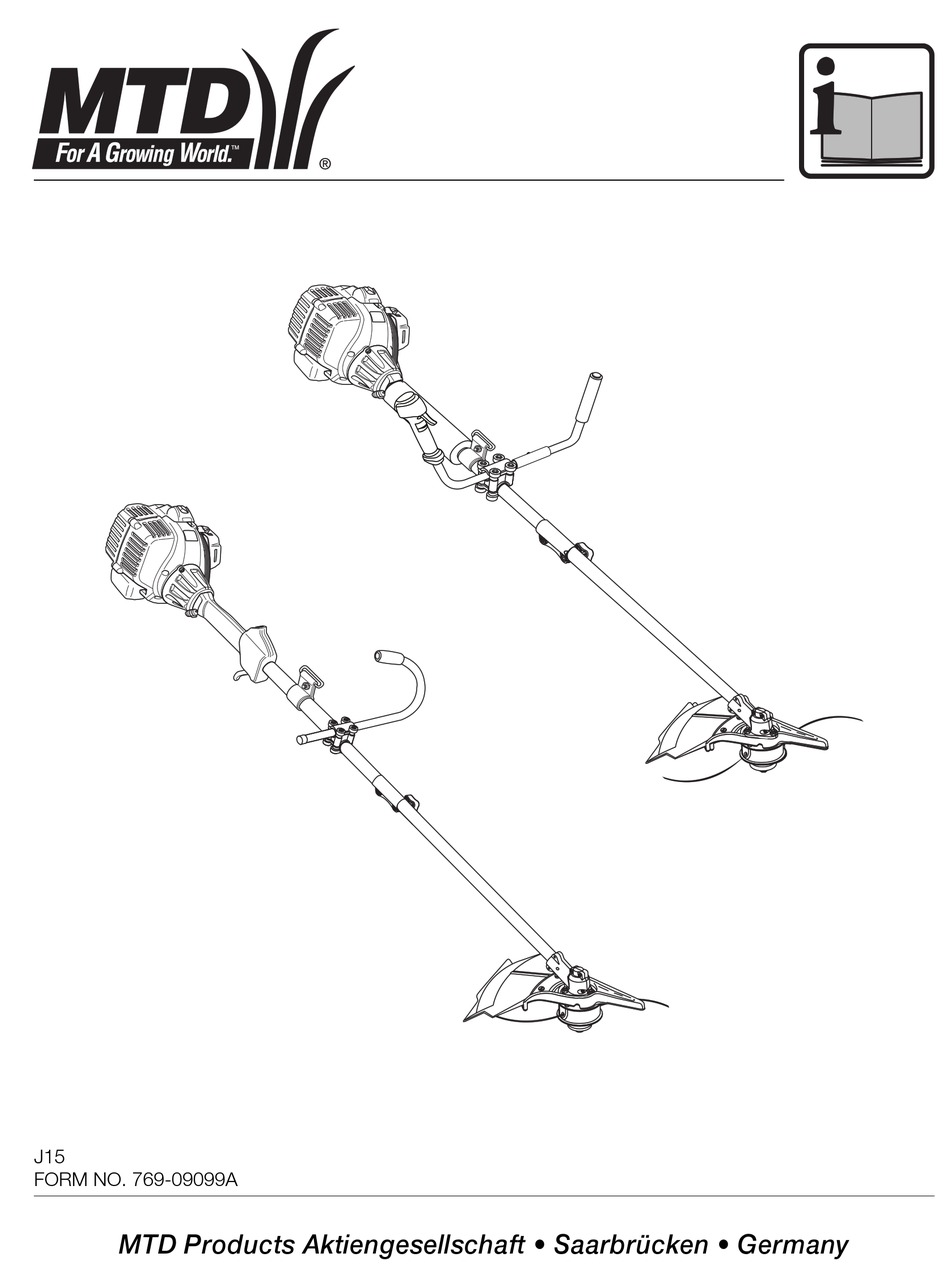

J15
FORM NO. 769-09099A
jqa=mêçÇìÅíë=^âíáÉåÖÉëÉääëÅÜ~Ñí=√=p~~êÄêΩÅâÉå=√=dÉêã~åó

Advertisement

Table of Contents
loading

Related Manuals for MTD J15

Summary of Contents for MTD J15

  • Page 1 FORM NO. 769-09099A jqa=mêçÇìÅíë=^âíáÉåÖÉëÉääëÅÜ~Ñí=√=p~~êÄêΩÅâÉå=√=dÉêã~åó...
  • Page 3 GET TO KNOW YOUR APPLIANCE PRÉSENTATION DE VOTRE APPAREIL LERNEN SIE IHR GERÄT KENNEN CONOSCERE L’APPARECCHIO CONHEÇA O SEU APARELHO CONOZCA SU EQUIPO Typ 1...
  • Page 4 GET TO KNOW YOUR APPLIANCE PRÉSENTATION DE VOTRE APPAREIL LERNEN SIE IHR GERÄT KENNEN CONOSCERE L’APPARECCHIO CONHEÇA O SEU APARELHO CONOZCA SU EQUIPO Typ 2...
  • Page 5 Description of the parts Descrizione delle parti 1. Exhaust 10. Cutting blade with cover * 1. Marmitta 10. Copertura attrezzo * 2. Starter handle 11. Cutting attachment cover 2. Maniglia di avviamento a fili di nylon 3. Tank cap 12. Line cutting blade 3.
  • Page 6 Description of the parts – Figs. 1–4 1. Handle bar 5. Lower clamp 2. Screw 6. Nut 3. Upper clamp 7. Quick-release lock 4. Middle clamp Description des pièces – Fig. 1–4 1. Guidon 5. Bride inférieur 2. Vis 6. Écrou 3.
  • Page 8 Depending on the model – Description of the parts – Figs. 7–9 1. Shaft coupling 5. Main hole 2. Release button 6. Upper shaft tube 3. Screw handle 7. Lower shaft tube 4. Guide groove Selon le modèle – Description des pièces – Fig. 7–9 1.
  • Page 9 Description of the parts – Figs. 10–13 1. Cutting attachment 6. Drive shaft housing plate 7. Safety bar slot 2. Screws 8. Shaft bush hole 3. Guard attachment 9. Cutting attachment 4. Safety bar 10. Cutting holder 5. Drive shaft Description des pièces –...
  • Page 10 Description of the parts – Figs. 14–16 1. Nut 4. Safety bar 2. Blade holder 5. Drive shaft housing 3. Blade Description des pièces – Fig. 14–16 1. Écrou 4. Tringle de sécurisation 2. Fixation de lame 5. Carter d’arbre 3.
  • Page 11 Beschreibung der Teile – Abb. 17–19 1. Gashebel 6. Betriebsposition (3) * 2. Gashebelsperre * 7. Chokehebel * 3. Zündschalter 8. Ansaugpumpe/Primer 4. volle Chokeposition (1) * 9. Starterseil 5. halbe Choke Zwischenposition (2) * Je nach Ausführung Descrizione delle parti – Fig. 17–19 1.
  • Page 12 Beschreibung der Teile – Abb. 24–26 1. Spulengehäuse 4. Auftippknopf 2. Feder 5. Einrastzähne 3. Spule Descrizione delle parti – Fig. 24–26 1. Capsula portabobina 4. Pulsante a percussione 2. Molla 5. Denti di arresto 3. Bobina Descrição das peças – Fig. 24–26 1.
  • Page 13 Description of the parts – Fig. 33 1. Air filter cover 3. Retaining plate 2. Air filter Description des pièces – Fig. 33 1. Capot du filtre à air 3. Patte de retenue 2. Filtre à air Beschreibung der Teile – Abb. 33 1.
  • Page 14 Description of the parts – Figs. 37–38 1. Air filter cover 3. Spark plug 2. Idle speed controller Description des pièces – Fig. 37–38 1. Capot du filtre à air 3. Bougie 2. Vis régulatrice du ralenti Beschreibung der Teile – Abb. 37–38 1.

  • Page 15: Safety Instructions

    Enter all information on the rating plate of your unit Safe operating practices in the following field. Using the unit correctly You can find the rating plate near the engine. This unit is designed These specifications are very important for subsequent –...

  • Page 16: Operating Times

    Safety instructions Operating the unit  Use only original spare parts for repairs. These parts can be purchased from your authorised  Never start the unit and never leave it running in a closed dealer. room or building. The inhalation of exhaust gases may ...
  • Page 17 Safety instructions  If extremely violent vibrations occur, switch off the engine  Leave the engine to cool down before transporting IMMEDIATELY. Vibrations are a sign of problems. or conveying the unit. Attach the unit securely for Check thoroughly for loose bolts, nuts or other damage transportation.
  • Page 18 Safety instructions Symbol Meaning Ejected objects and rotating parts may cause serious injuries! Caution: Do not use the unit if the protective housing has not been correctly positioned for cutting. Keep away from the rotating line coil and cutting blade. Ignition switch ON / START / RUN Ignition switch...
  • Page 19 Installation manual Installing and setting the handle bar Installing the cutting attachment or other attachments 1. Position the handle bar between the upper and middle clamp (Fig. 1). 1. Remove protective cap (optional) from the shaft coupling and attachment. 2. Hold the three parts together and screw the four (4) bolts through the upper clamp into the middle clamp.
  • Page 20 Installation manual Installing the cutting blade Removing the cutting blade and installing the cutting attachment (depending on model) 4. Remove the cutting attachment guard. See Removing and installing the cutting attachment Removing the cutting blade guard. 1. Attach the guard to the cutting blade. 5.

  • Page 21: Starting The Engine

    Operating manual Starting the engine On appliances without a choke lever 1. Pull the starter rope in controlled and continuous Note: The engine uses Advanced Starting Technology™ movement, unil the engine starts (Fig. 19). (spring-supported starting process) which significantly reduces the energy expenditure required to start Note: During the starting process do not actuate the throttle.

  • Page 22: Maintenance And Repair

    Operating manual Tips for best trim results Working with the cutting blade (depending on model)  Keep the cutting attachment parallel to the ground. Before operating the unit, please place it in the operating  Use only the tip of the line for cutting, especially along position (Fig.
  • Page 23 Maintenance and repair Installing the single line Cleaning the air filter To install the Split-Line™, please read Point 8 After ten operating hours clean and lubricate the air filter. It is important to service these components properly. 6. Take approx. 7.3 metres of new trim line and fold in half. If the air filter is not cleaned and serviced, any warranty Feed each end of the line through each of the two holes in the coil (Fig.

  • Page 24: Warranty

    Maintenance and repair Long-term storage Transportation If the unit is to be stored for a prolonged period, proceed  Before transporting the unit, leave it to cool down. as follows:  Empty the fuel tank before transporting the unit. Filler cap must be closed tightly. 1.
  • Page 25 Troubleshooting Engine has no power or stops during cutting Cause Procedure Cutting head entangled with grass Stop the engine and clean the cutting attachment. Dirty air filter Clean or replace air filter. Old or incorrectly mixed fuel Empty the tank/fill with fresh fuel mixture. Carburettor incorrectly adjusted Have carburettor adjusted by customer service personnel.
