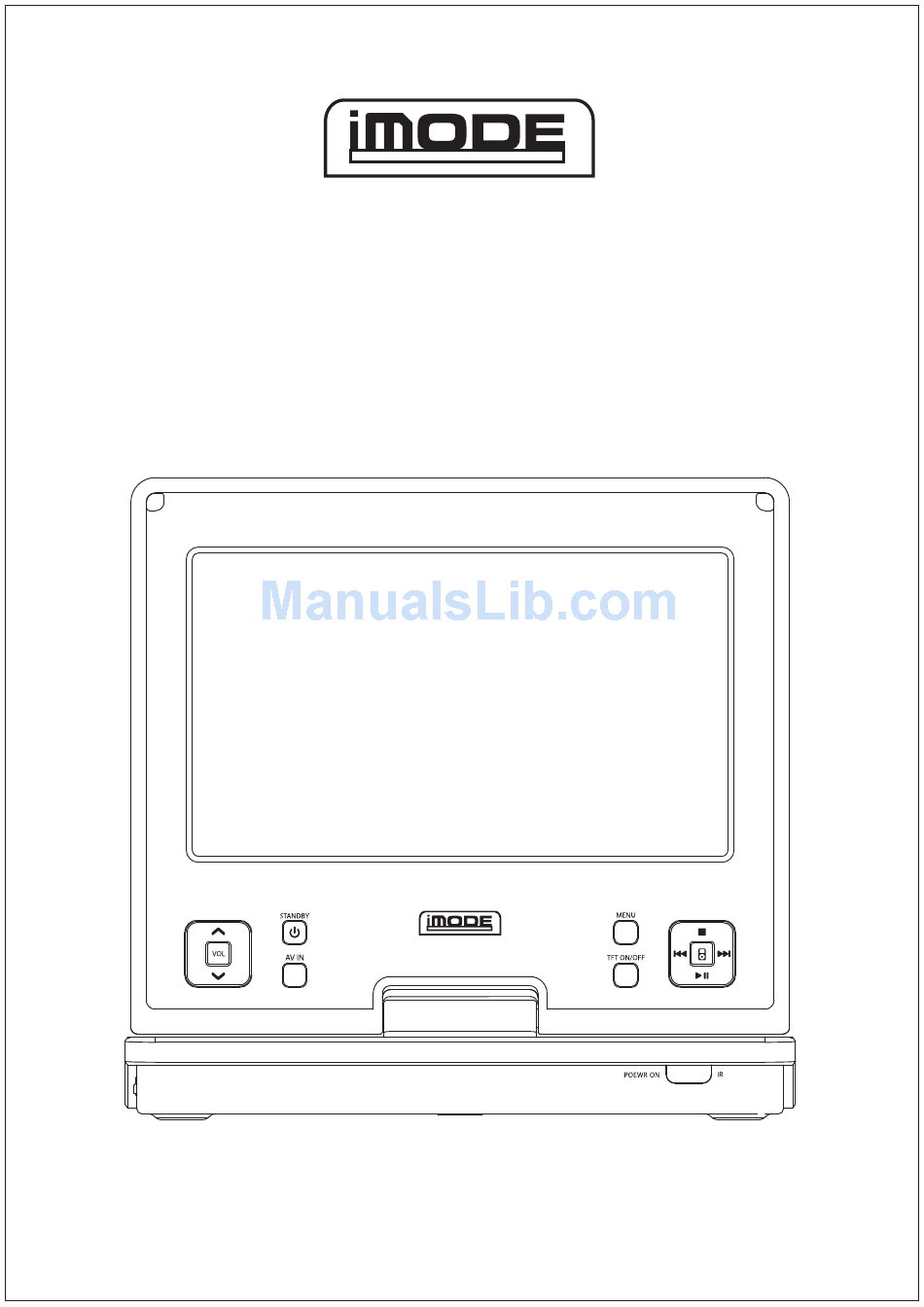

- Page 1 MODEL NO. iP9012 DOCKING STATION FOR iPOD VIDEO OWNER'S MANUAL PLEASE READ BEFORE OPERATING THIS EQUIPMENT...
-
Page 2: Warnings And Precautions
Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s ’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Location Of Controls
Location of Controls 1. TFT PANEL 2. STOP BUTTON 3. PLAY/PAUSE BUTTON 4. REMOTE SENOR 5. TFT ON/OFF BUTTON 6. MENU BUTTON 7. STAND BY BUTTON 8. AV IN BUTTON 9. VOLUME DOWN BUTTON 10. VOLUME UP BUTTON 11. IPOD COMPARTMENT DOOR RECESS 12. - Page 4 Location of Controls 18 17 16 19 16. AV IN JACK 17. AV OUT JACK 18. HEADPHONE JACK 19. POWER SWITCH 20. BATTERY COMPARTMENT 21. AC ADAPTOR JACK...
-
Page 5: Features Defined
Features Defined TFT PANEL Show the video / picture in the TFT panel STOP BUTTON To stop the playback. PLAY/PAUSE BUTTON Press to play / pause the unit. REMOTE SENSOR Using remote control pointing at the remote sensor window to control the unit. TFT ON/OFF BUTTON Press to off the TFT screen. - Page 6 Location of Controls AV IN BUTTON POWER/STANDBY BUTTON WIDE BUTTON iPod MENU BUTTON TFT ON/OFF BUTTON DBBS BUTTON TFT MEMU BUTTON REPEAT BUTTON ALBUM UP BUTTON ALBUM DOWN BUTTON SHUFFLE BUTTON PLAY LIST DOWN BUTTON VOLUME DOWN BUTTON VOLUME UP BUTTON PLAY LIST UP BUTTON MUTE BUTTON NETVIGATION BUTTON...
- Page 7 Features Defined AV IN BUTTON Press to select AV IN or AV OUT mode. POWER / STANDBY BUTTON Press the button between standby and power on mode. WIDE BUTTON To wide screen mode. IPOD MENU BUTTON Press to select iPod mode. TFT ON/OFF BUTTON To ON/OFF TFT screen.
- Page 8 Installing a Battery in the Remote Warning There is danger of an explosion if you replace the battery incorrectly. Replace only with the same or equivalent battery. To install or replace the battery: 1 Pull the battery tray out of the remote. 2 If you are replacing the battery, remove the old battery and dispose of it properly.
-
Page 9: Ipod Adaptors
iPod Adaptors iPod Video 30GB 3G iPod 10GB,15GB,20GB iPod Photo & Color U2 iPod 20GB & 30GB 4G iPod *iPod Video 60GB & 80GB not require any adaptors iPod MINI 4GB & 6GB iPod NANO 2nd 2GB,4GB,8GB iPod NANO 1st 2GB & 4GB... - Page 10 UNPACKING First inventory the contents of your Portable player package: If any item should be damaged or missing, please contact your dealer without delay. Keep the packaging materials, you may need them to transport your player in the future. WARNING: Changes or modifications made to this equipment, not expressly approved by us or parties authorized by us will void all manufacture warranties.
-
Page 11: Connecting To An External Power Source
Quick Starting Guide CONNECTING TO AN EXTERNAL POWER SOURCE Connect the power adapter (supplied with the player) to the rear DC input jack and to a wall outlet. Do not use any other device otherwise specified by your dealer. HOW TO USE DC IN JACK Use DC IN JACK to connect power adapter or car adapter to provide power for player. -
Page 12: Connecting Headphones
Quick Starting Guide CONNECTING TO A TV Step 1:connect the audio cables to AUDIO IN/OUT of the player. Step 2:connect the yellow cable to the VIDEO IN/OUT on the side of your player. CONNECTING HEADPHONES 1. Connect the headphones. Headphones with a 3.5 mm stereo plug can be connected. 2. -
Page 13: System Connection
Quick Starting Guide SYSTEM CONNECTION Use audio cable, video cable to connect from player to TV set and amplifier. CONNECT THE PLAYER TO TV SET BY AUDIO / AV CABLE Use audio cable, video cable to connect the player and TV set. CONNECT OTHER MEDIA TO THE PLAYER Use audio cable, video cable to connect from other media to player. - Page 14 Quick Starting Guide MENU SETUP BRIGHTNESS CONTRAST SHARPNESS COLOR DISPLAY MODE RESET MENU SETUP BRIGHTNESS CONTRAST SHARPNESS COLOR DISPLAY MODE RESET MENU SETUP BRIGHTNESS CONTRAST SHARPNESS COLOR DISPLAY MODE RESET MENU SETUP BRIGHTNESS CONTRAST SHARPNESS COLOR DISPLAY MODE RESET Press MENU twice to select CONTRAST then press VOLUME UP/DN to adjust value.
- Page 15 Quick Starting Guide MENU SETUP BRIGHTNESS CONTRAST SHARPNESS COLOR DISPLAY MODE RESET MENU SETUP BRIGHTNESS CONTRAST SHARPNESS COLOR DISPLAY MODE RESET MENU SETUP BRIGHTNESS CONTRAST SHARPNESS COLOR DISPLAY MODE RESET Press MENU six times to select HUE then press VOLUME UP/DN to adjust value.
- Page 16 Quick Starting Guide To Playback iPod 1. Lift the Dock Release button. Locate the correct holder to use as shown on page 9. 2. Insert the holder onto the dock and slip the side tabs into place.Insert the iPod onto the holder. 3.
-
Page 17: Fast Forward And Rewind
Quick Starting Guide HOW TO PAUSE PLAYBACK (STILL PLAYBACK) Press the PAUSE once during playback. The player is pause mode. Press the STOP button. The player is stopped FAST FORWARD & REWIND You can playback a movie at 2x the normal speed for fast forward or rewind. Hold the REV or FWD button during playback. -
Page 18: Use And Maintenance
Quick Starting Guide USE AND MAINTENANCE THIS UNIT IS SUPPLIED WITH HIGHLY- EFFECTIVE RECHARGEABLE BATTERY (LI-POLYMER). SUCH BATTERY PACK A HIGH STORAGE CAPACITY AND LOW LEVEL OF DEGRADATION. THE LATTER MEANS THAT THE BATTERY CAN ALSO BE RECHARGED WHEN ONLY PARTLY SPENT. Plug the AC adapter into the unit. - Page 19 Quick Starting Guide 2 . Long-term Storage (2 years , -20 C to 35 As long-term storage can accelerate battery self-discharge and lead to the deactivation of reactants, locations where the temperature ranges between 10 C and 30 C are suitable for long-term storage.
