Summary of Contents for Vizio M50-D1

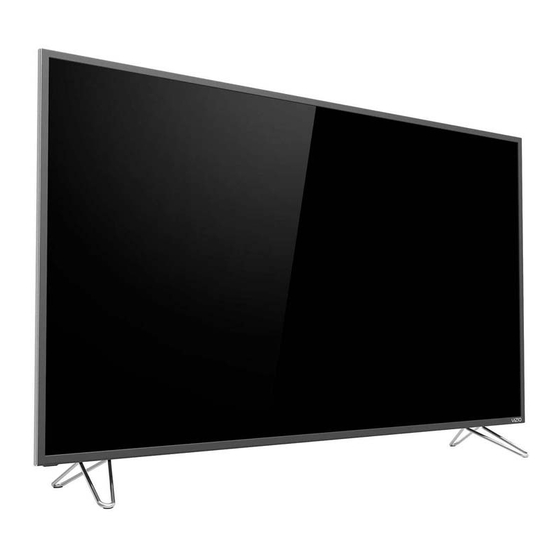

- Page 1 USER MANUAL M50-D1, M55-D0, M60-D1, M65-D0, M70-D3, & M80-D3...
- Page 2 Safety Information IMPORTANT SAFETY INSTRUCTIONS - M-SERIES DISPLAY Your display is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent your display from being damaged, the following instructions should be observed for the installation, use, and maintenance of your display.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS - XR6 TABLET REMOTE Read all the safety information below before using your VIZIO XR6 Tablet Remote. For additional information, read the User Manual available directly through an application in your Tablet Remote. DRIVING SAFELY Use of your Tablet Remote while driving may cause distractions and may be prohibited in some places. Always comply with local laws and regulations when driving.
-
Page 4: Table Of Contents
Basic Tablet Remote Gestures ..........9 Basic Android Functions ............10 Organizing your Android Home screens ......... 12 First-Time Setup ............13 Pairing the Tablet Remote with M-Series Display ......14 VIZIO SmartCast App ..........17 ™ Register for a MyVIZIO account ............17 Navigating the SmartCast App ............ -
Page 5: Getting Started
Getting Started M-SERIES DISPLAY Overview - Front Remote Sensor & Power Indicator When using the Basic Remote, aim it directly at this sensor. The power indicator lights up when the Display turns on, then goes out after several seconds. To keep the power indicator LED on as long as the Display is on, see Turning the Power Indicator On or Off on page 64. -
Page 6: Overview - Back
Overview - Back Power Button Volume Up/Down Buttons Input Button USB 2.0 Ports Component Ports HDMI Port Optical/SPDIF Audio Out Port HDMI Ports RCA Audio Out Ports Ethernet Port Note: The image shown here is for illustrative purposes only and may be subject to change.The actual number of ports and their locations may vary, depending on the model. -
Page 7: Basic Remote
BASIC REMOTE Overview Use the Basic Remote to control the basic functions of the M-Series Display. Input Power Change the currently Turn the Display on or off. displayed input. Aspect Ratio Link Cycle through the different Activate pairing mode. aspect ratio modes. (Between Display and Tablet Remote) Volume Up/Down Channel Up/Down... -
Page 8: Tablet Remote
TABLET REMOTE Overview The 6″ Android Tablet Remote brings the way you interact up to speed with the rest of your entertainment experience. Simply tap, swipe, or use voice controls to access a virtually limitless library of casting content. Headphone port Power/Sleep/Wake Volume buttons Left... -
Page 9: Basic Tablet Remote Gestures
Basic Tablet Remote Gestures The 6″ Android Tablet Remote brings the way you interact up to speed with the rest of your entertainment experience. A few hand gestures are all you need to access a virtually limitless library of casting content. Drag Swipe Pinch... -
Page 10: Basic Android Functions
Basic Android Functions There are a few basic functions that you should be familiar with before diving any deeper into the Android Tablet Remote. Power/Sleep/Wake button Press and hold the power button for a few seconds to power on the tablet. To turn off or reboot the tablet, press and hold the power button for a few seconds. - Page 11 Android Quick Settings Use the Quick Settings menu to easily access frequently used settings such as Wi-Fi, Bluetooth, and brightness controls. To access the Quick Settings menu, swipe down from the top of the screen with two fingers (or twice with one finger). Display brightness Slide the icon to lower or increase the brightness of your screen.
-
Page 12: Organizing Your Android Home Screens
Organizing your Android Home screens Change your wallpaper, add a widget, or change screen order by touching and holding the background of any Home screen. You can have an unlimited number of Home screens to the right. To add a new screen, swipe to the rightmost screen and drag an app or widget to the right edge of the screen. -
Page 13: First-Time Setup
And then just tap to cast the content to your VIZIO display - from anywhere in your home. It works over WiFi, so you can control your VIZIO display from any room, and keep using your VIZIO Tablet Remote to continue browsing, play games, text or even watch another show, without disrupting what’s... -
Page 14: Pairing The Tablet Remote With M-Series Display
Tap Get Started on the tablet to begin the First-Time Setup. Display Tablet Remote Select your language and tap Next to continue. Hold the Tablet Remote close to the VIZIO logo on the bottom right corner of the display for a few seconds to pair it with the M-Series Display. - Page 15 Use the tablet to name your M-Series Display. Take a moment to read the VIZIO Terms of Service and Privacy Policy, as well as Google’s Terms of Service and Privacy Policy. When you are done,...
- Page 16 Use the tablet to sign into your existing Google account. If you do not have one, tap Or create a new account to create a new account. Follow the on-screen instructions to complete the First-Time Setup. The First-Time setup is complete. The VIZIO SmartCast™ App is displayed.
-
Page 17: Vizio Smartcast ™ App
Tap Create an Account to register for a MyVIZIO account. Follow the on-screen instructions to complete the registration process. If you do not want to register for a MyVIZIO account, tap Skip to continue. To take full advantage of the VIZIO SmartCast app, VIZIO ™... -
Page 18: Navigating The Smartcast App
NAVIGATING THE SMARTCAST ™ After you Creating/Logging into your MyVIZIO account, the home page of the SmartCast™ app is displayed. Search Menu Device Power Device Settings Device Input Aspect Ratio Picture Settings Volume Controls Device Menu The Device Menu is available throughout the SmartCast app, allowing you to easily access the device controls. - Page 19 Swipe to reveal a list of content categorized into TV Shows, Movies, Music, Live TV, Kids, and Live Streams. You can also access these categorizes by tapping the button in the top left corner. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
-
Page 20: User Profile Settings
USER PROFILE SETTINGS Every user can register their very own user profile (MyVIZIO, Facebook, or Google), keeping their personalized watchlists and collections. To access the Profile page: Tap the button to reveal the side menu. Tap View Profile. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model. - Page 21 To modify the account settings: Tap the button to access the account settings page. You can change the First Name, Last Name, E-mail Address, and password by tapping on each of them. To edit profile settings: From the Profile page, tap Edit Profile. You can edit the Profile Color, Profile Name, and Location by taping on each of them.
-
Page 22: Picking Something To Watch
PICKING SOMETHING TO WATCH After you get the hang of using the SmartCast app, it’s time for you pick and choose something to watch. Tap on TV Shows, Movies, Live TV, Kids, or Live Steam from the Home page. Depending on which category you pick, the content will be organized into several collections (scroll up and down to reveal additional collection). - Page 23 Tap on the title you want to watch to see information regarding the cast, meta scores, and etc. A) Tap on the play button. B) Select On Demand or On Now (Online feed ) and tap the play button. C) For On Demand: Select a source and tap the play button. D) Your title begins playing on your display.
-
Page 24: Picking Something To Listen To
PICKING SOMETHING TO LISTEN TO If you are in the mood to listen to some music, you can also browse directly from the SmartCast app. Tap on Music from the Home page. Music will be organized into several collections (scroll up and down to reveal additional collection). - Page 25 Tap on the content you want to listen to. A) Tap on the play button. B) Select On Demand or On Now (Online feed ) and tap the play button. C) For On Demand: Select a source and tap the play button. Your content begins playing on your SmartCast device.
-
Page 26: Watchlists
WATCHLISTS While you are browsing for content, you can add titles to a watchlist (My Watchlist) where you can easily access them whenever you want. You can also set alerts to notify you when new episodes are available to watch. To add content to a watchlist: From the Home page, tap on TV Shows, Movies, Kids, or Live Streams. - Page 27 button and select Add to My Watchlist to add the title to Tap on the your watchlist. The Add to Watchlist menu appears. Here you can set an alert for the title, alerting when it will be aired. Tap on Set Alert to turn the notification on. Alert Types: New Airings Only, Live Airings Only, Unwatched Airings Only, or All Airings.
- Page 28 To view, edit, and watch titles from your watchlist: Tap on the button and select My Watchlist. The My Watchlist menu is displayed. Tap on a title, select and source, and the content begins to play. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
- Page 29 To edit alerts and remove a title from your watchlist: From the My Watchlist menu, tap on the button on each title to edit alerts or remove it from the watchlist. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
-
Page 30: Collections
COLLECTIONS Add movies, and TV shows to your Collections, to build personally categorized lists of content. To add content to a Collections list: Choose a title you want to add to a collection and tap on the button and select Add to Collection. The Add to Collection menu appears. - Page 31 To view, edit, and watch titles from your Collections: Tap on the button and select Collections. The Collections menu is displayed. Tap on a title, select and source, and the content begins to play. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
- Page 32 To remove titles from your Collection list(s): From the Collections menu, tap on the Collection that contains the title you want to remove. to remove the title from the collection. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
-
Page 33: Watching Live Tv
Add a Channel Lineup for an Unsupported Device. * Live TV listings compatible with IP-based set-top boxes from DirecTV and Dish Network services, with more services to be added. See vizio.com/smartcast for details. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model. - Page 34 If you chose Add a Channel Lineup for an Unsupported Device, follow the on-screen instructions to complete the setup. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
- Page 35 After you setup a TV connection, you can browse through the broadcast schedule, add programs to your Favorites and Watchlists. To browse through the Live TV broadcast schedule: From the Home page, tap on Live TV or select Live TV from the menu.
- Page 36 To add content programs to your Favorites or Watchlists: • From the schedule page, tap on the button. Tap Add To/Remove From Favorites to add/remove the program from your favorites list. Tap Add To My Watchlists to add the program to your watchlist. To remove the program from your watchlist, see Watchlists on page 26.
-
Page 37: Managing Categories
MANAGING CATEGORIES You can add, remove, and rearrange the content categories on the Home page to your preference. All but the Movies and TV Shows categories can be removed. To add or remove a category: From the Home page, tap on the button and select Manage Categories. -
Page 38: Device Settings
SETTING UP ADDITIONAL SMARTCAST DEVICES To add additional SmartCast devices: From the Home page, tap on the button and select Device Settings. The VIZIO Devices menu is displayed. Tap ADD NEW DEVICE and follow the on-screen instructions to pair your SmartCast device. - Page 39 Remove to remove the SmartCast device from the SmartCast App. To modify SmartCast device settings: From the VIZIO Devices menu, tap on the SmartCast device listed. • See VIZIO SmartCast Display Settings on page <OV> for detailed descriptions of each setting.
- Page 40 To change your SmartCast device name: From the Display Settings menu, tap on Device Name and enter a new • name. Tap Save when you are done. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
-
Page 41: Adjusting Picture Settings
ADJUSTING PICTURE SETTINGS In addition to letting you browse, watch, and listen to content, the VIZIO SmartCast App lets you adjust your SmartCast Display settings directly from the App. To access the Picture settings menu: • From the Display Settings menu, tap on Picture. The Picture menu is displayed. - Page 42 Your VIZIO Display can be adjusted to suit your preferences and viewing conditions. Tap on each setting to see the available settings. Adjust settings with sliders by sliding your finger left to decrease and right to increase. Changes made while on any preset picture mode will add an asterisk on the top right corner of the preset mode.
- Page 43 • Backlight • Adjusts the LED brightness level to affect the overall brilliance of the picture. Backlight cannot be adjusted on some picture modes. • Brightness • Adjusts the black level of the picture. When this setting is too low, the picture may be too dark to distinguish details.
- Page 44 • Active LED Zones • Dynamically improves the contrast ratio of the picture by adjusting the backlight. The adjustment is controlled by the content on the screen. Swipe left to Disable and right to Enable. • Reduce Judder • Activates Smooth-Motion motion estimation/motion compensation, which suppresses motion judder, or “studdering”...
-
Page 45: Adjusting The Picture Mode Edit Settings
Adjusting the Picture Mode Edit Settings Picture Mode Settings allow you to make precise adjustments to the picture and to create picture modes to save groups of picture settings. • Save Picture Mode • Save a custom picture mode. • Lock Picture Mode •... - Page 46 Locking/Unlocking a Custom Picture Mode Custom picture modes can be locked/unlocked with a unique PIN to prevent accidental changes to their settings. To lock all custom picture modes: From the Picture Mode Edit menu, swipe the Lock Picture Mode switch to the right to lock a picture mode.
- Page 47 Deleting a Custom Picture Mode Custom picture modes that are no longer needed can be deleted. Inputs assigned to a deleted custom picture mode become assigned to the Calibrated picture mode. To delete custom picture modes: From the Picture Mode Edit menu, Tap Delete Picture Mode.
-
Page 48: Adjusting The Color Calibration Settings
Adjusting the Color Calibration Settings Use the color calibration settings to calibrate the image using HSB, offset, gain, and 11 point white balance. You can also reset the color tuner values and perform calibration tests. Current Picture Mode Current Color Temperature To access the color calibration settings menu: From the Picture menu, tap Color Calibration. - Page 49 Enabling/Disabling Calibration Tests To enable/disable calibration tests: From the Color Calibration menu, tap Calibration Tests. The Calibration Tests menu is displayed. Select the test pattern you wish to enable. Adjust settings with switches by swiping left to disable and right to enable. Note: The images shown here are for illustrative purposes only and may be subject to change.
-
Page 50: Adjusting Audio Settings
ADJUSTING AUDIO SETTINGS To access the Audio settings menu: • From the Display Settings menu, tap on Audio. The Audio menu is displayed. • From the Device Menu, tap on the button. The Display Settings menu is displayed. Then tap on Audio to access the Audio menu. Note: The images shown here are for illustrative purposes only and may be subject to change. - Page 51 To adjust the audio settings: • Speakers (Display Speakers) - Turns the built-in speakers on or off. Select Auto to have the display automatically detect if there are any devices (such as a sound bar) connected to the Audio Out output ports.
-
Page 52: Adjusting Timer Settings
ADJUSTING TIMER SETTINGS To access the Timers settings menu: • From the Display Settings menu, tap on Timers. The Timers menu is displayed. • From the Device Menu, tap on the button. The Display Settings menu is displayed. Then tap on Timers to access the Timers menu. Note: The images shown here are for illustrative purposes only and may be subject to change. -
Page 53: Activating The Sleep Timer
Activating the Sleep Timer When activated, the display’s sleep timer will turn the display off after a set period of time. To activate the sleep timer: From the Timers menu, tap Sleep Timer. Select the period of time after which you want the display to go to sleep: 30, 60, 90, 120, or 180 minutes. -
Page 54: Adjusting Network Settings
ADJUSTING NETWORK SETTINGS To access the Network settings menu: • From the Display Settings menu, tap on Network. The Network menu is displayed. • From the Device Menu, tap on the button. The Display Settings menu is displayed. Then tap on Network to access the Network menu. Note: The images shown here are for illustrative purposes only and may be subject to change. -
Page 55: Using The Network Connection Menu
Using the Network Connection menu Your display is Internet-ready, featuring both an Ethernet port and built-in high- speed Wireless-AC. Connecting to a Wireless Network To connect to a wireless network whose network name (SSID) is being broadcast: If your display is connected to a network with an Ethernet cable, you will not see the wireless network connection menu. - Page 56 Finding the MAC Addresses for Network Setup The security settings on your router may require you to enter the display’s MAC address in the router’s settings. To find the display’s MAC address: From the Network menu, tap Manual Setup. The Manual Setup menu is displayed.
- Page 57 Testing your Network Connection To test your network connection: From the Network menu, tap Test Connection. The Test Connection menu is displayed. When the test is complete, your connection results are displayed. Note: The images shown here are for illustrative purposes only and may be subject to change. The actual on-screen image and text may vary, depending on the model.
-
Page 58: Renaming Devices On The Input Menu
RENAMING DEVICES ON THE INPUT MENU To access the Inputs menu: • From the Display Settings menu, tap on Inputs. The Inputs menu is displayed. • From the Device Menu, tap on the button. The Display Settings menu is displayed. Then tap on Inputs to access the Inputs menu. Note: The images shown here are for illustrative purposes only and may be subject to change. -
Page 59: Renaming Devices On The Input Menu
Renaming Devices on the Input Menu You can rename the inputs to make them easier to recognize on the Input menu. For example, if you have a DVD player connected to the Component input, you can rename that input to display “DVD Player”. To change the name of an input: From the Inputs menu, tap Name Input. -
Page 60: Changing The Display System Settings
CHANGING THE DISPLAY SYSTEM SETTINGS To access the System Settings menu: • From the Display Settings menu, tap on System. The System menu is displayed. • From the Device Menu, tap on the button. The Display Settings menu is displayed. Then tap on System to access the System menu. Note: The images shown here are for illustrative purposes only and may be subject to change. -
Page 61: Viewing System Information
Using the System menu, you can: • View system information • Change the on-screen menu language • Set country • Set time zone and local settings • Adjust CEC settings • Adjust mode settings • Adjust when the power indicator is illuminated •... -
Page 62: Changing The On-Screen Menu Language
Changing the On-Screen Menu Language Your display can display the on-screen menu in different languages. To change the on-screen menu language: From the System menu, tap Menu Language. Tap on your preferred language (English, Español, or Français). Set Country Select your country of choice. To change the on-screen menu language: From the System menu, tap Country. -
Page 63: Setting The Time And Local Settings
Setting the Time and Local Settings To ensure the correct time is displayed, set the display’s time zone: From the System menu, tap Time & Local Settings. The Time & Local Settings menu is displayed. • Use Internet Time - Swipe the switch to the right to have the display sync the time online. -
Page 64: Turning The Power Indicator On Or Off
Turning the Power Indicator On or Off The power indicator on the front of your display normally does not glow when the display is on. You can change this setting if you prefer the indicator to be on. To turn the power indicator light on or off: •... -
Page 65: Adjusting The Reset & Admin Settings
Adjusting the Reset & Admin Settings You can use the display’s Reset & Admin menu to set a System PIN, restore the display to its factory default settings, enable/disable Smart Interactivity, and enable/disable the Store Demo. To set a system PIN code: From the Reset &... - Page 66 To turn Smart Interactivity on or off: • From the Reset & Admin menu, tap Smart Interactivity. Tap Off or On. To enable/disable the Store Demo: • From the Reset & Admin menu, tap Store Demo. Tap Disable or Enable. Note: The images shown here are for illustrative purposes only and may be subject to change.
-
Page 67: Manage Mobile Devices
MANAGE MOBILE DEVICES To access the Mobile Devices menu: • From the Display Settings menu, tap on Mobile Devices. The Mobile Devices menu is displayed. • From the Device Menu, tap on the button. The Display Settings menu is displayed. Then tap on System to access the System menu. Note: The images shown here are for illustrative purposes only and may be subject to change. -
Page 68: Paired Mobile Devices
Paired Mobile Devices The Mobile Devices menu provides a list of mobile devices paired to the display. You can use this menu to delete a pair device from display. To delete a paired device: From the Mobile Devices menu, tap the button next to the device you want to delete. -
Page 69: Troubleshooting
Customized Support Get assistance quickly with your information on-hand. News & Offers Take advantage of the latest news and special offers from VIZIO. Safety & Satisfaction Stay up to date with important product updates and notifications. REGISTER YOUR VIZIO PRODUCT NOW... -
Page 70: Specifications
Specifications M50-D1 Screen Size: 50” Class Viewable Area: 49.50” Dimensions w/ Stand: 44.40 x 27.98 x 8.70” (112.78 x 71.06 x 2.21 cm) Dimensions w/o Stand: 44.40 x 25.61 x 2.68” (112.78 x 65.06 x 6.80 cm) Weight w/ Stands: 30.86 lb (14.00 kg) - Page 71 M55-D0 Screen Size: 55” Class Viewable Area: 54.64” Dimensions w/ Stand: 48.98 x 30.59 x 9.13” (124.40 x 77.69 x 23.18 cm) Dimensions w/o Stand: 48.98 x 28.30 x 2.52” (124.40 x 71.87 x 6.40 cm) Weight w/ Stands: 36.16 lb (16.40 kg) w/o Stands: 34.17 lb (15.50 kg) LCD Backlight:...
- Page 72 M60-D1 Screen Size: 60” Class Viewable Area: 64.52” Dimensions w/ Stand: 53.12 x 33.11 x 10.01” (134.93 x 84.11 x 25.42 cm) Dimensions w/o Stand: 53.12 x 30.52 x 2.76” (134.93 x 77.52 x 7.00 cm) Weight w/ Stands: 48.50 lb (22.00 kg) w/o Stands: 47.05 lb (21.34 kg) LCD Backlight:...
- Page 73 M65-D0 Screen Size: 65” Class Viewable Area: 64.52” Dimensions w/ Stand: 57.59 x 35.79 x 10.87” (146.29 x 90.90 x 27.62 cm) Dimensions w/o Stand: 57.59 x 33.15 x 2.52” (146.29 x 84.19 x 6.40 cm) Weight w/ Stands: 57.32 lb (26.00 kg) w/o Stands: 55.34 lb (25.10 kg) LCD Backlight:...
- Page 74 M70-D3 Screen Size: 70” Class Viewable Area: 69.50” Dimensions w/ Stand: 61.70 x 38.36 x 11.14” (156.73 x 97.43 x 28.30 cm) Dimensions w/o Stand: 61.70 x 35.53 x 2.72” (156.73 x 90.23 x 6.90 cm) Weight w/ Stands: 60.41 lb (27.40 kg) w/o Stands: 58.20 lb (26.40 kg) LCD Backlight:...
- Page 75 M80-D3 Screen Size: 80” Class Viewable Area: 80.00” Dimensions w/ Stand: 71.60 x 44.20 x 15.20” (181.94 x 112.20 x 38.50 cm) Dimensions w/o Stand: 71.60 x 41.20 x 3.20” (181.94 x 104.70 x 8.12 cm) Weight w/ Stands: 92.37 lb (41.90 kg) w/o Stands: 89.29 lb (40.50 kg) LCD Backlight:...
-
Page 76: Warranty Information
If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies. - Page 77 IF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION AGREEMENT AND CLASS ACTION WAIVER, THEN: (1) you must notify VIZIO in writing within sixty (60) days of the date that you purchased the product; (2) your written notification must be mailed to VIZIO at 39 Tesla, Irvine, CA 92618, Attn: Legal Department;...
- Page 78 What to Do If You Are Not Satisfied With Service If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, you may do so.
-
Page 79: Legal & Regulatory
All software is provided subject to a software license agreement(s) and you agree that you will be bound by such license agreement(s) in addition to these terms. Your use of this product is subject to VIZIO’s privacy policy, which may be updated from time to time, and is available to view at http://www.vizio.com/privacy. - Page 80 FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 81 © 2016 VIZIO INC. ALL RIGHTS RESERVED. 160426OC-US-NC...
