Summary of Contents for Vizio M502i-B1

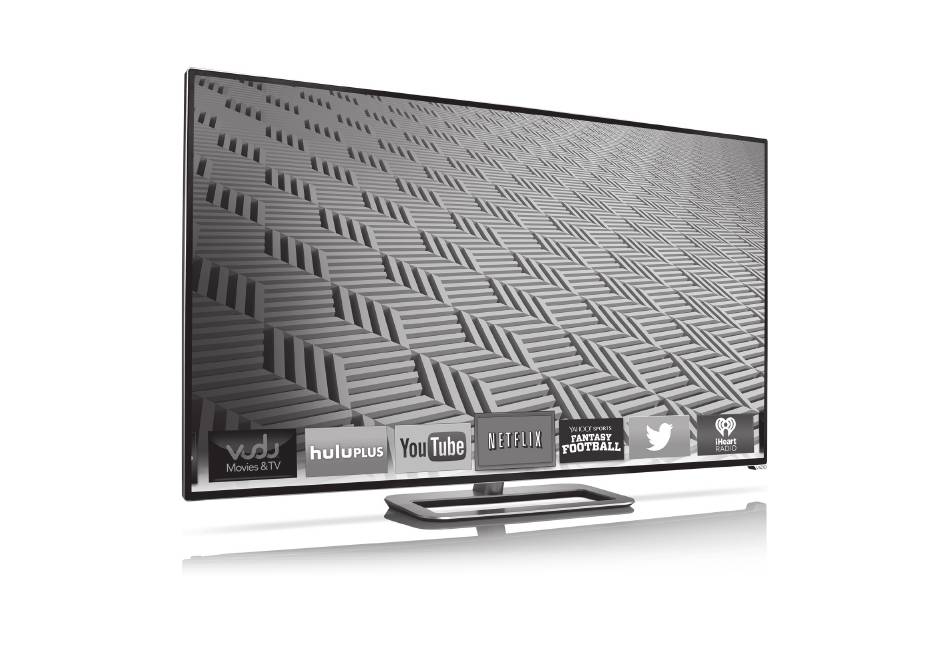

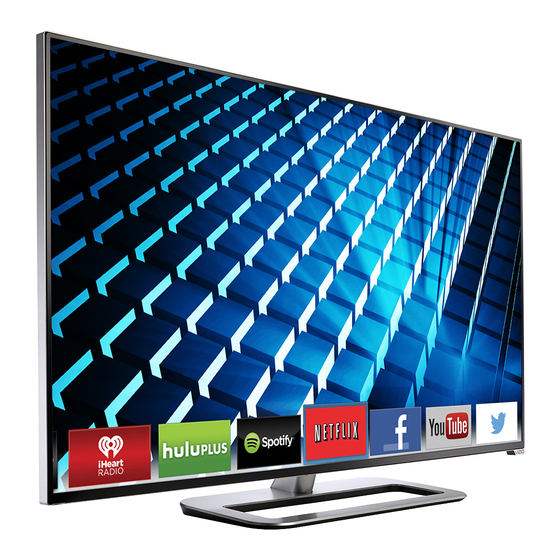

- Page 1 VIZIO QUICK START GUIDE Models: M502i-B1...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric may cause fire or electric shock. shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the •... -
Page 3: Television Antenna Connection Protection
TELEVISION ANTENNA CONNECTION PROTECTION Ground Clamp Antenna Lead In Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC ART 250, part H) Electric Service Equipment • If an outside antenna/satellite dish or cable system is to be connected to •... - Page 4 Do You Have Questions? Find Answers At SUPPORT.VIZIO.COM Find help with: • New Product Setup • Connecting Your Devices • Technical Problems • Product Updates • And More Live Chat Support Available You can also contact our award-winning support team at:...
-
Page 5: Package Contents
PACKAGE CONTENTS VIZIO LED HDTV with Stand Two-Sided Remote This Quick Start Guide with Keyboard (Batteries Included) Power Cord 5 x M4 12mm 4 x M4 14mm Phillips Screws Phillips Screws... -
Page 6: Installing The Base
INSTALLING THE BASE It is recommended that two people take part in the base installation. Remove any plastic wrapping from the TV and stand. Place the TV screen-down on a clean, flat surface. To prevent scratches or damage to the screen, place the TV on a soft surface such as a blanket. - Page 7 Align the neck piece with the bottom of the TV Align the base with the neck. and slide it into place as shown. Insert and tighten five (5) included M4 12mm Insert and tighten four (4) included M4 14mm Phillips screws into the bottom of the Phillips screws into the back of the base as shown.
-
Page 8: Using The Remote
Navigate the on-screen menu. GUIDE Select the highlighted menu option. Display the info window. V BUTTON BACK Open the VIZIO Internet Apps Go to the previous on-screen menu. Plus dock. VOLUME UP/DOWN CHANNEL UP/DOWN Increase or decrease loudness of the Change the channel. - Page 9 DO NOT COVER THIS AREA This is the transmitter. SHIFT ARROW Press and hold while pressing Press and hold while pressing another Navigate the on-screen menu. another key to enter a key to enter a blue character. For capital letter. example, press ALT and W to enter a # character.
-
Page 10: First Time Setup
FIRST-TIME SETUP Connect all of your devices first. Choose ONE connection type for each device. Match colored connectors White White to colored ports. Blue Yellow Green BACK OF TV... -
Page 11: Game Consoles
AV CABLE* • ANALOG Commonly-Connected GOOD • VIDEO (480i)** Devices: • STEREO AUDIO White Yellow Cable or Satellite Boxes White COMPONENT CABLE* • ANALOG BETTER • HD VIDEO (1080i)** • STEREO AUDIO Blue Green COAXIAL CABLE* Blu-ray or DVD Players •... - Page 12 Ethernet cable from your modem/ Plug the power cord into an electrical outlet. router to the back of the TV as shown. For the best Smart TV experience, VIZIO recommends using an Ethernet cable. However, your TV also has built-in Wi-Fi. See the Connecting to the Internet with Wi-Fi section for more information.
- Page 13 Press in on the button Remove the battery cover. on the rear of the remote.
- Page 14 Insert two batteries into the remote control. Replace the battery cover. Make sure that the (+) and (-) symbols on the batteries match the (+) and (-) symbols inside the battery compartment.
- Page 15 Choose your mode. Select Store Demo for in-store display. Select Home Use for in-home use. Seleccione "Home Use" para Modo de Casa o "Store Demo" para Demostración en la Tienda. Choisissez "Home Use" pour le Mode Domicile ou "Store Demo" pour Démo en Magasin. Store Demo Home Use Turn the TV on by pressing the...
-
Page 16: Connecting To The Internet With Wi-Fi
CONNECTING TO THE INTERNET WITH Wi-Fi VIZIO VIZIO If you have already set up a wireless TV SETTINGS GUIDED SETUP connection during the first-time setup, you Wide Zoom Normal Panoramic Wide Picture Tuner Setup can skip this section. Audio Network Setup... - Page 17 If you are having trouble connecting to your network, check your router placement: • Walls and large metal objects can block the signal. • Other devices broadcasting at 2.4 or 5 GHz can interfere with the signal. • Wall blocks signal •...
-
Page 18: Getting Started With Vizio Internet Apps Plus
GETTING STARTED WITH VIZIO INTERNET APPS PLUS ® VIZIO Internet Apps Plus (V.I.A. Plus) delivers ® popular online content to your TV. V.I.A. Plus features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand. - Page 19 The fullscreen V.I.A. Plus Apps window allows you to add and store apps. The Apps on the first page are displayed in the Dock and Apps on additional pages can be moved to the Dock. Press the V Button twice to launch the fullscreen V.I.A. Plus Apps window. My Apps Tab Displays the apps installed...
- Page 20 VIEWING THE ON-SCREEN USER MANUAL VIZIO MENU TV SETTINGS Button Wide Zoom Normal Panoramic Picture Audio Timers Network Exit Tuner Closed Captions Devices System Guided Setup User Input Wide User Manual Manual Sleep Picture Audio Timer Network Settings Help Press the MENU Button on the Remote Control Highlight User Manual and press OK.
-
Page 21: Vizio Recommends
5.1 HOME THEATER SOUND BAR WITH WIRELESS SUB & SATELLITE SPEAKERS For the pinnacle of surround sound immersion and convenience, the VIZIO 5.1 Sound Bar sets the bar exceptionally high. Designed to fit any medium to large sized HDTV, this sound bar comes with a wireless subwoofer, rear satellite speakers and is packed with the latest in Dolby and DTS audio technology. - Page 22 With outstanding audio performance and a built-in subwoofer, the VIZIO 21” 2.1 Sound Stand is the perfect and convenient audio upgrade for TVs up to 55 inch class in traditional media cabinets or any room in the house.
- Page 23 VIZIO RECOMMENDS VIZIO XCH508 8FT HIGH SPEED HDMI CABLE – EXTREME SLIM SERIES ® Keep a low profile with the 8ft High Speed HDMI Cable – Extreme Slim Series. Ideal for ultra-thin HDTVs, its ® built-in smart chip provides picture perfect HD video, 3D and superior audio at up to 10.2 Gbps. This all-in-one cable also supports advanced 7.1 surround sound and audio return channel, eliminating the need for...
-
Page 24: Help Topics
HELP TOPICS • The on-screen menu has guided setup. Press MENU, then select Guided Setup. Select the type of setup you need and press OK. The Setup App will begin. How do I return to the • To reset the TV to factory defaults, press MENU > System > Reset & Admin > Reset TV to Factory Defaults. Setup App? If you have changed the default Parental Control Passcode, enter it now. -
Page 25: Legal & Compliance
Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION. -
Page 26: Limited Warranty - Canada
To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 product to a VIZIO service center. Proof of purchase in the form of a purchase receipt or copy thereof is required to MY VIZIO (877.698.4946) from 7:00AM to 11:00PM Monday through Friday and 9:00AM to 6:00PM Saturday and show that a Product is within the warranty period. - Page 27 (b) When the Product has not been operated according to the accompanying instructions for use. period, VIZIO Sales & Marketing México S. de. R.L. de C.V. will either repair or replace the unit at its sole option and (c) When the Product has been altered or repaired by persons not authorized by VIZIO Sales & Marketing México discretion.
- Page 28 © 2014 VIZIO INC. ALL RIGHTS RESERVED. 140519OC-US-NC...
