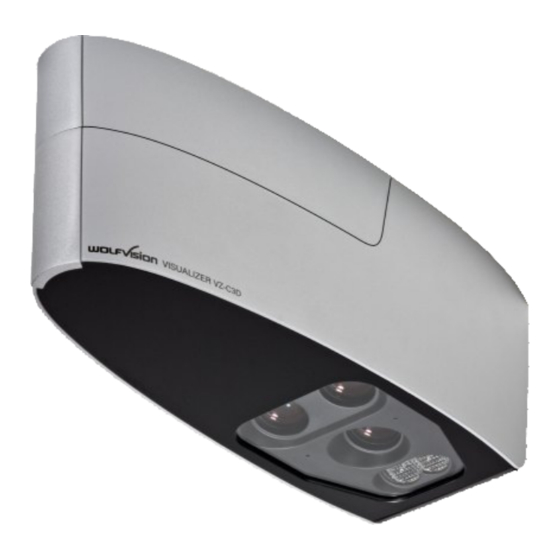

Ceiling visualizer
Hide thumbs Also See for VZ-C3D:

Advertisement

Available languages

Available languages

Quick Links

R
INSTALLATION MANUAL
INSTALLATION MANUAL
MONTAGEANLEITUNG
MONTAGEANLEITUNG
VZ-C3D
VZ-C3D
ENGLISH / DEUTSCH
Check out our Internet Homepage for additional information
www.wolfvision.com/support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VZ-C3D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WolfVision VZ-C3D

  • Page 1 INSTALLATION MANUAL INSTALLATION MANUAL MONTAGEANLEITUNG MONTAGEANLEITUNG VZ-C3D VZ-C3D ENGLISH / DEUTSCH Check out our Internet Homepage for additional information www.wolfvision.com/support...
  • Page 2: Please Observe The Following

    ENGLISH Precautions WARNING! CAUTION Risk of electric shock Double pole / neutral fusing. Dangerous voltage inside ATTENTION Double pôle / fible sur le neutre Please observe the following: CAUTION! INSTALLATION AND SERVICING OF THE VISUALIZER MUST BE PERFORMED BY QUALIFIED SERVICE/INSTALLATION PERSONNEL FOLLOWING THE MANUFACTURER'S INSTALLATION INSTRUCTIONS AND IN COMPLIANCE WITH THE NATIONAL ELECTRIC CODE, ALL LOCAL BUILDING AND SAFETY CODES AND ALL OTHER APPLICABLE CODE PROVISIONS OR REGULATIONS.
  • Page 3: Worldwide Patents

    No part of this document may be copied, reproduced, or transmitted by any means, without prior written permission from WolfVision. Except documentation kept by the purchaser for backup purposes. In the interest of continuing product improvement, WolfVision reserves the right to change product specifications without notice.
  • Page 4: Symbol Legend

    Read through the entire Installation Manual before beginning with the installation ! Ceiling Preparation Due to the diverse installation possibilities of our ceiling mounting bracket, WolfVision kindly requires you to mount the appliance only on a concrete ceiling capable of carrying heavy load. Please study the following installation steps carefully.
  • Page 5: Installation Position

    It is very important to know which image sizes you would like to pick up with the Ceiling Visualizer before installing the unit, in order to correctly calculate the respective mounting height. Please refer to the calculation program on WolfVision's homepage (see page 5). Distance to image center The table shows the distance which is called "x"...
  • Page 6 Calculation program on WolfVision Homepage A very useful method to calculate the exact positioning and the possible image sizes is a dedicated calculation program on WolfVision's homepage: www.wolfvision.com (Support) Installation of an Additional Ceiling Mount (third-party) If the Visualizer needs to be suspended further from the ceiling than with the supplied ceiling mount (in order to allow greater magnification), a standard ceiling mount or ceiling lift for projectors may be used.
  • Page 7 Dimension of the Ceiling Mount Assembly (see list for dimensions in inches) Inch 0.709 0.945 3.937 5.945 6.969 7.913 9.055 10.630 479,5 18.878 Dimension of the Ceiling Visualizer (see list for dimensions in inches) 479,5 Installation in suspended ceilings: For normal operation, only a hole in the ceiling panel for camera and light is required. Everything else may be covered.
  • Page 8 Installation of WolfVision‘s Ceiling Mount Mounting the Visualizer on the ceiling using WolfVision's ceiling mount can be done very quickly and easily. IMPORTANT! The ceiling mount must be affixed directly to concrete with three steel anchors as illustrated, to ensure a secure mounting and operation of the Visualizer! Ensure that the ceiling construction is able to carry a weight of 26kg (58lbs) and that possible collision accidents are prevented.
  • Page 9 EVENT SHALL WOLFVISION BE LIABLE TO ANY PERSON FOR ANY CONSEQUENTIAL, INDIRECT EXEMPLARY, SPECIAL OR PUNITIVE DAMAGES OR DAMAGES FOR LOST PROFITS. WOLFVISION SHALL IN NO EVENT BECOME LIABLE FOR ANY DAMAGES ARISING OUT OF OR IN CONNECTION WITH A FAULTY INSTALLATION DUE TO (1) THE USE OF...
  • Page 10 The Visualizer can be finely-adjusted if necessary. By loosening all three hex nuts the unit can be turned by 15 degrees to the left or right (please make sure that all three hex nuts are tightened after re-adjustment). The Visualizer can also be moved backwards or forwards +/- 10mm (0.39") by loosening the three mounting plate hex nuts on the steel anchors (please make sure that the mounting plate hex nuts are tightened again after re-adjustment).
  • Page 11: Manual Height Adjustment

    It is only necessary to conduct the Height Adjustment procedure once, unless the distance between the Visualizer and working surface is changed For usual installations, WolfVision recommends to use the function “Auto Height Adjustment”. Should the unit be unable to adjust itself (e.g. bright ambient light), please use the “Manual Height Adjustment” instead.
  • Page 12 Dismantling of the Visualizer Should it be required to dismantle the Ceiling Visualizer due to re-location or after sales service, please follow the drawings below. Push the cable cover carefully upwards and disconnect all cables from the Visualizer. The cable cover is secured to the Visualizer by a rope to prevent it dropping down.
  • Page 13 DEUTSCH Vorsichtsmaßnahmen WARNUNG! Elektroschockrisiko VORSICHT gefährliche Spannungen Doppelpolig / Neutral Absicherung im Geräteinneren Angeführte Vorsichtsmaßnahmen unbedingt beachten: DAS GERÄT DARF NUR VON AUTORISIERTEN UND GESCHULTEN FACHKRÄFTEN NACH LOKAL GÜLTIGEN SICHERHEITSVORSCHRIFTEN MONTIERT UND GEWARTET WERDEN. DAS GERÄT NUR MIT DER AUF DEM TYPENSCHILD ANGEGEBENEN SPANNUNG BETREIBEN ! DAS GERÄT VOR HITZE UND FEUCHTIGKEIT SCHÜTZEN ! DAS GERÄT VOR ERSCHÜTTERUNG SCHÜTZEN ! Bitte darauf achten, dass eine ausreichende Luftzirkulation zur Kühlung des Gerätes möglich ist...
  • Page 14 Warenzeichen der WolfVision Holding AG, Austria. Dieses Dokument darf ohne vorherige schriftliche Zustimmung von WolfVision weder als Ganzes noch in Teilen mit irgendwelchen Mitteln kopiert, reproduziert oder übertragen werden. Ausgenommen sind Kopien, die vom Benutzer zu Sicherungszwecken aufbewahrt werden.
  • Page 15: Symbol- Und Hinweiserklärung

    Vorbereitung der Decke Aufgrund der breiten Palette von Installationsmöglichkeiten unseres Deckenhängers schreibt die Firma WolfVision vor die Montage nur an einer tragfähigen Betondecke durchzuführen. Lesen Sie bitte die folgenden Installationsschritte gründlich durch. Sollten Sie eine spezielle (nicht in der Installationsanleitung angeführte) Lösung benötigen, bitten wir Sie um Abklärung mit unseren Händlern.
  • Page 16 Installationsposition Ein Unterschied zu herkömmlichen Visualizer Modellen ist, dass die Abmessungen des kleinsten und größten Bildes, die das Gerät abtasten kann, nicht fix sind. Es hängt davon ab, wie hoch der Decken Visualizer über der Arbeitsfläche montiert wird. Es muss daher unbedingt vor der Montage abgeklärt werden, welche Bildgrößen abgetastet werden sollen, um zu entscheiden, in welcher Distanz zur Arbeitsfläche und auf welche Weise der Decken Visualizer montiert werden soll.
  • Page 17 Rechenprogramm auf WolfVision Homepage Eine sehr komfortable Möglichkeit, die exakte Position und abtastbaren Bildgrößen des Decken Visualizers zu berechnen, bietet ein spezielles Programm auf der WolfVison Homepage: www.wolfvision.com (Support) Installation mit einem zusätzlichen Deckenhänger (Fremdhersteller) In extrem hohen Räumen ist möglicherweise das kleinste Bild, welches das Gerät abtasten kann, nicht klein genug.
  • Page 18 Abmessungen des Deckenhängers Abmessungen des Decken Visualizers 479,5 Einbau in abgehängte Decken: Für den normalen Betrieb ist nur eine Ausnehmung für den Licht-/Bildauslass in der Decke erforderlich. Alles andere kann abgedeckt werden. Für Servicezwecke sollte das gesamte Gerät zugänglich sein. WICHTIG Für eine ausreichende Belüftung ist zu sorgen, andernfalls kann es zu einer Beschädi- gung des Gerätes kommen.
  • Page 19 Deckenmontage mit dem WolfVision-Deckenhänger Der Decken Visualizer lässt sich sehr schnell und komfortabel mit dem Deckenhänger von WolfVision an der Decke befestigen. WICHTIG! Die Fixierung an der Decke erfolgt durch die Anbringung des Deckenhängers an eine Betondecke. Montieren Sie den Deckenhänger an der Decke mit drei Stahlankern wie abgebildet.
  • Page 20 Die Kabelabdeckung ist in den Illustrationen nicht dargestellt um die Übersichtlichkeit zu erhöhen. Abb.2 fixieren Abb.3 HAFTUNGSAUSSCHLUSS! WolfVision übernimmt keine Haftung, wenn minderwertiges Material verwendet, eine nicht tragfähige Decke gewählt oder bei der Montage der Deckenbefestigung Fehler gemacht werden!
  • Page 21 Der Visualizer kann, wenn nötig, noch feinjustiert werden. Durch Lockern aller drei Hex-Muttern kann der Visualizer um 15° nach rechts oder links gedreht werden (alle Klemmmuttern anschließend wieder fixieren). Durch Lockern der drei Befestigungsmuttern an den Stahlankern zur Decke kann der Visualizer um +/- 10mm vor- oder zurückgesetzt werden (Befestigungsmuttern anschließend wieder fixieren).
  • Page 22 Diese Einstellung ist nur einmalig vorzunehmen - bei der Installation des Gerätes, außer der Abstand zwischen Visualizer und Arbeitsfläche wird verändert Für die meisten Installationen empfiehlt WolfVision die Funktion „Automatischer Höhenabgleich”. Sollte der Visualizer die Justage nicht zufriedenstellend ausführen können (z.B. sehr helles Umgebungslicht), so benutzen Sie bitte den manuellen Höhenabgleich stattdessen.
  • Page 23 Demontage des Decken Visualizers Sollte es aufgrund eines Umzugs oder Servicefalles nötig sein, den Decken Visualizer zu demontieren, dann gehen Sie bitte Schritt für Schritt folgende Anleitung durch: Kabelabdeckung vorsichtig nach oben schieben und abnehmen und dann alle Kabel vom Visualizer abstecken.
  • Page 24 Ottawa Tel: +1(613)741-9898, Toll free: 877-513-2002, Fax: +1(613)741-3747 E-Mail: wolfvision.canada@wolfvision.com United Kingdom WolfVision UK Ltd. Maidenhead Tel: +44 1628 509067, Fax: +44 1628 509100 E-Mail: wolfvision.uk@wolfvision.com Internet Homepage: www.wolfvision.com E-Mail to technical support: support@wolfvision.com Printed in Austria - August 2014...
