INSTALLATION MANUAL

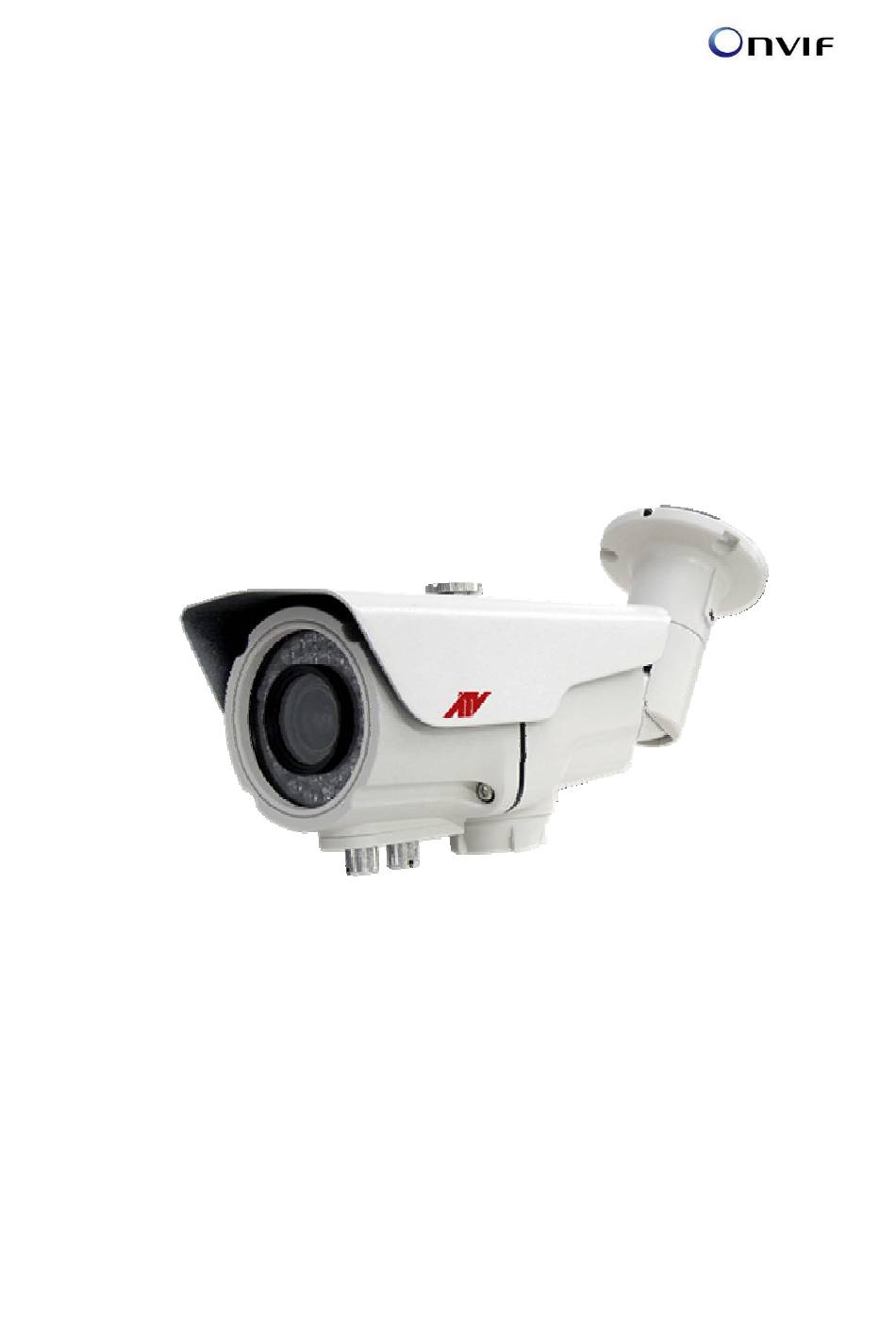

3MP IP BULLET
CAMERA: IPB3TI
Please read this manual thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPB3TI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Onvif IPB3TI

  • Page 1 INSTALLATION MANUAL 3MP IP BULLET CAMERA: IPB3TI Please read this manual thoroughly before use and keep it handy for future reference.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX- POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturers in- structions.
  • Page 5: Table Of Contents

    Contents 1 Introduction 1.1 Components ........1.2 Key Features .
  • Page 6: Introduction

    1 Introduction This installation manual applies to the IPB3TI network camera. The network camera is fully featured for security surveillance and remote monitoring needs. It is based on the DSP compression chip, and makes it available on the network as real- time, full frame rate Motion JPEG and H.264 video streams.
  • Page 7: Key Features

    This is a global interface standard that makes it easier for end users, integrators, con- sultants, and manufacturers to take advantage of the possibilities offered by network video technology. ONVIF enables interoperability between different vendor products, increased flexibility, reduced cost, and future-proof systems.
  • Page 8: Installation

    2 Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer.
  • Page 9 • Installing Camera To mount the bullet camera, fix the base of the camera with the three screws provided in the accessory kit.
  • Page 10: Connection

    2.2 Connection • Micro SD memory slot on the Bottom Board Remove the cap at bottom of the camera to insert the SD memory card. • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.
  • Page 11: Resetting To The Factory Default Settings

    2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of the Operation Manual) or use the Reset button on the network camera inside the bottom cap. •...
  • Page 12: A Appendix

    A Appendix Product Specification Model Network Camera Varifocal 2.8mm ∼ 12.0mm, F1.4, DC IRIS Lens (H) ∼ 37 Angle of View Type 1/2.8” Sony Exmor CMOS Image Sensor Pixels 2048(H) x 1536(V) Color: 0.1 Lux @ F1.4 Min. Illumination B/W: 0 Lux @ F1.4 Scanning Mode Progressive Scan Wide Dynamic Range...
  • Page 13 UPnP, RTP, RTSP,RTCP, DHCP, ARP, Zeroconf, Bonjour Client Software Web, SmartManager, Client S/W, Mobile S/W Network Max. User Connection Live : 10 Users, Playback : 3 Users API Support Open API, ONVIF Compliance Mobile Support Android, i-OS Audio 1 Input, 1 Output (Terminal Block) External Alarm...
  • Page 14 3MP IP BULLET CAMERA: IPB3TI Rev.A...
