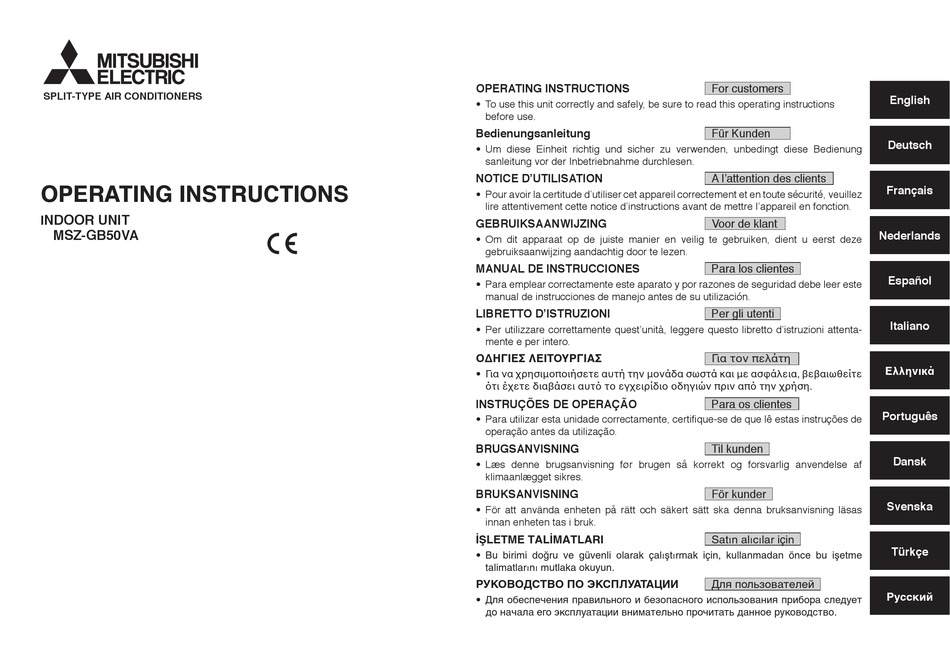

SPLIT-TYPE AIR CONDITIONERS
OPERATING INSTRUCTIONS
NDOOR UNIT
I
MSZ-GB50VA
OPERATING INSTRUCTIONS
• To use this unit correctly and safely, be sure to read this operating instructions
before use.
Bedienungsanleitung
• Um diese Einheit richtig und sicher zu verwenden, unbedingt diese Bedienung
sanleitung vor der Inbetriebnahme durchlesen.
NOTICE D'UTILISATION
• Pour avoir la certitude d'utiliser cet appareil correctement et en toute sécurité, veuillez
lire attentivement cette notice d'instructions avant de mettre l'appareil en fonction.
GEBRUIKSAANWIJZING
• Om dit apparaat op de juiste manier en veilig te gebruiken, dient u eerst deze
gebruiksaanwijzing aandachtig door te lezen.
MANUAL DE INSTRUCCIONES
• Para emplear correctamente este aparato y por razones de seguridad debe leer este
manual de instrucciones de manejo antes de su utilización.
LIBRETTO D'ISTRUZIONI
• Per utilizzare correttamente quest'unità, leggere questo libretto d'istruzioni attenta-
mente e per intero.
Ο∆ΗΓΙΕΣ ΛΕΙΤΟΥΡΓΙΑΣ
• Για να χρησιµοποιήσετε αυτή την µονάδα σωστά και µε ασφάλεια, βεβαιωθείτε
τι έχετε διαβάσει αυτ το εγχειρίδιο οδηγιών πριν απ την χρήση.
INSTRUÇÕES DE OPERAÇÃO
• Para utilizar esta unidade correctamente, certiÞ que-se de que lê estas instruções de
operação antes da utilização.
BRUGSANVISNING
• Læs denne brugsanvisning før brugen så korrekt og forsvarlig anvendelse af
klimaanlægget sikres.
BRUKSANVISNING
• För att använda enheten på rätt och säkert sätt ska denna bruksanvisning läsas
innan enheten tas i bruk.
İŞLETME TALİMATLARI
• Bu birimi doğru ve güvenli olarak çalıştırmak için, kullanmadan önce bu işetme
talimatlarını mutlaka okuyun.
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
• Для обеспечения правильного и безопасного использования прибора следует
до начала его эксплуатации внимательно прочитать данное руководство.
For customers
English
Für Kunden
Deutsch
A l'attention des clients
Français
Voor de klant
Nederlands
Para los clientes
Español
Per gli utenti
Italiano
Για τον πελάτη
Ελληνικά
Para os clientes
Português
Til kunden
För kunder
Svenska
Satın alıcılar için
Для пользователей
Русский
Dansk
Türkçe
