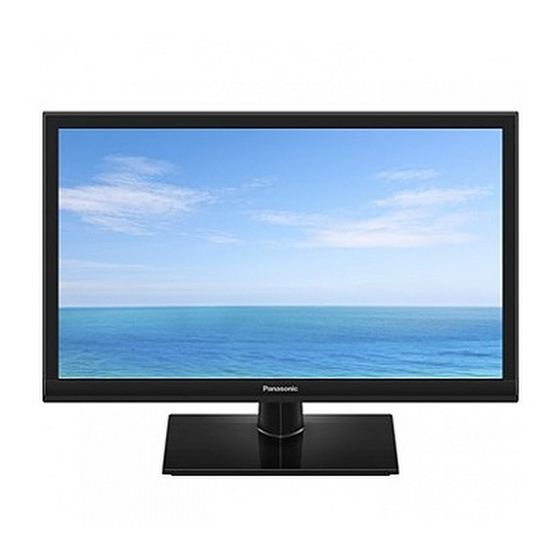

Panasonic Viera TH-24A400H Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Instructions
LED TV
English
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating
this product and retain them for future reference.
The images shown in this manual are for illustrative
purposes only.
Some illustrations are presented as conceptual images
and may be different from the actual products.
Illustrations shown may be different between models
and countries.
Transport only in upright position
Model No.
TH-24A400H
CMX
TQB4GC1190-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viera TH-24A400H and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic Viera TH-24A400H

Summary of Contents for Panasonic Viera TH-24A400H

  • Page 1 Model No. TH-24A400H Operating Instructions LED TV English Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

  • Page 2: Table Of Contents

    Function related to Digital broadcasting will work in and the double-D symbol the areas where the digital terrestrial broadcasting are trademarks of Dolby services are received. Consult your local Panasonic Laboratories. Dealer with coverage areas. ● Not all the features are available depending on the country, area, broadcaster and service provider.

  • Page 3: Safety Precautions

    Ventilation should not be ● Do not use an unapproved pedestal / mounting impeded by covering the equipment. Be sure to ask your local Panasonic dealer ventilation openings with to perform the setup or installation of approved wall- items such as newspapers, hanging brackets.

  • Page 4: Setting Up The

    ■ Setting Up the TV Moving the TV Caution Before moving the TV, disconnect all cables. ■ When not in use for a long time Supplied accessories Caution Accessories may not be placed all together. Take care This TV will still consume some power even in the Off not to throw them away unintentionally.
  • Page 5 Attaching the pedestal Wall mounting the TV (optional) Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket. Rear of the TV (View from the side) Depth of screw Screw for fixing the TV onto the wall-hanging bracket (not supplied) ■...

  • Page 6: Connecting The

    Connecting the TV Connections Aerial and mains lead ● Please ensure the TV is disconnected from the mains socket / power point before attaching or disconnecting Aerial any RF / AV leads. ● External equipment and cables are for illustrative purposes only and not supplied with this TV.
  • Page 7 DVD Recorder / VCR Speaker system Amplifier with speaker system HDMI cable cable HDMI cable RF cable DVD Recorder / ● Use HDMI 2 for connecting an amplifier that has ARC (Audio Return Channel) function. For an amplifier without ARC function, use DIGITAL Set top box AUDIO OUT or AUDIO OUT.

  • Page 8: Initial Setup

    Initial Setup Select [Home]. Please select your viewing environment. Home Shop When you first turn on the TV, a series of steps will pop- up to guide you to setup your TV. ● These steps are not necessary if the setup has been Change completed by your local dealer.

  • Page 9: Operating The

    Operating the TV Input mode selection ● TV - switches to TV input mode. ● AV - displays [Input Selection] screen (p. 11) or press repeatedly to select the input mode. TV Guide (p. 10) Using the remote control Displays subtitles / audio description Displays favourite page in teletext mode POWER MEDIA...

  • Page 10: Using Tv Guide

    Using the TV controls Using TV Guide The TV Guide - Electronic Programme Guide (EPG), shows a list of broadcasts for several days (depending on the broadcasters). ● When this TV is turned on for the first time, or switched off for more than a week, it may take some time before the TV Guide is completely shown.

  • Page 11: Watching External Inputs

    Watching External Starting Media Player Inputs Insert the USB Flash Memory. Start Media Player. MEDIA PLAYER Connect the external equipment. (p. 7) Select the mode. Display the [Input Selection] menu, then select the input of the connected Select equipment. Access Example: [Photo]: Displays the thumbnail of all photos in the Input Selection...
  • Page 12 [View Select] [Option Menu] Lets you toggle between all photos view and folder view. ■ [Music Setup Menu] – [Repeat]: • [One]: Playback repeat on the selected one file. [All photos]: Display all photos. • [Folder]: Playback repeat within the selected folder. [Folder view]: Display the thumbnails grouped by folder.

  • Page 13: Using The Menu Functions

    Using the Menu Picture Functions [Viewing Mode] Sets the picture mode for each input. [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] [Dynamic]: Improves contrast and sharpness for Display the menu. viewing in a bright room. MENU [Normal]: For viewing in a normal lighting condition. [Cinema]: Improves the performance of contrast, black and colour reproduction for watching movies in a Example:...
  • Page 14 [Colour System] [Auto Gain Control] Selects optional colour system based on video signals Automatically regulates large sound level differences in AV mode. [Auto] / [PAL] / [SECAM] / [M.NTSC] / between channels and inputs. [Off] / [On] [NTSC] [Volume Correction] [16:9 Overscan] Adjusts the volume of individual channel or input mode.
  • Page 15 TV. [Off] / [On] [Visually Impaired] – A Panasonic DVD Recorder will not turn off if it is still ■ in the Rec mode. [Speaker] – The TV remains on even if all the HDMI connected Narration sound track is output to the TV speakers.
  • Page 16 [System Menu] [Analogue Manual Tuning] Sets analogue channel manually. ■ [Shipping Condition] Analogue Manual Tuning Resets all settings, including tuning data, to the original condition. Searching Channels – Access this function and follow the on-screen Start Frequency (MHz) 48.00 instructions to complete the procedures. Scan up Scan down –...
  • Page 17 [Skip] • You can set the characters by using the numeric and cursor buttons as follows: Skips or hides unwanted channels. ̺ 0 J K L 5 Select a channel, then reveal / hide. . ! : # 1 M N O 6 A B C 2 P Q R S 7 Skip...

  • Page 18: Additional Information

    Performing [System Update] Additional Information To update automatically Set [Auto Download] and [Auto Install] to [Yes]. Setup Manual OAD Download Auto power standby function Auto Download The TV will automatically go into Standby mode in the Auto Install following conditions: ●...
  • Page 19 Displays a 16:9 letterbox or 4:3 image without distortion. available. ■  This TV supports this container recorded with [Zoom2] Displays a 16:9 letterbox (anamorphic) image full- Panasonic products. For details, read the manual of screen without distortion. the products. ■ [Zoom3] ■ Subtitles Displays a 2.35:1 letterbox (anamorphic) image full-...

  • Page 20: Troubleshooting

    Turn the TV off with Mains power On / Off switch  operation may damage the data or device. Panasonic (p. 10), then turn it on again. If the problem is not liable for any deterioration or damage of data or persists, initialise all settings.

  • Page 21: Maintenance

    Maintenance General The TV goes into Standby mode. This TV is equipped with auto power standby  First, remove the mains plug from the socket function (p. 18). outlet. The remote control does not work or is Regular care intermittent. Replace the batteries (p.

  • Page 22: Specifications

    Specifications Connection terminals AV1 IN (COMPONENT / VIDEO) VIDEO Model no. RCA PIN Type × 1, 1.0 V[p-p] (75 ) TH-24A400H AUDIO L - R RCA PIN Type × 2, 0.5 V[rms] Power source AC 220 - 240 V, 50/60 Hz 1.0 V[p-p] (including synchronisation) Power consumption (Rated power / Standby power)
  • Page 23 1-9 (PAL B N.Z.) At least three (3) years from delivery of this product, 1-12 (PAL/SECAM D) Panasonic Corporation will give to any third party who 1-12 (NTSC M Japan) contacts us at the contact information provided below, 2-13 (NTSC M USA)
  • Page 24 Warranty Service disposal. purposes. Model Number Serial Number F0414-1054 Web Site: http://panasonic.net © Panasonic Corporation 2014 Printed in Malaysia...
