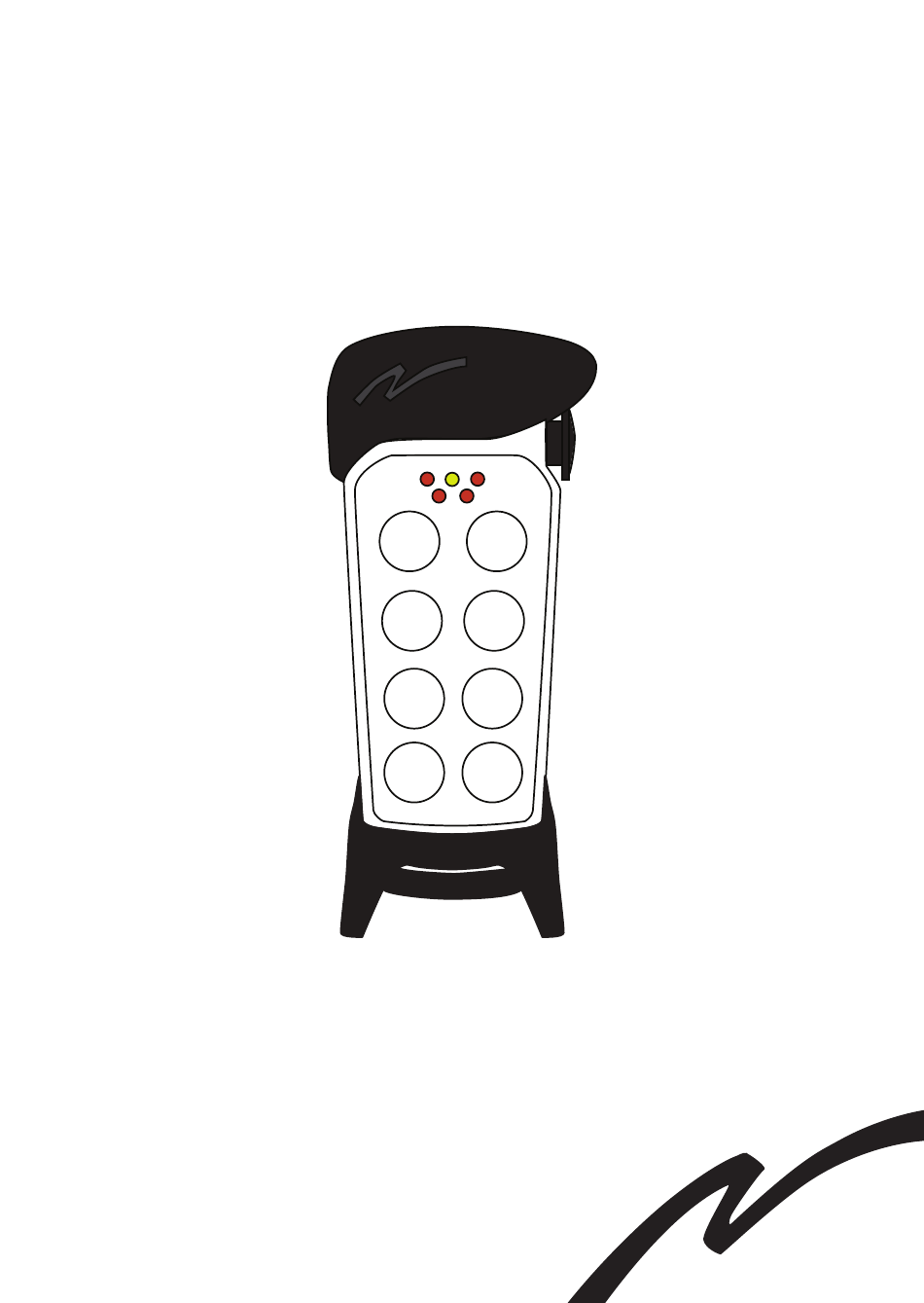

Tele Radio Panther
SAFETY INSTRUCTIONS
LANGUAGE: ENGLISH (ORIGINAL)
CE-IM-PN-RX002-A01-EN
1
1
3
5
7
Standard settings
ARTICLE CODE: PN-R8-1, PN-T7-2
2
2
4
6
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panther PN-R8-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Tele Radio Panther PN-R8-1

Summary of Contents for Tele Radio Panther PN-R8-1

  • Page 1 Tele Radio Panther SAFETY INSTRUCTIONS Standard settings LANGUAGE: ENGLISH (ORIGINAL) ARTICLE CODE: PN-R8-1, PN-T7-2 CE-IM-PN-RX002-A01-EN...
  • Page 3 During the guarantee period, Tele Radio AB may replace the product or faulty parts with new. Work under guarantee must be carried out by Tele Radio AB or by an authorized service centre specified by Tele Radio AB. Make sure that repairs and maintenance are only carried out by qualified personnel.

  • Page 4: Technical Data Receiver

    TECHNICAL DATA RECEIVER R8-1 (BASE BOARD) 7 8 9 10 11 LEDs 5 1 2 3 4 LED6 Relay 5 Relay 1 Relay 2 Relay 3 Relay 4 LED7 LED8 LED9 LED10 WR/5 12-24 V DC (on/off) (kill) (Buzzer) 1. Relay 1- on/off relay 12.

  • Page 5: Current Consumption

    Current consumption RECEIVER MODEL SUPPLY VOLTAGE MAX. CURRENT CONSUMPTION R8-1 12-24 V DC <200 mA. Technical data FUNCTIONAL RELAYS: 5 potential free* functional relays NO/NC 8A ACI NUMBER OF CHANNELS: SIZE: 120 x 116 x 50 mm./ 4.7” x 4.6” x 2” WEIGHT: 400 grams/ 14 oz.

  • Page 6: Led Indications

    LED INDICATIONS LED INDICATIONS DURING START UP All receiver LEDs lit up for 0.5 sec. to show that they are working. Current settings are shown for 2 sec. n relay LEDs 1-4: Relay LED 1 Continuous transmitting mode Discontinuous transmitting mode Relay LED 2 Custom ID not enabled Custom ID enabled...
  • Page 7 LED INDICATIONS DURING OPERATION LED 6 Power to the receiver is on Power to the receiver is off LED 7 No transmitter registered flashes (slow) At least one transmitter is registered and one transmitter is logged in, but not transmitting. flashes (quick) At least one transmitter is registered, but not transmitting.

  • Page 8: Technical Data Transmitter

    TECHNICAL DATA TRANSMITTER 8-BUTTONS TRANSMITTER T7-2 Rubber cover STOP button red LED 1 yellow LED red LED 2 red LED 3 red LED 4 STOP BUTTON TEST IMPORTANT! We recommend that the functionality of the STOP button is being tested at a regular basis: At a minimum, when used for 200 hours.

  • Page 9: Install Batteries

    Technical data T7-2 transmitter NUMBER OF BUTTONS 8 x 2-step pushbuttons BATTERIES 3 x 1.5V AA exchangeable DEGREE OF PROTECTION IP65 NUMBER OF CHANNELS SIZE 7.3 cm. x 17.8 cm./2.9 x 7 in. (excl. rubber cover) WEIGHT 250 g./ 0.55 lbs. (excl.

  • Page 10: Standard Settings

    STANDARD SETTINGS DEFAULT STATE • discontinuous radiotransmission • no on/off function The system will start transmitting as soon as the batteries are inserted, the stop button is pulled out and a transmitter button is pressed. Radio transmission will end when no transmitter button is being pressed. START THE TRANSMITTER Pull out the stop button.
  • Page 11 ERASE ALL TRANSMITTERS FROM THE RECEIVER Press the Function button until LED 7 lights. Press the Select button until red LED 1-5 light. Keep pressed until LED 7 and the relay LEDs 1-5 go out. NOTE! If red LED 7 flashes slowly, one or several transmitters are still registered in the receiver.

  • Page 12: Fcc Ic Information

    FCC IC INFORMATION The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Toute modification apportée à cet appareil qui ne serait pas approuvée expressément par (applicant name) peut invalider l’habilitation de l’utilisateur à...
  • Page 13 TRANSMITTER LABEL PLACEMENT IC ID label FCC ID label CE label FCC information label...

  • Page 14: Battery Precautions

    BATTERY PRECAUTIONS Observe the following general battery warnings. • As batteries contains flammable substances such as lithium or other organic solvents, they may cause heating, rupture or ignition. • Risk of explosion if battery is replaced with a bat- tery of an incorrect type. •...

  • Page 15: Rohs And Weee

    During the guarantee period, Tele Radio may replace the product or faulty parts. Work under guarantee must be carried out by Tele Radio or by an authorized service centre specified by Tele Radio. This is not covered by the guarantee: Faults resulting from normal wear and tear.
  • Page 16 TELE RADIO AB Sweden, Main office Tel. +46 (0)31-748 54 60 www.tele-radio.com e-mail: info@tele-radio.com TELE RADIO ASIA TELE RADIO TURKEY TELE RADIO SVERIGE TELE RADIO GmbH China Turkey Sweden Germany Tel. +86-(0)592-3111168 Tel. +90 216 574 22 94 Tel. +46 (0)31-724 98 00 Tel.
