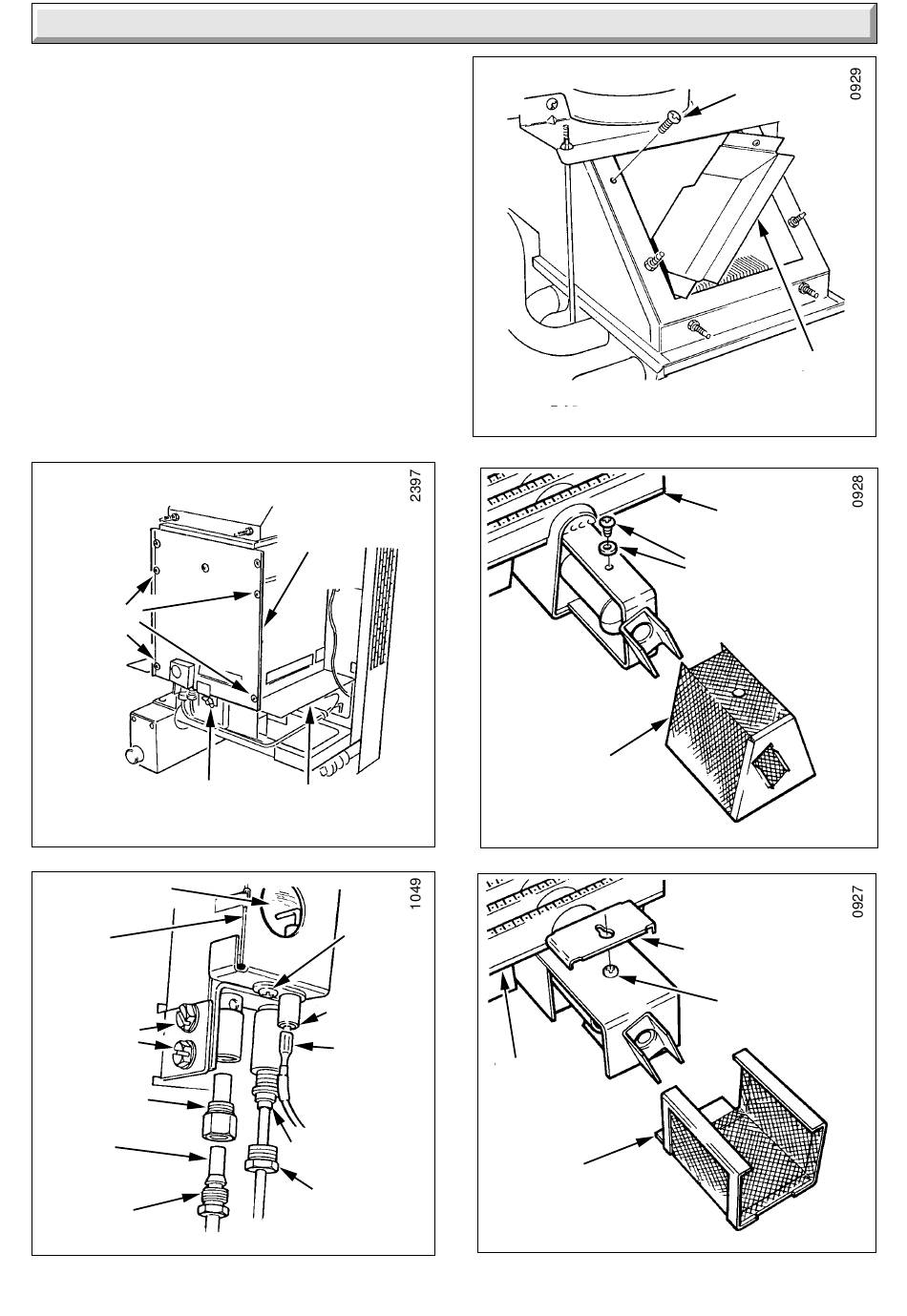

Glow-worm economy plus c 50 Instructions For Use, Installation & Servicing page 15

7.3 Main Injector
Generally follow the instructions given in Section 7.1.
With the main burner removed the injector can be unscrewed
and replaced as necessary, using a new sealing washer.
If cleaning do not use a wire or sharp instrument on the hole.
When replacing the main burner make sure that it is pushed fully
home onto the injector and that the guides are engaged on the
injector manifold.
SECURING
SCREWS
WING NUT
ACCESS FOR SERVICING
MICA WINDOW
PILOT
SHIELD
SECURING
SCREWS
PILOT
INJECTOR
ADAPTOR
OLIVE
PILOT
TUBING
NUT
PILOT ASSEMBLY
7 Servicing and Replacement of Parts
COMBUSTION
CHAMBER
FRONT
PANEL
SIDE BAFFLES
Diagram 7.2
M3
SCREW
ELECTRODE
IGNITION
LEAD
(clear end)
THERMOCOUPLE
THERMOCOUPLE
NUT
Diagram 7.3
DRAUGHT DIVERTER
AND BAFFLE
LINT ARRESTER
LINT ARRESTER
(BRAY)
BURNER
ASSEMBLY
LINT
ARRESTER
LINT ARRESTER
(FURIGAS)
15
BAFFLE
SECURING
SCREW(S)
DRAUGHT
DIVERTER
BAFFLE
Diagram 7.4
BURNER
ASSEMBLY
LINT ARRESTER
SECURING SCREW
AND WASHER
Diagram 7.5
LINT ARRESTER
SECURING PLATE
SCREW-
LOOSEN ONLY
Diagram 7.6
221462C
