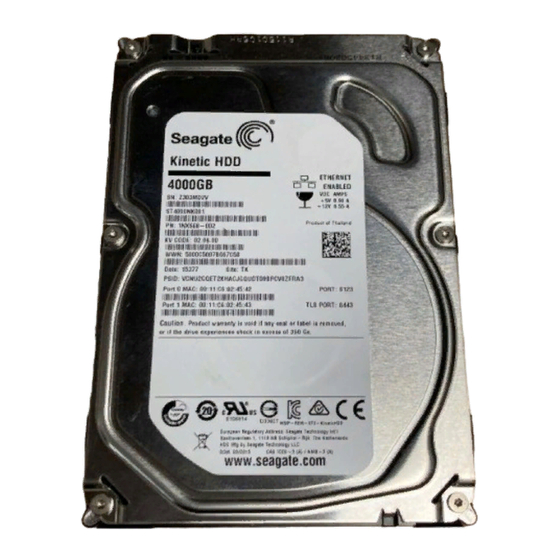

- Page 1 Product Manual Seagate Kinetic HDD ® Standard model ST4000NK001 100764174 Rev. B February 2015...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools is a trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 Fluid Dynamic Bearing (FDB) Motor Acoustics ................. 11 Table 10. Radio Frequency Environments ....................11 Table 11. AFR and MTBF Specifications ....................12 Table 12. Ethernet Enabled SAS Connector Pin Definitions ..............20 Table 13. Kinetic PDU Structure ........................ 22 Seagate Kinetic HDD Product Manual, Rev. B...
- Page 5 Command Embedded Message ..........23 Seagate Kinetic HDD Product Manual, Rev. B...
-
Page 6: Seagate® Technology Support Services
Authorized Service Centers • For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM and Distribution partner portal, visit: http://www.seagate.com/partners/ For Seagate reseller portal, visit: http://www.seagate.com/partners/my-spp-dashboard/ Seagate Kinetic HDD Product Manual, Rev. B... -
Page 7: Introduction
• Allows direct TCP/IP communication from any node in the network to the storage device • Eliminates traditional storage server needs as protocol communication • Retains the standard SAS hardware interface connector to provide system builder adaptability, while enabling Ethernet Seagate Kinetic HDD Product Manual, Rev. B... -
Page 8: Drive Specifications
20 to 60 I/O data-transfer rate (MB/s max) HYSICAL HARACTERISTICS Table 3: Physical Characteristics Weight: (maximum) Kinetic 4TB Model 608g (1.34 lb) Cache buffer 64MB (67,108,864B) 512 MB (536,870,912B) Software-on-Chip Marvell ARMADA 370 Seagate Kinetic HDD Product Manual, Rev. B... -
Page 9: Power Specifications
10MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note 2.4.3 Voltage Tolerance Voltage Tolerance (including noise): • 5V ± 5% • 12V ± 10% Seagate Kinetic HDD Product Manual, Rev. B... -
Page 10: Environmental Limits
–40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. Figure 1 Location of HDA Temperature Check Point... -
Page 11: Humidity
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. Table 8: Non-Operating Vibration Specifications 10 Hz to 500 Hz Linear Random 4.9 Grms ref Seagate Kinetic HDD Product Manual, Rev. B... -
Page 12: Acoustics
ONES Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 13: Reliability
From this page, click on the “Check to see if the drive is under Warranty” link. The following are required to be provided: the drive serial number, model number (or part number) and country of purchase.The system will display the warranty information for the drive. Preventive maintenance None required. Seagate Kinetic HDD Product Manual, Rev. B... -
Page 14: Agency Certification
2.10.2 Electromagnetic compatibility The Seagate Kinetic HDD hard drives are tested to a Class A standard per the CISPR 22 specification. Per the CISPR 22 specification “Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. -
Page 15: Environmental Protection
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. -
Page 16: Product Warranty
Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. Seagate will pay for transporting the repair or replacement item to the customer. -
Page 17: Configuring And Mounting The Drive
• Do not over tighten the mounting screws (maximum torque: 6 inch-lb). Weight: 608g (1.34 lb) These dimensions conform to the Small Form Factor Standard documented Note in SFF-8301 and SFF-8323 found at www.sffcommittee.org Seagate Kinetic HDD Product Manual, Rev. B... -
Page 18: Drive Configurations
When the Kinetic drives are connected to the local network with DHCP server, IP addresses will be self-assigned to each of the ports. Obtaining drive information, performing drive firmware updates, and other tools for drive configurations are provided in the Kinetic Python tools Github Repository: https://github.com/Seagate/kinetic-py-tools. Seagate Kinetic HDD Product Manual, Rev. B... -
Page 19: Ethernet Enabled Interface
ONNECTOR HYSICAL NTERFACE Figures 4.1.1 and 4.1.2 provide the dimensions of the SAS connector. Details of the physical, electrical, and logical characteristics are provided within this section. Figure 3 SAS Device Plug Dimensions Seagate Kinetic HDD Product Manual, Rev. B... -
Page 20: Figure 4 Detailed Sas Device Plug Dimensions
Figure 4 Detailed SAS Device Plug Dimensions Seagate Kinetic HDD Product Manual, Rev. B... -
Page 21: Table 12. Ethernet Enabled Sas Connector Pin Definitions
Figure 4.1.3 shows the pin locations for the SAS connector pin and Table 4.1.1 represents the Ethernet Enabled SAS Connector Pin Definitions for the Seagate Kinetic HDD. Figure 5 SAS Connector Pin Locations Table 12: Ethernet Enabled SAS Connector Pin Definitions... -
Page 22: Key/Value Protocol
• getKeyRange – Get a list of keys in lexicographical order based on the specified key range • getMetadata – Get metadata for the specified key Host applications communicate with the Kinetic drives by sending Kinetic Protocol Data Units over a network using TCP. Seagate Kinetic HDD Product Manual, Rev. B... -
Page 23: Kinetic Protocol Data Unit
The Kinetic Message. 9 + length of Bytes <= 1 MiB The value. Kinetic Message Figure 5.2.1 shows a visual of how the Kinetic PDU is structured. Figure 7 Kinetic Protocol Data Unit Message Packet Seagate Kinetic HDD Product Manual, Rev. B... -
Page 24: Kinetic Message
