Summary of Contents for Seagate ST3000VX005

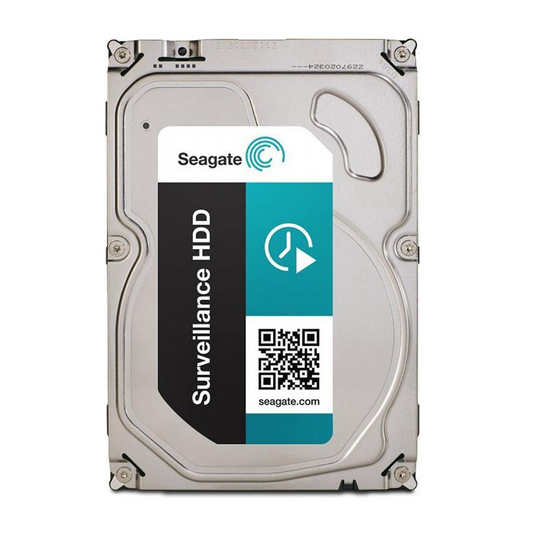

- Page 1 Surveillance Product Manual ST3000VX005 ST1000VX003 ST2000VX005 100763729, Rev. D June 2015...
-
Page 2: Document Revision History
States and/or other countries. AccuTrac, OptiCache and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners. -
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 Mounting dimensions (1TB model) ..........25 Seagate Surveillance +SRS HDD Product Manual, Rev. D...
-
Page 5: Seagate Technology Support Services
Authorized Service Centers For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM and Distribution partner portal, visit: http://www.seagate.com/partners For Seagate reseller portal, visit: http://www.seagate.com/partners/my-spp-dashboard/ Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 6: Introduction
• Native Command Queuing with command ordering to increase performance in demanding applications • Full-track multiple-sector transfer capability without local processor intervention • Seagate AcuTrac™ servo technology delivers dependable performance, even with hard drive track widths of only 75 nanometers. -
Page 7: About The Serial Ata Interface
Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.2”. The specification can be downloaded from www.sata-io.org. Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 8: Drive Specifications
Power-on to ready (max) <17s <6s Standby to ready (max) <17s <6s <1.0ms read; Track-to-track seek time (typical) <1.2ms write <8.5ms read; Average seek (typical) <9ms write 1.2A Startup current (typical) 12V (peak) 1.8A Seagate Surveillance +SRS HDD Product Manual, Rev. D... - Page 9 *One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. **During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels Seagate Surveillance +SRS HDD Product Manual, Rev. D...
-
Page 10: Formatted Capacity
1807kFCI Track density (avg) 352ktracks/in Areal density (avg) 625Gfc/in Spindle speed (RPM) 5900 ± 0.2% Internal data transfer rate (max) 2147Mb/s Sustained data transfer rate (max) 159MB/s I/O data-transfer rate (max) 600MB/s Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 11: Physical Characteristics
(such as track-to-track and average), are expected to meet the noted values. Note However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications. Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 12: Start/Stop Times
Idle mode power is measured with the drive up to speed, with servo electronics active and with the heads in a random track location. • Standby mode During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/ write electronics are in power-down mode. Seagate Surveillance +SRS HDD Product Manual, Rev. D... - Page 13 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Measurement was taken in Idle 1 mode. †5W IDLE, Standby and Sleep, with DIPLM enabled Seagate Surveillance +SRS HDD Product Manual, Rev. D...
-
Page 14: Figure 1 Typical Current Profiles (5V)
Figure 1 Typical Current Profiles (5V) Figure 2 Typical Current Profiles (12V) Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 15: Conducted Noise
Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary. Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 16: Environmental Specifications
The nonoperating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 300 Gs (for 3TB and 2TB model) and 350 Gs (for 1TB) based on a nonrepetitive half-sine shock pulse of 2ms duration. Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 17: Vibration
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389- 7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 18: Electromagnetic Immunity
• Normal I/O duty cycle for consumer electronics environments. Operation at excessive I/O duty cycle may degrade product reliability. The Surveillance environment of power-on-hours, temperature, and I/O duty cycle affect the product MTBF. The MTBF will be degraded if used in an enterprise application. Seagate Surveillance +SRS HDD Product Manual, Rev. D... - Page 19 Data Recovery Service – 3-year coverage (concurrent with bare drive warranty) If you suffer a data loss event within the three year Seagate Rescue Data Recovery warranty period, and you are eligible to participate in and submit a case under the Rescue program, contact SRS at (1-800-723-1183) in the US, or if you are calling from outside the US please visit our website for numbers in your local and language: http://www.seagate.com/contacts/contact-numbers/.
- Page 20 Judicial Arbitration and Mediation Services. Each party will bear its own costs in arbitration, provided that Seagate reserves the right, in its discretion, to pre-pay certain fees you may incur in connection with the arbitration subject to refund if you do not prevail.
-
Page 21: Agency Certification
EN55022, Class B and the immunity levels are defined by EN55024. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. -
Page 22: 2.13.3 Fcc Verification
As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. -
Page 23: Environmental Protection
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. -
Page 24: Configuring And Mounting The Drive
Figure 3 Figure 3 Attaching SATA cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. Seagate Surveillance +SRS HDD drives support latching SATA connectors. Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 25: Drive Mounting
2x 0.125 in 3.18 mm 4X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH 0.15 MAXIMUM FASTENER PENETRATION 2x 3.750 in 95.25 mm Note. Image is for reference only, and may not represent actual drive. Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 26: Figure 5 Mounting Dimensions (1Tb Model)
2x 0.125 in 3.18 mm 4X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH 0.15 MAXIMUM FASTENER PENETRATION 2x 3.750 in 95.25 mm Note. Image is for reference only, and may not represent actual drive. Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 27: Serial Ata Interface
For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. Hot-Plug compatibility Seagate Surveillance +SRS HDD drives incorporate connectors which enable users to hot plug these drives in accordance with the Serial ATA Revision 2.5 specification. This specification can be downloaded from www.serialata.org. -
Page 28: Supported Ata Commands
Idle Idle Immediate Initialize Device Parameters Read Buffer Read DMA Read DMA Extended Read DMA Without Retries Read FPDMA Queued Read Log Ext Read Multiple Read Multiple Extended Read Native Max Address Seagate Surveillance +SRS HDD Product Manual, Rev. D... - Page 29 S.M.A.R.T. Enable Operations / D8 S.M.A.R.T. Execute Offline / D4 S.M.A.R.T. Read Attribute Thresholds / D1 S.M.A.R.T. Read Data / D0 S.M.A.R.T. Read Log Sector / D5 S.M.A.R.T. Return Status / DA Seagate Surveillance +SRS HDD Product Manual, Rev. D...
- Page 30 Write FPDMA Queued Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Stream DMA Extended Write Stream Extended Write Uncorrectable Seagate Surveillance +SRS HDD Product Manual, Rev. D...
-
Page 31: Identify Device Command
0200 Retired 0200 Words 54–58, 64–70 and 88 are valid 0007 Number of current logical cylinders xxxx Number of current logical heads xxxx Number of current logical sectors per logical track xxxx Seagate Surveillance +SRS HDD Product Manual, Rev. D... - Page 32 = 1000000100101 binary) Command sets enabled 34xx Command sets enabled BE01 Command sets enable extension 4133 Ultra DMA support and current mode (see note following this 00A4 table) Security erase time 00A4 Seagate Surveillance +SRS HDD Product Manual, Rev. D...
- Page 33 Multiword DMA mode 2 is supported. Multiword DMA mode 0 is currently active. Multiword DMA mode 1 is currently active. Multiword DMA mode 2 is currently active. Word 84 SMART error login is supported. Seagate Surveillance +SRS HDD Product Manual, Rev. D...
- Page 34 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Surveillance +SRS HDD Product Manual, Rev. D...
-
Page 35: Set Features Command
Disable use of SATA features. Enable read look-ahead (read cache) feature (default). Report full capacity available. At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate Surveillance +SRS HDD Product Manual, Rev. D... -
Page 36: Commands
S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate Surveillance +SRS HDD Product Manual, Rev. D... - Page 37 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100763729, Rev. D...
