Cutout Dimensions

PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides or rear.
However, the front grille must NOT be obstructed and
clearance is required for an electrical connection in the
rear.
!
CAUTION
Unit can NOT be installed behind a closed cabinet
door.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Never use an extension cord to connect power to
the unit.

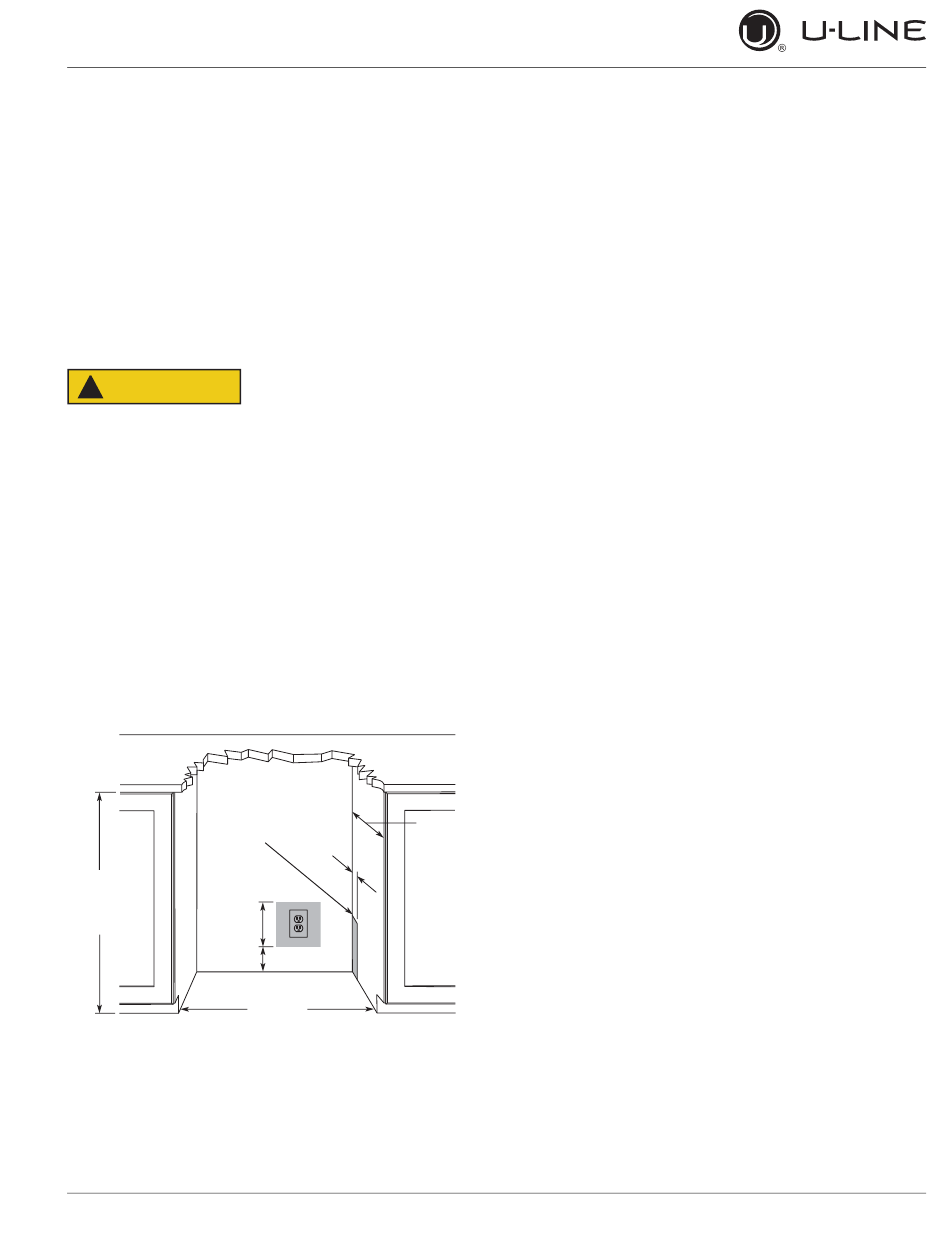

CUT-OUT DIMENSIONS
Preferred location
for electrical
outlet is in
adjacent
cabinet.
32"
(813 mm)
to
33"
7"
(838 mm)
(178 mm)
4"
(102 mm)
24"
5/8" (610 mm)
(16 mm)
24-1/4"
(616 mm)
