Grille - Plinth Installation
REMOVING AND INSTALLING GRILLE
!
WARNING
Disconnect electric power to the unit before
removing the grille.
!
WARNING
DO NOT touch the condenser fins. The condenser
fins are SHARP and can be easily damaged.
REMOVING THE GRILLE
1. Disconnect power to the unit.

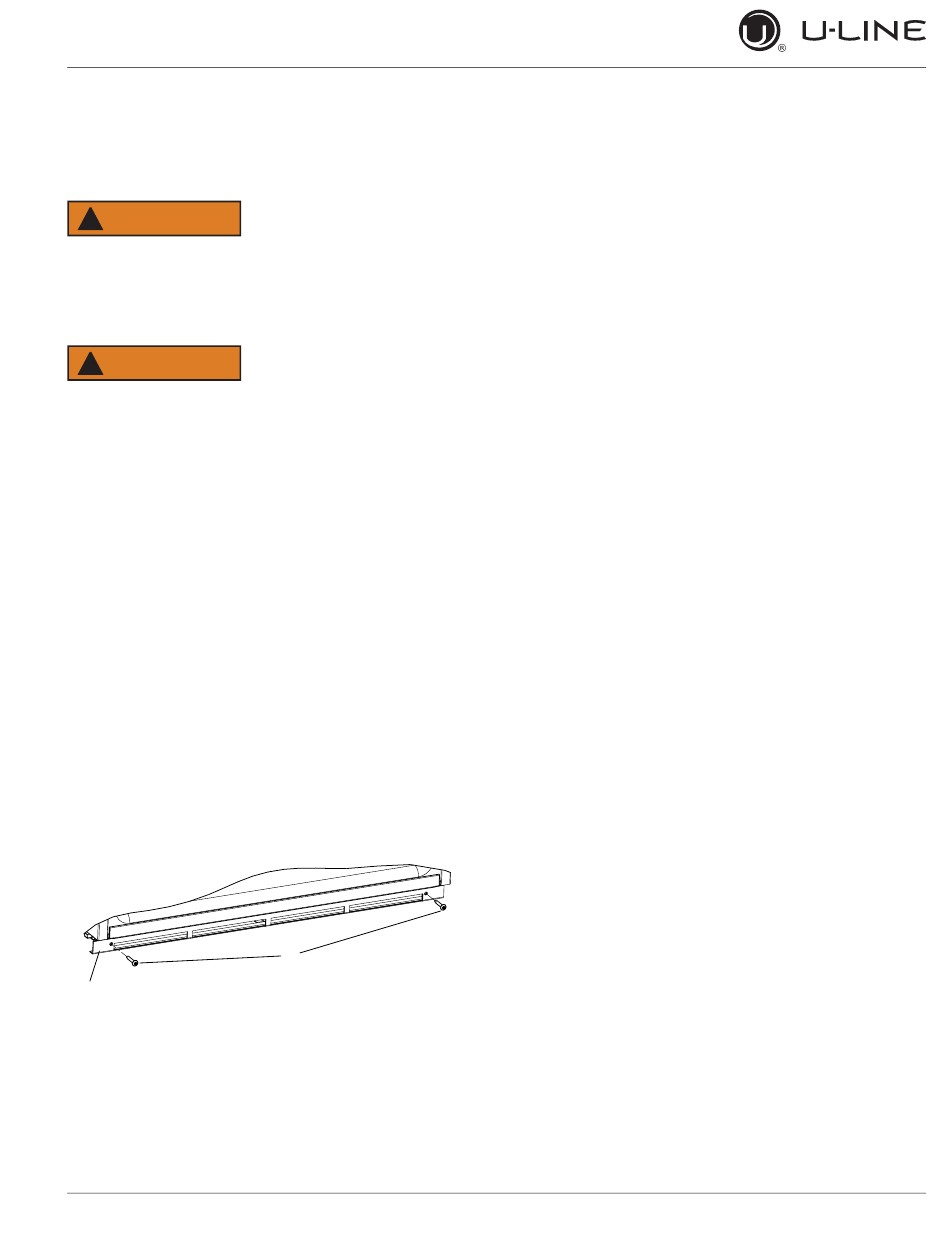

2. Loosen the two screws (1). Some models may have
only one screw in the center.
3. Remove grille (2) and grille cap from unit.
INSTALLING THE GRILLE
1. Align cabinet and grill holes and secure, but do not
overtighten grille screws (1).
2. Reconnect power to the unit.
2
1
