SolarGoesGreen SGG-F156-3R Instructions

SolarGoesGreen SGG-F156-3R

DESCRIPTION

The SolarGoesGreen solar SMD-LED flood light is the premier choice for indoor or outdoor solar lighting.
The versatility of the SolarGoesGreen SGG-F156-3R makes it the best choice for use in gardens, parks,
warehouse, garages, driveway, sign, yards, farms, horse riding arenas and business. The SolarGoesGreen
solar SMD-LED flood light is easily installed. The battery is protected by an auto-detection circuit in the
system to control the brightness of the lamp, allowing the lamp to operation longer as the battery charge
declines.

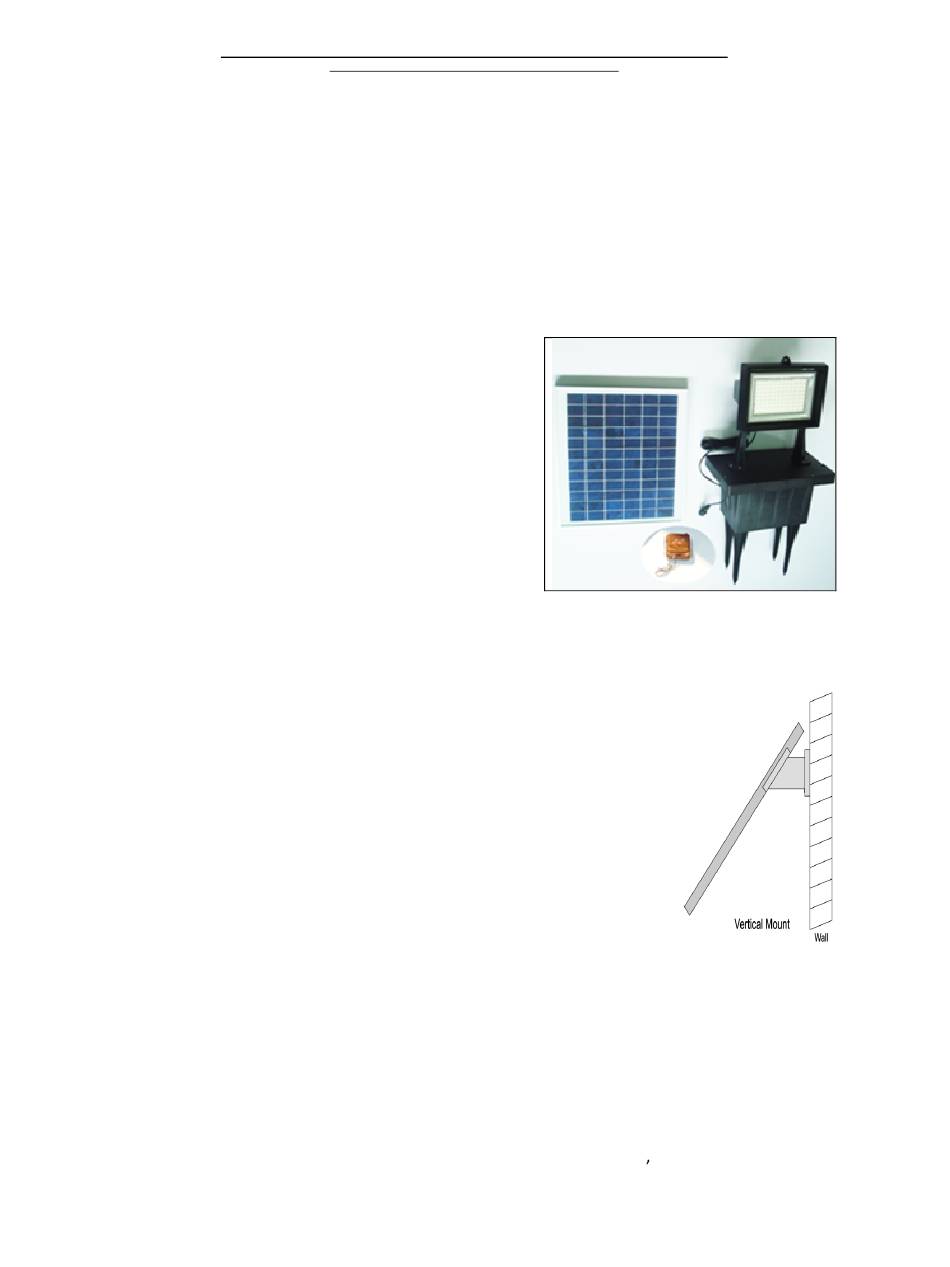

PARTS

2 each 10W hinged Solar Panel
1 each 156 SMD-LED Solar Light Lamp
1 each Battery & Weatherproof Case
1 each Wireless RF Remote Control
4 each Ground Stakes for Battery Box
2 each Ground Stakes for Solar Panel
2 each Wall Mount for Solar Panel
2 each Flat Bar Stock
Mounting Screws

INSTALLATION

1) INSTALLATION OF SOLAR PANEL
a) SOLAR PANEL GROUND STAKE*
·
For optimum performance, the solar panel must be facing the southern horizon and positioned at a 45
degree angle using the ground mount stake provided.
b) WALL MOUNT*
·
Using the flat bar stock provided, lay the solar panels
on a flat surface and straighten hinged solar panel by screws
·
Using the Mounting bracket as a template, drill 4 holes on an
appropriate surface
·
Attach solar panel to wall using screws provided.
·
For optimum performance, the solar panel must be facing the
Southern horizon and positioned at a 45 degree angle using
the bracket provided
2) INSTALLATION OF BATTERY BOX & LIGHT
·
Mount the battery box using the ground mount stakes provided.
·
Fix SMD- LED lamp on top of battery box by using provided screws
·
Connect SMD-LED lamp to battery box by inserting the lamp wire into OUT PUT plug on the box;
·
Connect solar panel wire to the SOLAR IN plug on battery box
·
Switch the power ON. Lamp will light up and shut down after several seconds.
To test operation of complete unit, completely shield the face of solar panel by laying it face down on a flat surface or
cover the panel with thick black cloth. The Lamp will turn ON after several seconds.
After checking the above, the remote control can now be used to manage the unit s ON/OFF function independently,
however please note The remote control only operates light function when the battery box switch is set to the
"Remote" power position on battery box.
READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
.
