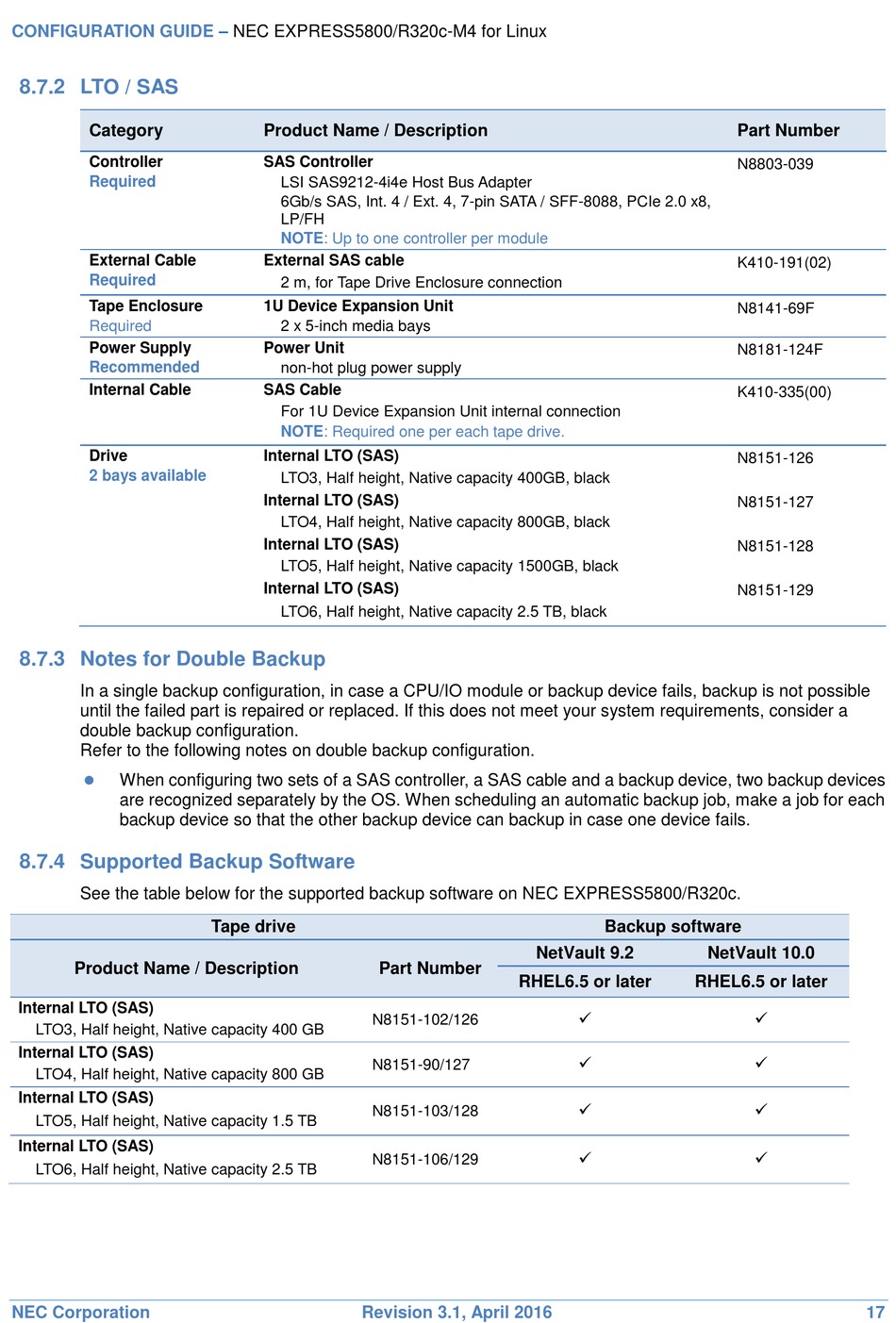

NEC EXPRESS5800/R320c-M4 Configuration Manual page 17

CONFIGURATION GUIDE
8.7.2 LTO / SAS
Category
Controller
Required
External Cable
Required
Tape Enclosure
Required
Power Supply
Recommended
Internal Cable
Drive
2 bays available
8.7.3 Notes for Double Backup
In a single backup configuration, in case a CPU/IO module or backup device fails, backup is not possible
until the failed part is repaired or replaced. If this does not meet your system requirements, consider a
double backup configuration.
Refer to the following notes on double backup configuration.

When configuring two sets of a SAS controller, a SAS cable and a backup device, two backup devices
are recognized separately by the OS. When scheduling an automatic backup job, make a job for each
backup device so that the other backup device can backup in case one device fails.
8.7.4 Supported Backup Software
See the table below for the supported backup software on NEC EXPRESS5800/R320c.
Product Name / Description
Internal LTO (SAS)
LTO3, Half height, Native capacity 400 GB
Internal LTO (SAS)
LTO4, Half height, Native capacity 800 GB
Internal LTO (SAS)
LTO5, Half height, Native capacity 1.5 TB
Internal LTO (SAS)
LTO6, Half height, Native capacity 2.5 TB
NEC Corporation
–
NEC EXPRESS5800/R320c-M4 for Linux
Product Name / Description
SAS Controller
LSI SAS9212-4i4e Host Bus Adapter
6Gb/s SAS, Int. 4 / Ext. 4, 7-pin SATA / SFF-8088, PCIe 2.0 x8,
LP/FH
NOTE: Up to one controller per module
External SAS cable
2 m, for Tape Drive Enclosure connection
1U Device Expansion Unit
2 x 5-inch media bays
Power Unit
non-hot plug power supply
SAS Cable
For 1U Device Expansion Unit internal connection
NOTE: Required one per each tape drive.
Internal LTO (SAS)
LTO3, Half height, Native capacity 400GB, black
Internal LTO (SAS)
LTO4, Half height, Native capacity 800GB, black
Internal LTO (SAS)
LTO5, Half height, Native capacity 1500GB, black
Internal LTO (SAS)
LTO6, Half height, Native capacity 2.5 TB, black
Tape drive
Part Number
N8151-102/126
N8151-90/127
N8151-103/128
N8151-106/129
Revision 3.1, April 2016
Backup software
NetVault 9.2
RHEL6.5 or later




Part Number
N8803-039
K410-191(02)
N8141-69F
N8181-124F
K410-335(00)
N8151-126
N8151-127
N8151-128
N8151-129
NetVault 10.0
RHEL6.5 or later




