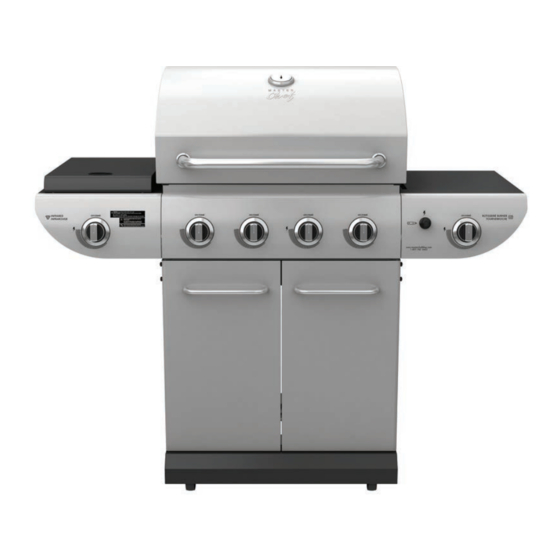

Master Chef E500 Assembly Manual

With side burner
Hide thumbs Also See for E500:

Advertisement

Quick Links

Download this manual
TM
MC
E500 Barbecue
With Side Burner
assembly manual
85-3106-0 (G45319) Propane
85-3107-8 (G45320) Natural Gas
1 YeaR limited WaRRantY
Read and save manual foR futuRe RefeRence.
Assemble your grill immediately.
Missing or damaged parts claims must be submitted within 30 days of purchase date.
for product inquiries, parts, warranty and troubleshooting support,
please call 1-855-453-2150.
Manual Revision #: 07302015 AT
ANSI Z21.58-2015 / CSA 1.6-2015
ANSI Z21.58-2015 / CSA 1.6-2015
ANSI Z21.58-2015 / CSA 1.6-2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the E500 and is the answer not in the manual?

Questions and answers

Related Manuals for Master Chef E500

Summary of Contents for Master Chef E500

  • Page 1 E500 Barbecue With Side Burner assembly manual 85-3106-0 (G45319) Propane 85-3107-8 (G45320) Natural Gas 1 YeaR limited WaRRantY Read and save manual foR futuRe RefeRence. Assemble your grill immediately. Missing or damaged parts claims must be submitted within 30 days of purchase date.
  • Page 2 H e a v Y a R t i c l e n e e d s 2 t o l i f t THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.masterchefbbqs.com caution...

  • Page 3: Hardware Pack

    HARDWARE PACK tools needed foR assemBlY KeY # descRiPtion PaRt numBeR QuantitY ¼”-20UNCX38 Screw 20120-13038-250 ¼”-20UNCX18 Screw 20120-13018-250 • #2 Phillips screwdriver (long and short) ¼”-20UNCX13 Screw 20120-13013-250 • ¼” Slotted screwdriver (long and short) ¼” Nut 30220-13000-250 • Adjustable wrench φ7 Lock Washer 41400-07000-250 φ7 Washer...
  • Page 4 PARts List (PRoPAnE) foR 85-3106-0 (G45319) KeY # QuantitY descRiPtion PaRt no. Top lid G453-B400-01 Lid handle G432-000J-01 Thermometer G432-000K-01 Screw for top lid G359-0030-01 Lid bumper, front G508-0063-01 Lid bumper, rear G303-0038-01 Burner box weldment G453-A300-01 Main burner G517-7300-01 Carryover assembly G614-0095-01 Flame tamer...
  • Page 5 EXPLoDED DiAGRAM (PRoPAnE) foR 85-3106-0 (G45319) SAFETy ASSEMBLy AND CARE MANUAL MANUAL HARDWARE PACK...
  • Page 6 PARts List (nAtuRAL GAs) foR 85-3107-8 (G45320) KeY # QuantitY descRiPtion PaRt no. Top lid G453-B400-01 Lid handle G432-000J-01 Thermometer G432-000K-01 Screw for top lid G359-0030-01 Lid bumper, front G508-0063-01 Lid bumper, rear G303-0038-01 Burner box weldment G453-A300-01 Main burner G517-7300-01 Carryover assembly G614-0095-01...
  • Page 7 EXPLoDED DiAGRAM (nAtuRAL GAs) foR 85-3107-8 (G45320) SAFETy ASSEMBLy AND CARE MANUAL MANUAL HARDWARE PACK...
  • Page 8 AssEMBLY instRuCtions Separate the 2 different types of castors: 2 Locking Castors (EE) and 2 Regular Castors (EF). note: Regular Castors (Ef) need to be assembled to the front of the Bottom shelf (ED), and Locking Castors (EE) need to be assembled to the back of the Bottom shelf (ED), as shown in image A.
  • Page 9 AssEMBLY instRuCtions tHis stEP REQuiREs 3 PEoPLE. Do not AttEMPt ALonE. EXtREMELY HEAVY! Position the Top Lid Assembly and Burner Box Assembly (A & B) onto the Cart Assembly (C), as shown. Front View Attach the Upper Back Panel (BH) to both the Left And Right Side Panels (EB &...
  • Page 10 AssEMBLY instRuCtions Assemble the Door Support Rail (EA) to the Left and Right Upper Side Panels (EB and EC), as shown. WARninG: this part may have sharp edges. Wear protective gloves when assembling. Front View yOU WILL NEED: Close Up Attach the Match Holder (BI) to the left side panel of the Burner Box Assembly.
  • Page 11 AssEMBLY instRuCtions left side sHelf assemBlY tiP: Do not tighten until all hardware is in place. a. Mount the left side burner side shelf (DA and DB) onto the two support brackets, located on the left, upper side panel of the burner box (BA).
  • Page 12 AssEMBLY instRuCtions a. Remove the hardware that is pre-assembled to the Side Burner Valve (CC), as shown in figure A. Assemble the Side Burner Valve (CC) to the Left Side Shelf Fascia (DB), using the hardware removed. b. Assemble the Side Burner Control Knob (#13) to the Side Burner Valve (CC).
  • Page 13 AssEMBLY instRuCtions b. Make sure that the Side Burner (DD) engages the Side Burner Valve (CC). Attach the Wing Nut (#10) to the side burner (DD), as shown in figure B. yOU WILL NEED: Left side view c. Attach the end of the Side Burner Electrode Wire (DE) to the underside of the Side Burner Electrode (DD), as shown.
  • Page 14 AssEMBLY instRuCtions RiGHt side sHelf assemBlY tiP: Do not tighten until all hardware is in place. a. Mount the right side shelf (DH and DI) onto the two support brackets, located on the right, upper side panel of the burner box (BA). b.
  • Page 15 AssEMBLY instRuCtions electRonic iGnition assemBlY Battery a. Remove the Ignition Battery Cover (CH2) and the plastic nut from the Electronic Ignition Box (CH1). b. Position the Electronic Ignition Box (CH1) Plastic Nut through the opening in the Right Side Shelf Fascia (DI) and secure using the plastic nut.
  • Page 16 AssEMBLY instRuCtions Assemble the Heat Shield (CK) to the bottom of the Door Support Rail (EA) and the Upper back panel (BH), as shown in figure A and B. yOU WILL NEED: Front view Close up Back view Close up...
  • Page 17 AssEMBLY instRuCtions a. Assemble the Left and Right Tracks (CN and CM) for the Grease Tray (CL), as shown in figure yOU WILL NEED: Front view Close up, back view Close up, front view b. Insert the Grease Tray (CL) into the opening of the Upper Back Panel (BH).
  • Page 18 AssEMBLY instRuCtions Assemble the Door Handle (EI) to the Left and Right Door Assembly (EG and EH). Left door handle yOU WILL NEED: Right door handle yOU WILL NEED:...
  • Page 19 AssEMBLY instRuCtions a. Assemble the right door assembly (EH), to the bottom shelf (ED) by inserting the fixed pin (bottom of door) into the hole provided (figure B). Close up, bottom of door b. Assemble the top of the door assembly (EH) to the door support rail (EA), by pressing in the door support pin and aligning with the hole located on the top right corner of the door...
  • Page 20 AssEMBLY instRuCtions a. Position the Flame Tamers (BE) into the Burner Box (BA). Close up, front view Close up, back view...
  • Page 21 AssEMBLY instRuCtions Place the cooking grates (BF) into the burner box (BA). Insert the two small positioning rods of the warming rack (BG) into the rear panel of the burner box (BA).
  • Page 22 Bottom Shelf (ED), as shown in figure C. attention foR YouR sAfEtY, Do not AttEMPt to LiGHt tHis BBQ untiL You HAVE REViEWED PAGEs 4-8 of tHE MAstER CHEf® sAfEtY & CARE MAnuAL. ALL sAfEtY AnD LEAK tEsts Must BE PERfoRMED BY tHE EnD usER, PRioR to LiGHtinG tHis BBQ.
  • Page 23 YouR sAfEtY, Do not AttEMPt to LiGHt tHis BBQ untiL You HAVE REViEWED PAGEs View from underneath left side shelf 4-8 of tHE MAstER CHEf® sAfEtY & CARE MAnuAL. ALL sAfEtY AnD LEAK tEsts Must BE PERfoRMED BY tHE EnD usER, PRioR to LiGHtinG tHis BBQ.
