Summary of Contents for Direct Bikes DB125T-9

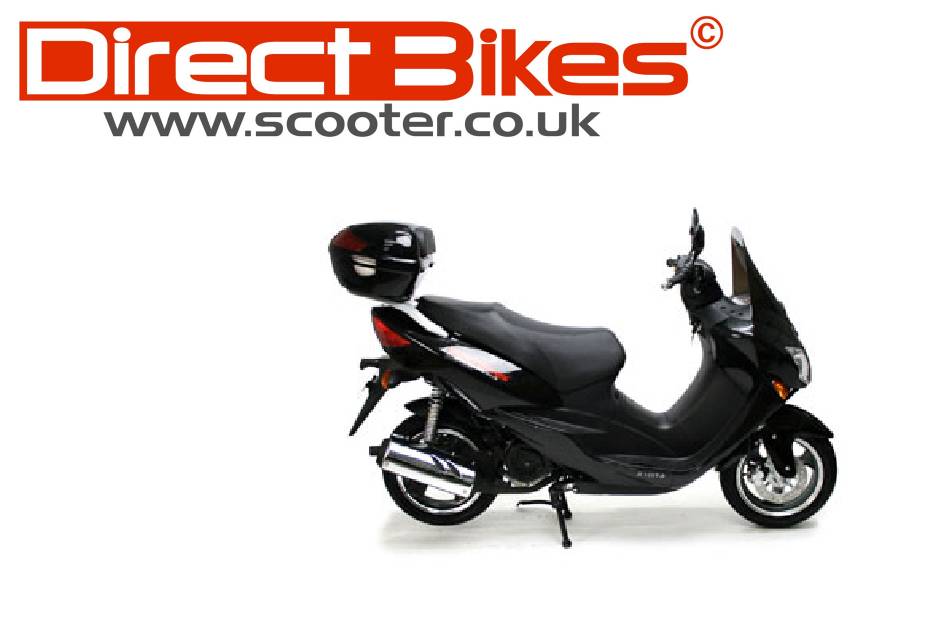

- Page 1 Manual-DB125T-9...
- Page 2 Dear Customer: Thank you for purchasing the Direct Bikes DB125T-9 scooter. The Direct Bikes DB125T-9 scooter is manufactured using some of the most advanced production techniques in the world. The scooter features high performance, economic fuel consumption and low noise levels. This manual provides detailed information about the correct operation, maintenance and adjustment of your DB125T-9 scooter.
- Page 3 Important Notice: • Driver and passenger This vehicle is designed to carry only one driver and one passenger. The driver is required to have the appropriate licence for these requirements. Do not exceed the rated load capacity specified on the specification label. •...
- Page 4 Location of Component parts (1) Back-view mirror (2) Headlight (3) Front turn signal light (4) Muffler (5) Taillight (6) Seat...
- Page 5 Meter Panel and Indicators All the controls for the indicators and warning lights are located on the meter panel. (1) Speedometer (2) Mileometer (3) High beam indicator (4) Turn right signal light (5) Turn left signal light (6) Fuel meter Fuel gauge The fuel gauge indicates the approximate amount of fuel remaining in the fuel tank.
- Page 6 Identification The VIN or chassis number is located on the frame of the scooter and is either under the seat or under the clip in cover in the front of the foot well. The engine number is located on the left side on the bottom of engine. NOTE: You should regard this manual as a permanent component part of your vehicle, it is essential for the continued operation and safety of your...
- Page 7 Fitting the accessories Mirrors The mirrors come ‘handed’, i.e. a left and right one. They screw into either the left and right switch gear or into the front and back brake lever assemblies. There is a lock nut on the threaded part of the mirror to ensure the mirror does not come loose.
- Page 8 Top box The top box is supplied with a universal fitting kit. Place the top box centrally on the rack. Hold the long slotted bars under the rack with the edges of the bars facing upwards. Put the long screw and washer through the holes in the box and then through the slide underneath the rack.
- Page 9 Fitting the battery Make sure the scooter ignition is in the off position. Put the battery in the compartment. Fit the 2 red leads (sometimes one or both of these leads are covered by a protective black sleeve, if you lower the sleeves you will see the red leads) to the + side (also marked red on the terminal.) using the screw provided.
-
Page 10: Ignition Switch
Guide to Operation Ignition Switch position Turn the switch this position to start the engine; the switch key can not be pulled out in this position. position Turn the switch to this position to shut down the engine; the switch key can be pulled out in this position. - Page 11 NOTE: In hot weather, leaving the engine idling for a long time will cause it to overheat. You should shut it down to let it get cool. Headlight beam switch (1) Push the “ ” buttom for high beam and the “...
- Page 12 Start button (4) When this button is pushed, the starting motor works to start the engine. See the part “Starting the Engine” for the starting procedure. Headlight switch (5) “ ” Position: When the switch is set to this position, the headlight, taillight, position light and meter light all go on.
- Page 13 Important Checks The scooter is nearly ready to go, but before you put any petrol or oil into the scooter, there are a few final things that need checking. These checks should be carried out routinely to insure good performance and safe operation. Checking the oil The engine oil dipstick and cap are combined and is located on the right side of the engine.
- Page 14 Brakes Checking the front brake Check the brake for normal performance and adjust it’s free play. The free play refers to the distance for which the front brake lever travels freely to achieve the braking effect. Required free play : 5 to 10 mm. This must be checked with steering at left, right and centre.
- Page 15 Checking the tyre pressure The tyre pressure is 1.75 bar for the front tyre and 2.0 bar for the rear. If you are carrying passengers or luggage please increase the rear tyre to 2.25 bar. If you are a light person or heavy person these pressures may need adjusting to compensate.
- Page 16 There should be no leaks. Fuel / Vacuum Pipes Please check that all fuel / vacuum pipes are connected and that there are no loose pipes. If you have any questions regarding this please contact Direct Bikes for assistance Tel: 0845 652 0680...
- Page 17 Electrics Please go through the controls and make sure that the following systems are working correctly; Indicators: left and right, front and rear. Lights: sidelights, front and rear. High and low beam for the front light. Rear brake light, working from both the front and rear brake independently.
- Page 18 General ‘walk around’ Before use please go around the scooter and check that all nuts and bolts are tight and secure and that there are no loose parts. Starting the scooter Before starting you need to put petrol in. The petrol cap is either located under the seat or at the rear of the foot well under a locked flap.
-
Page 19: Riding The Scooter
Riding the Scooter Please always wear a HELMET and PROTECTIVE CLOTHING! Familiarise yourself with the controls BEFORE you go out on a public road. Take the appropriate training if you do not all ready know how to ride a scooter. Failure to do so could put yourself or others at risk of injury! The controls are designed for ease of use. - Page 20 CAUTION: Always start the engine with the rear brake pedal depressed. The engine should not be allowed to run too fast when it is being warmed up. Quick opening and closing of the throttle must be avoided. Running in Your new scooter requires a ‘running in’ period. This is very important because it allows the mechanical parts to bed in and will increase the serviceable life of the machine.
- Page 21 Storage When not using your scooter a waterproof cover should be used to protect the scooter from the elements. If storing the scooter for periods in excess of six weeks it is advisable that a few further things are done. Drain the fuel. You will find the drain cock at the lowest point of the carburettor.
- Page 22 To ensure safety, good performance and durability of the vehicle and reduced emission, be sure to perform periodic maintenance by an approved dealer. If you are unaware of your local approved dealer, please contact Direct Bikes on: 0845 652 0680 The following maintenance schedule is made accordingly to the distance travelled or duration of ownership which ever is sooner.
- Page 24 Repeat same service intervals when exceeding 31000kms / 64 months from the table above.
- Page 25 Troubleshooting Checking the carburettor In the unlikely event that your scooter fails to start please check the air pilot screw on the side of the carburettor. It should be 2.5 turns out. Screw all the way in and count the number of turns out.
- Page 26 Checking the spark plug A dirty spark plug with dirty electrodes or excessive gap between electrodes will not be able to generate full sparks. (Cleaning) • The best result can be achieved if you clean the spark plug with a spark plug cleaner. •...
- Page 27 Checking the fuse Turn off the master switch and check the fuse to see if it is blown. Replace the blown fuse with one of the specified capacity: • Always find out the cause before replacing a blown fuse. • Unscrew the two screws battery and remove the battery cover.
- Page 28 If you require technical assistance please contact Direct Bikes on: 0845 652 0680...
- Page 29 Safety Precautions It is only the driver that can ensure the safety of travel. A safety-minded scooter driver always spends much time learning how to drive and develop his driving skills in a place where traffic is not so busy before he begins to drive on a public road.
- Page 30 5. As most serious scooter accidents cause injuries of the drivers head, always wear a helmet and protective clothing such as protective glasses, boots, gloves, thick and strong coat. 6. Do not drive on rough rugged roads as rough surfaces may lead to loss of control and cause damage to the vehicle.
- Page 31 6. Always remember to switch on the turn signal lights before making a turn or change lanes. 7. Do not drive your vehicle on the shoulder on either side of the road. Loading WARNING: A) The top box is used to carry only lightweight objects, not for very heavy ones.
Need help?
Do you have a question about the DB125T-9 and is the answer not in the manual?
Questions and answers

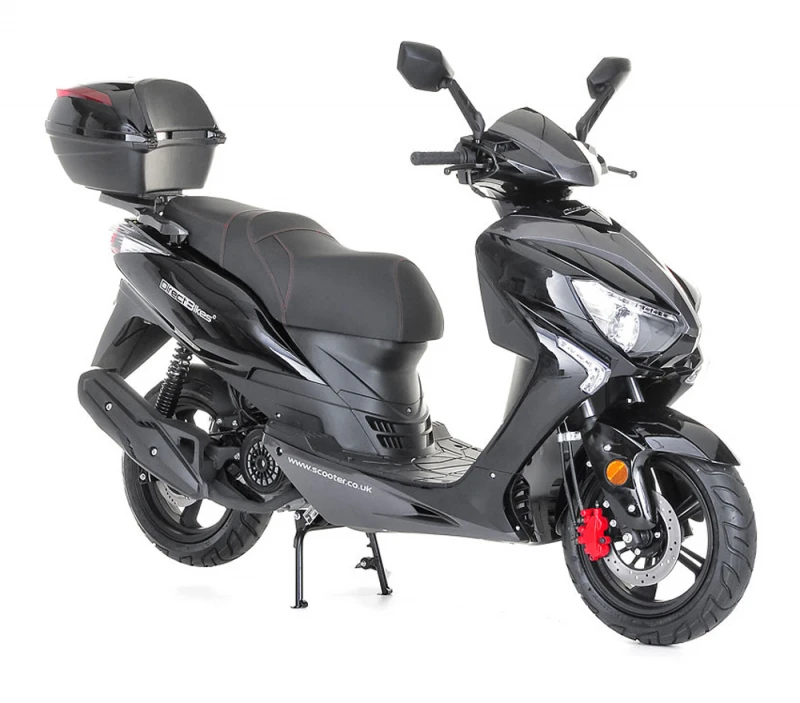

My bike won’t turn over I have charged the battery and starter motor working fine I have also put new spark plug it . But the engine will not turn over or start I have even put new fuses in . My bike is 125 venom 2024 model . Any suggestions
@Neil fenn
@Neil fenn add me on something else might be able to help I have the same bike
Possible reasons for a 2024 Direct Bikes 125 Venom not starting, even with a charged battery, working starter motor, new spark plug, and new fuses, could include:
- Throttle or steering issues: If throttle freeplay or steering is not correct, it may affect starting.
- Main fuse or fuse clamp issues: A loose fuse clamp can cause electrical problems.
- Ignition switch malfunction: If the ignition switch is not properly positioned, the engine will not start.
- Wiring problems: Loose, damaged, or incorrectly routed cables can interrupt the electrical system.
- Engine overheating protection: If the engine is too hot, it may not start until cooled down.
Each of these should be checked carefully.
