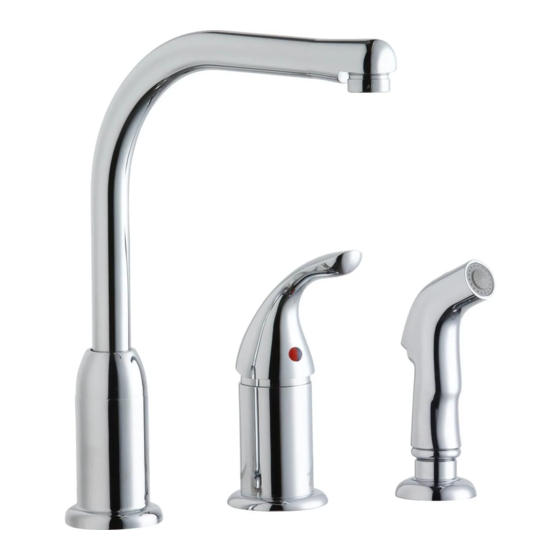

Elkay LK3001 Installation & Owner's Manual

Single handle kitchen faucet

Important!

You choose the flow rate!

This faucet ships with an

eco-friendly 1.5GPM flow regulator

installed.

If you desire higher flow rate, a

2.2GPM flow regulator has also

been included in the box.

Switching the flow regulator is

simple! See the "Flow Regulator

Replacement" section for details.

Groove joint pliers

Wrench

INSTALLATION / OWNER'S MANUAL

(2) 1/2

Supply Lines

SAVE FOR CONSUMER

Single Handle Kitchen Faucet

Model # LK3001

OPTIONAL 2.2GPM

AERATOR INSERT

Screwdriver

Sealant Tape

Plumber's Putty

Table of Contents

Need help?

Do you have a question about the LK3001 and is the answer not in the manual?

Page 1 INSTALLATION / OWNER'S MANUAL Single Handle Kitchen Faucet Model # LK3001 Important! You choose the flow rate! This faucet ships with an eco-friendly 1.5GPM flow regulator installed. If you desire higher flow rate, a 2.2GPM flow regulator has also been included in the box.
Page 2 WARNING: Please carefully read and properly follow the instructions for installation found in this manual. STEPS: 3-Ø1 3/8" (Ø35mm) Shut off water supplies. Place spout through Place handle assembly through side hole in sink. mounting hole in sink. Secure spout with rubber Secure handle assembly with washer (1) and nut (2).
Page 3 WARNING: Please carefully read and properly follow the instructions for installation found in this manual. STEPS: Make connections to water lines. Use 1/2" I.P.S. Insert side spray hose (1) through hose guide faucet connections (1) or use coupling and sink. Align block (2) and tabs (3) on quick nuts (3) with 3/8"...
Page 4 2. Reinstall the aerator assembly. CARE AND CLEANING INSTRUCTIONS FOR CARE AND MAINTENANCE: Congratulations on your purchase of an Elkay product. · The water in certain areas of the world can be very caustic - Although your product is extremely durable, attention should standing water around the product can cause damage.
Page 5 If the product should leak or drip during normal use, Elkay will provide, THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY free of charge, a replacement cartridge. For other defects in material or...
