Elkay LK395A Specifications

SPECIFICATIONS

GENERAL

LK395A Chrome plated back mount spout. 8-1/4" (210mm)
high swing spout (4-7/8" [124mm] from wall to spout outlet)
with AE19A vandal-resistant anti-hose aerator. Flanged female
1/2" (13mm) I.P.S. inlet with 1/2" (13mm) male thread by 1/2"
(13mm) SWT brass elbow, 1/2" (13mm) nipple, washer, and
locknut. Ship. Wt. 3 lbs.

OPTIONAL ACCESSORIES

AE13A Aerator. 2.2 GPM. Ship. Wt. 1/4 lb.
This spout is certified to NSF/ANSI61.

MAXIMUM FLOW RATE

2.5 GPM/9.5 L/min at 80 P.S.I.G.
2.2 GPM/8.3 L/min at 60 P.S.I.G.
2.0 GPM/7.6 L/min at 40 P.S.I.G.
7/8"
(22mm)
1/2" (13mm) SWT
1-3/8"
FEMALE INLET
(35mm)
Elkay warrants its faucets to be free of defects in workmanship and material for a period of
one year from the date of purchase. Replacement parts are available from Elkay for a nom-
inal charge. Upon return of a defective part to Elkay during the warranty period with written
notice of the claimed defect, Elkay will refund the replacement charge.
WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER WARRANTY
CONDITIONS:
Our warranty does not cover product failure caused by abusive treatment, misuse, or dam-
age due to handling or faulty installations. This warranty is extended only to the original con-
sumer purchaser of the product. This warranty does not cover shipping costs, labor costs,
or any other charges for such items as installation or replacement of the sink, diagnosis or
replacement of any faucet or component part, or any other expense or loss.
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY EXCLUDED. NO
ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE GIVEN. ANY IMPLIED WAR-
RANTY, INCLUDING ONE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE, IS LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Elkay
www.elkayusa.com
®
5-9/16"
(141mm)
3-9/16"
(90mm)
4-7/8"
(124mm)

ELKAY FAUCET LIMITED WARRANTY

2222 Camden Court
Oak Brook, IL 60523
8-1/4"
(210mm)
Some states do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusions
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay
Attention: Consumer Service
2222 Camden Court
Oak Brook, Illinois 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b. Description of nature of defect
c. Model number or description of model and/or component part if possible.

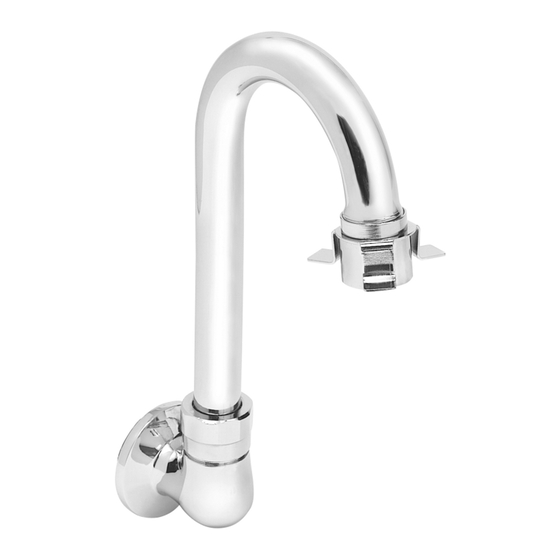

Back Mount Spout
Model LK395A
Model LK395A
2"
(51mm)
Printed in U.S.A.
©2005 Elkay
(Rev. 1/05)
17-8B
