CrimeStopper CA-504.BRKT Install Manual

INSTALLER TIPS! (Read First):
Use this bracket for under-bumper installation when there is no
vertical or solid surface at the rear edge of the vehicle.
Space sensors eve nly apart at the same distance to the ground.
Keep sensor cables up and away from moving parts.
Keep sensors on a horizontal plane (perpendicular to ground) for
best results.
STEPS:
1. Find a solid location for mounting the sensor. We recommend a
sturdy frame member or factory bumper bracket if possible.
2. Place the CA-504BRKT in the desired location.
3. Use any of the bracket's 3 mounting holes as a pilot hole and mark
the screw location.
4. Drill hole and mount sensor bracket. (Tools and screws are not
included)
5. Feed cable through the opening and insert sensor (It should snap
in snugly). Run sensor cable to control module inside the vehicle.

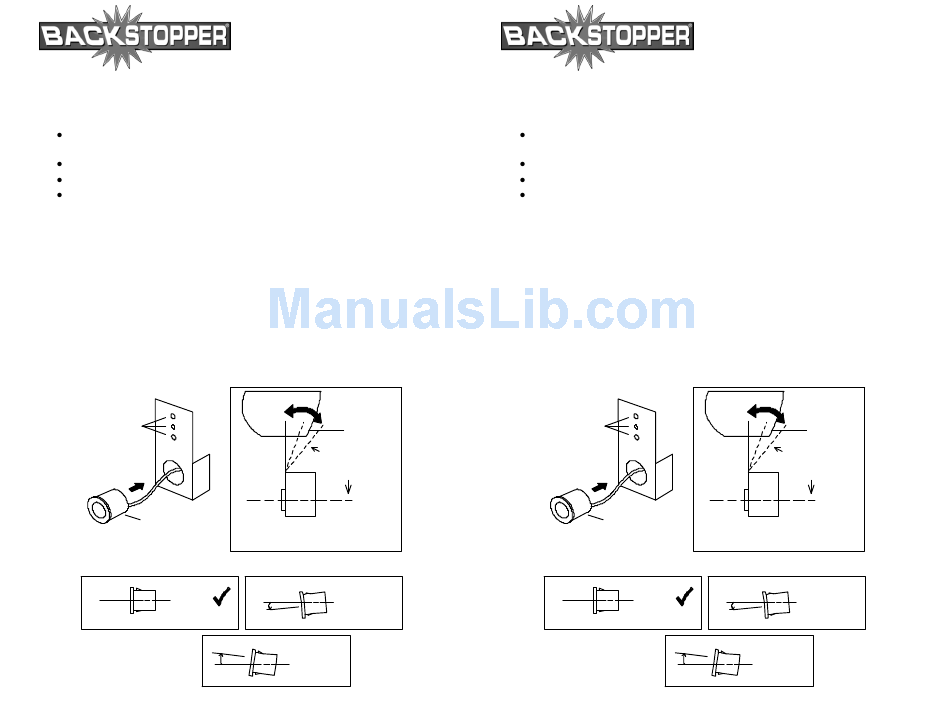

Mounting Holes
Sensor
Horizontal
Optimum
performance
to ground
Upward
TECH SUPPORT
(800) 998-6880
CA-504 BRKT
Optional hanging bracket for
insert type sensors
(CA-5004, 5005, 5006)
BUMPER
Bracket may be bent
to ensure the horizontal
angle of senor.
SIDE VIEW
Slight
O.K.
Downward
If sensors are high
off the ground. (30"
or more).
NO!
(Bottom edge of
bumper or body
will interfere with
sensor.)
