VIVIBright PLWU8100F Quick Manual

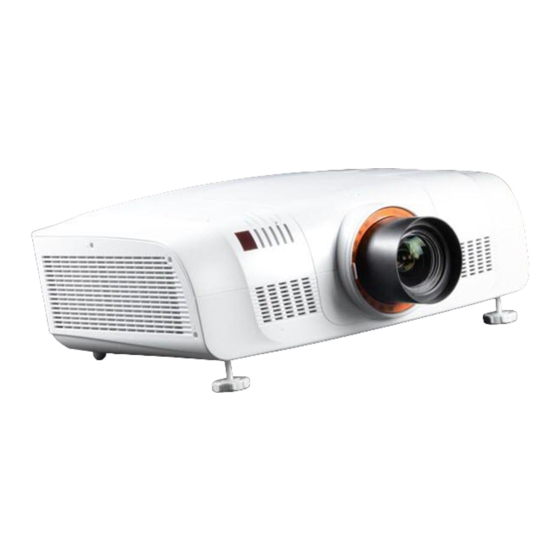

PLWU8100F,Large Venue Projector
Basic Features
● Perfect Image quality With a Pixelworks™ Processor.by SONY "BrightEra" 3LCD Panels
● Brightness: 10,000 ansi Lumens (Market) / 8,000 ansi Lumens (std)
● Resolution: WUXGA /native 1920 x 1200 Pixels.
● Weight: 22.3 lb (9.7 kg) only Projector, 15 kg with Packing,G.W including packing 21kg
● Excellent Connectivity
● High emitting effeciency,High performance 330W single lamp
● HDMI standard terminal
● Power Lens Shift & Lens options...
Basic Parameters:
Display Technology 3LCD Panels x 0.76" SONY
Native Resolution WUXGA / Native 1920 x 1200 Pixels Original resolution_PLWU8100F
Max. Computer Input WUXGA / Native 1920 x 1200 Pixels
Max. Video Input 4K
Brightness 10,000 ansi Lumens (Market) / 8,000 ansi Lumens (std)
Contrast 4000:1 Contrast Ratio,Dynamic Video contrast ratio up to 10000:1 by HDMI
Fan Noise As low as 31 dBa
Aspect Ratio 16:9 Native, 4:3Compatible
Projection Method Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight 12 kg
I/O Connectors Inputs:
HDMI:
Outputs:
Network Control:
Control:
Preset Mode PC:
Movie:
Game:
sRGB:
User:
Maximum Resolution 4K via HDMI Terminal
Computer Compatibility Standard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA, SXGA, XGA, SVGA, VGA, Mac...
Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p)
Displayable Colours 1.07 Billion
Projection Lens Standard lens:
Power Lens Shift: U/D 50%; L/R 10%
Lens Optional:
Throw Ratio 1.31:1
Projection Screen Size 30" - 500"/ Diagonal 4:3
Projection Distance 1.025-24.48m(Standard Power Lens )
Horizontal Scan Rate 15.3 - 91.1kHz
Vertical Scan Rate 24 - 85Hz
Lamp Type/Lamp Life 330W single lamp, 6000/5000 hours (ECO/BRIGHT mode)
Keystone Correction * ± 40° Vertical
Dimensions (W x D x H) 535mm x 390mm x 190mm
Remote Control Full function remote with direct source selecting
Power Supply 100-240V, 50-60Hz
Power Consumption 490W BRIGHT mode <5W Standby mode, 450W STD mode < 1W Standby mode
Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity 90%
Security Kensington Lock, Password Protection
Standard Accessories AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card
Optional Accessories Ceiling Mount Kit, Additional Ultra long Cable
Warranty Projector 5-Years,lamp six months or 500Hrs
Outstanding Features ● 10,000 ANSI Lumens bright, with 90% uniformity and a 4000:1 Contrast Ratio.
● 3 Panel LCD imaging for rich, color saturated computer and video projection.
● Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA to 4K Support by HDMI.
● Supports analog & digital computer and analog & digital video input in all color standards.
● Optional wide-angle and telephoto lenses. Instant lens change system.
● Cartridge air filter for mission critical/hard-to-reach installs-up-to 10,000 hours use.
● Includes most professional input configurations, including 5BNC and DVI.
● Vertical and Horizontal power lens shift and digital keystone correction.
● 10-bit color reproduction for superior color reproduction.
● Mechanical shutter for true black screen "No Show".
● Durable inorganic LCD panels permit extended use.
● Variable Power Management option. Optional local or remote keylock.
● Custom warm-up screen option. Built-in Color Auto Picture Control.
● Built-in network(RJ45) monitoring and control. Optional network content delivery.
● 5 year projector warranty!
©Copyright2012 VIVIBright Corporation.BrightEra® &BrightEra logo are registered trademarks of SONY,All specifications are subject to change at any time.
PC/Video: 15 Pin D-sub (RGB/YPbPr/SCART), S-Video, Composite/VGA in x 2,RGBHV,DVI...
HDMI Terminal output Support HD 1.1~1.4
VGA Out x 1,Audio output x 1,RCA...
Wired LAN monitor & control and system management with optional module by RJ45
RS232 x 1
For computer or notebook (Brightest image)
Maximum contrast and Colour accuracy
Bright vivid colour
For Standard PC Colour (Best Colour Reproductiion)
Memorises user's settings
Power zoom and focus lens, 1:1.6X, F=1.7~2.2, f=22~35mm, 1/2x1/2~4x4
Short throw lens,Long throw lens,Ultra-short focal-lens,360-degree wide-angle lens,Spherical Fisheye lens
ViviBright Corporation | www.Vivibright.com | Email: Vivibright.e@Gmail.com
Phone: 00852-30501890, 0086-755-8393 8394 | M/P:0086-13418587151
