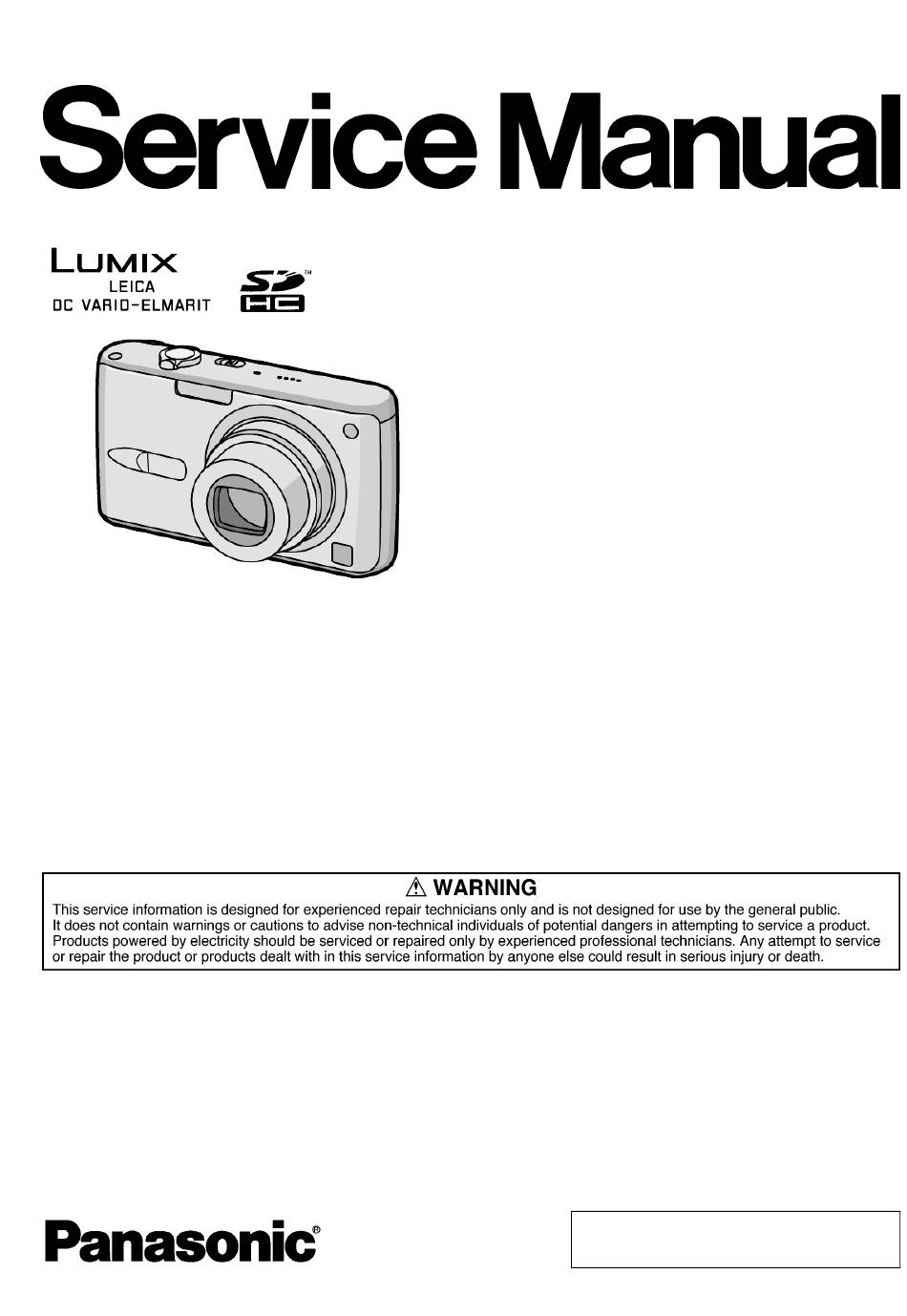

  • Page 1 ORDER NO. DSC0608023CE Digital Camera DMC-FX3PP DMC-FX3PL DMC-FX3EB DMC-FX3EE DMC-FX3EF DMC-FX3EG DMC-FX3EGM DMC-FX3GC DMC-FX3GD DMC-FX3GK DMC-FX3GN DMC-FX3GT Vol. 1 Colour (S)...Silver Type (K)...Black Type © 2006 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precaution -------------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 1.4. How to Discharge the Capacitor on Flash Top PCB------------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1.

  • Page 3: Safety Precaution

    1 Safety Precaution 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure 1.) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check.

  • Page 4: How To Discharge The Capacitor On Flash Top Pcb

    1.4. How to Discharge the Capacitor on Flash Top PCB CAUTION: 1. Be sure to discharge the capacitor on FLASH TOP PCB. 2. Be careful of the high voltage circuit on FLASH TOP PCB when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and Remove the necessary parts/unit. 2.

  • Page 5: Warning

    2 Warning 2.1. Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).

  • Page 6: Caution For Ac Cord(For Eb

    A replacement fuse cover can be purchased from your local 2.3.2.3. How to Replace the Fuse Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.

  • Page 7: How To Replace The Lithium Battery

    2.4. How to Replace the Lithium Battery 2.4.1. Replacement Procedure 1. Remove the SUB PCB. (Refer to Disassembly Procedures.) 2. Remove the Lithium battery (Ref. No. “Z9101” at component side of SUB PCB) and then replace it into new one. NOTE: This Lithium battery is a critical component.
  • Page 8 NOTE: Above caution is applicable for a battery pack which is for DMC-FX3 series, as well.

  • Page 9: Service Navigation

    3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2.

  • Page 10: How To Define The Model Suffix (Ntsc Or Pal Model)

    3.4. How to Define the Model Suffix (NTSC or PAL model) There are seven kinds of DMC-FX3, regardless of the colours. • a) DMC-FX3S • b) DMC-FX3PP • c) DMC-FX3EB/EF/EG/EGM/GN • d) DMC-FX3EE • e) DMC-FX3GD • f) DMC-FX3GT • g) DMC-FX3PL/GC/GK (DMC-FX3S is exclusively Japan domestic model.) What is the difference is that the “INITIAL SETTINGS”...
  • Page 11 3.4.2. INITIAL SETTINGS: When you replace the Main PCB be sure to perform the initial settings after achieving the Adjustment, by ordering the following pro- cedure in accordance with model suffix. • Step 1. The temporary cancellation of factory setting: Set the mode dial to “[ Normal picture mode ] (Red camera mark)”.

  • Page 12: Specifications

    4 Specifications...

  • Page 13: Location Of Controls And Components

    5 Location of Controls and Components...

  • Page 14: Service Mode

    6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 32 error codes in sequence from the latest. When the error is occurred more than 32, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly (when the unit is powered on by the battery, the battery is pulled out) because the error code is memorized to FLASH ROM when the unit is powered off.
  • Page 15 Attribute Main item Sub item Error code Contents (Upper) High 4 bits Low 4 bits Check point (Lower) LENS Lens drive 1800 1000 PSD (X) error. Hall element (X axis) position detect error in OIS unit. OIS Unit 2000 PSD (Y) error. Hall element (Y axis) position detect error in OIS unit. OIS Unit 3000 GYRO (X) error.
  • Page 16 Attribute Main item Sub item Error code Contents (Upper) High 4 bits Low 4 bits Check point (Lower) SOFT Reset 3000 0001 NMI reset Non Mask-able Interrupt 0007 (30000001-30000007 are caused by factors) Card Card 3100 0001 Card logic error SD card data line or IC6001 (VENUS PLUS) 0002 Card physical error...

  • Page 17: Confirmation Of Firmware Version

    6.2. Confirmation of Firmware Version The Firmware version can be confirmed by ordering the following steps:. • Step 1. The temporary cancellation of factory setting: Set the mode dial to “[ Normal picture mode ] (Red camera mark)”. Insert the SD memory card which has a few photo data. While keep pressing [ Optical Image Stabilizer ] and “[ UP ] of Cross key”...

  • Page 18: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit.

  • Page 19: When Replacing The Main Pcb

    7.2. When Replacing the Main PCB After replacing the MAIN PCB, be sure to achieve adjustment. The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-PAVC” web-site in “TSN system”, together with Maintenance software. 7.3. Service Position This Service Position is used for checking and replacing parts.

  • Page 20: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart 8.2. PCB Location...

  • Page 21: Disassembly Procedure

    8.3. Disassembly Procedure 8.3.1. Removal of the Rear Case Unit Item Removal Rear Case Unit (Fig. D1) Card Battery 4 Screws (A) FP9001(Flex) FP9002(Flex) Rear Case Unit LCD Unit (Fig. D2) 2 Locking tabs LCD Unit Front Case Unit (Fig. D3) 5 Screws (B) 3 Screws (C) Tripod Fixing Plate...
  • Page 22 8.3.2. Removal of the LCD Unit 8.3.4. Removal of the Top Operation Unit (Fig. D2) 8.3.3. Removal of the Front Case Unit (Fig. D4) 8.3.5. Removal of the Flash Top P.C.B. (Fig. D3) (Fig. D5)
  • Page 23 8.3.7. Removal of the Lens Unit (Fig. D6) (Fig. D8) 8.3.6. Removal of the Main P.C.B. 8.3.8. Removal of the Sub P.C.B. (Fig. D7) (Fig. D9)

  • Page 24: Disassembly Procedure For The Lens

    8.3.9. Removal of the Battery Case 8.4. Disassembly Procedure for the Lens NOTE: When Disassembling and Assembling for the Lens 1. To minimize the possibility of the CCD being dirt, perform disassemble and/or assemble under the condition of the CCD is being mounted. Disassembling procedures for the CCD unit, refer to item 8.6.
  • Page 25 8.4.1. Zoom Motor Unit, Master Frange 6. Push the focus motor to the indicated arrow (B). 7. Lift the flex to the indicated by arrow (C), and to see the Unit, Drive/Direct Frame Unit and convex part. 1st Lens Frame/2nd Lens Frame Move Unit 1.
  • Page 26 11. Turn the drive gear to the indicated by arrow fully. 12. Push the drive unit to the indicated by arrow from lens side, and then remove the unit of drive/direct frame unit, 1st lens frame/2nd lens frame move unit from the fixed frame unit.

  • Page 27: Assembly Procedure For The Lens

    8.4.2. Removal of the Direct Frame 8.5. Assembly Procedure for the Lens 8.5.1. Phase alignment of the Direct Frame and Drive Frame Unit 8.4.3. Removal of the 2nd Lens Frame Move Unit...
  • Page 28 8.5.2. Phase alignment of the Drive/Direct 8.5.3. Assembly for the 1st Lens Frame Unit and Fixed Frame Unit Unit...
  • Page 29 8.5.4. Assembly for the 2nd Lens Frame 8.5.5. Assembly for the Zoom Motor Unit Move Unit and Master Frange Unit...

  • Page 31: Removal Of The Ccd Unit

    8.6. Removal of the CCD Unit 8.7. Applyment Grease To prevent the CCD unit from catching the dust and dirt, do not Method remove the CCD unit except for replacing. The grease apply point of lens unit are as follows. •...

  • Page 32: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Matrix Chart for Replaced Part and Necessary Adjustment The relation between Replaced part and Necessary Adjustment is shown in the following table. When concerned part is replaced, be sure to achieve the necessary adjustment(s). As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software. The Adjustment software is available at “TSN Website”, therefore, access to “TSN Website”...

  • Page 33: Maintenace

    10 Maintenace 10.1. Cleaning Lens and LCD Panel Do not touch the surface of lens and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface. Note: The Lens Cleaning KIT ;...
  • Page 34 DSC0608023CE S1. About Indication of The Schematic Diagram Service Manual S1.1. Important Safety Notice COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY THE SAME TYPE. Diagrams and Replacement 1.Although reference number of the parts is indicated on the P.C.B. drawing and/or Parts List schematic diagrams, it is NOT mounted on the P.C.B.

  • Page 35: S2. Voltage Chart

    S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1.

  • Page 36: S3. Block Diagram

    S3. Block Diagram S3.1. Overall Block Diagram (35mm ~ 105mm) IC3001 IC3101 PRE PROCESS IC6003 SDRAM/256Mbit CDS,AGC,A/D, 1/2.5" 6 MEGA PIX ZOOM IRIS SHUTTER OIS UNIT FOCUS CARD IC7001 MOTOR DRIVE, OIS DRIVE& PRE PROCESS IC5001 MICROPHONE AUDIO AMP MICROPHONE AMP SPEAKER SPEAKER CONTROL IC7101...

  • Page 37: S4. Schematic Diagram

    S4. Schematic Diagram S4.1. Interconnection Diagram P8001 FLASH TOP P.C.B. ET8002 ET8001 M8001 PS8001 (FOIL SIDE) P8002 AF ASSIST LED P.C.B. (COMPONENT SIDE) TL9902 TL9901 SPEAKER MICROPHONE BATTERY FP9001 LCD UNIT CP2B CP2A CP3B CP3A CP4B SUB P.C.B. CP4A SDATA SCLK MAIN P.C.B.

  • Page 38: S4.2. Flash Top Schematic Diagram

    S4.2. Flash Top Schematic Diagram CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 1.25A 32V FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES 1.25A 32V D' INCENDIE N' UTILISERQUE DES FUSIBLE DE MÉME TYPE 1.25A 32V. 1.25A 32V DMC-FX3 Flash Top...

  • Page 39: S4.3. Af Assist Led Schematic Diagram

    S4.3. AF Assist LED Schematic Diagram / S4.4. CCD Flex Schematic Diagram DMC-FX3 DMC-FX3 AF Assist LED CCD Flex Schematic Diagram Schematic Diagram...

  • Page 40: S4.5. Lens Flex Schematic Diagram

    S4.5. Lens Flex Schematic Diagram POSITIVE VOLTAGE LINE DC SOLENOID IRIS1 (IRIS) IRIS1 SHUTTER UNIT SHUT2 DC SOLENOID (SHUTTER) SHUT2 SHUT1 SHUT1 IRIS2 IRIS2 FOCUS ENCODER PHOTO SENSOR FZHP LED FZHP ZENC1 LED ZOOM ENCODER 1 ZENC1 PHOTO SENSOR ZOOM ENCODER 2 ZENC2 LED ZENC2 DCM+...

  • Page 41: S5. Print Circuit Board

    S5. Print Circuit Board S5.1. Flash Top P.C.B. (Component Side) (Foil Side) DMC-FX3 Flash Top P.C.B.

  • Page 42: S5.2. Af Assist Led P.c.b

    S5.2. AF Assist LED P.C.B. / S5.3. CCD Flex P.C.B. (Component Side) (Component Side) (Foil Side) (Foil Side) DMC-FX3 DMC-FX3 AF Assist LED P.C.B. CCD Flex P.C.B.

  • Page 43: S5.4. Lens Flex P.c.b

    S5.4. Lens Flex P.C.B. ZOOM ENCODER2 ZOOM ENCODER1 FOCUS ENCODER Pin 39 Pin 1 SHUTTER UNIT ZOOM MOTOR UNIT FOCUS MOTOR UNIT DMC-FX3 LENS FLEX P.C.B. S-10...

  • Page 44: S6. Replacement Parts List

    S6. Replacement Parts List Note: 1.* Be sure to make your orders of replacement parts according to this list. 2. IMPORTANT SAFETY NOTICE Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. 3.
  • Page 45 DMC-FX3EGM-S/K,EF-S/K,EB-S/K,PP-S/K,EG-S/K,GC-S/K,PL-S/K,EE-S/K,GT-S/K,GK-S/K,GN-S/K,GD-S/K Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks ------ P.C.B. LIST ------ VEP58032A FLASH TOP P.C.B. 1 (RTL) E.S.D. VEP59029A AF ASSIST LED P.C.B. 1 (RTL) E.S.D. VEK0K30 CCD UNIT 1 E.S.D. --- INDIVIDUAL PARTS --- C8003 F2A2F8000005...
  • Page 46 DMC-FX3EGM-S/K,EF-S/K,EB-S/K,PP-S/K,EG-S/K,GC-S/K,PL-S/K,EE-S/K,GT-S/K,GK-S/K,GN-S/K,GD-S/K Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP58032A FLASH TOP P.C.B. (RTL) E.S.D. C8004 F1K2J102A010 C.CAPACITOR 630V 1000P C8006 F1K2E4730002 C.CAPACITOR 250V 0.047U C8007 ECJ0EB1A104K C.CAPACITOR CH 10V 0.1U C8009 ECJ2FB0J106M C.CAPACITOR CH 6.3V 10U C8011 ECJ0EB1C103K C.CAPACITOR CH 16V 0.01U...
  • Page 47 DMC-FX3EGM-S/K,EF-S/K,EB-S/K,PP-S/K,EG-S/K,GC-S/K,PL-S/K,EE-S/K,GT-S/K,GK-S/K,GN-S/K,GD-S/K Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks D8002 B0HCMP000006 DIODE 1 E.S.D. D8003 MA2YF8000L DIODE 1 E.S.D. ET8001 K4BC01D00001 EARTH TERMINAL ET8002 K4BC01D00001 EARTH TERMINAL  F8001 ERBSE1R25U FUSE 32V 1.25A IC8001 C0ZBZ0000914 IC 1 E.S.D.
  • Page 48 DMC-FX3EGM-S/K,EF-S/K,EB-S/K,PP-S/K,EG-S/K,GC-S/K,PL-S/K,EE-S/K,GT-S/K,GK-S/K,GN-S/K,GD-S/K Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VHD1877 SCREW 1 (BLACK) VEP51009A SUB P.C.B. 1 (RTL) E.S.D. VHD1876 SCREW 1 (SILVER) VEP56039A MAIN P.C.B. 1 (RTL) E.S.D. VHD1877 SCREW 1 (BLACK) VGP6179 FRAME VHD1876...
  • Page 49 DMC-FX3EGM-S/K,EF-S/K,EB-S/K,PP-S/K,EG-S/K,GC-S/K,PL-S/K,EE-S/K,GT-S/K,GK-SS Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VQT0Y12 O/I PC CONNECTOR 1 GC VPF1224 CAMERA BAG 1 (EXCEPT PP) (ENGLISH/ARABIC/PERSIAN/  201 ------------ BATTERY 1 (EXCEPT PP) CHINESE(TRADITIONAL))  202 DE-A12AB BATTERY CHARGER 1 EGM,EF,EB,EG,GN...
  • Page 50 DMC-FX3EGM-S/K,EF-S/K,EB-S/K,PP-S/K,EG-S/K,GC-S/K,PL-S/K,EE-S/K,GT-S/K,GK-S/K,GN-S/K,GD-S/K Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VPF1224 CAMERA BAG 1 PP  301 ------------ BATTERY 1 PP  302 DE-A11BC BATTERY CHARGER 1 PP VFC4090 HAND STRAP 1 PP VFF0339-S CD-ROM 1 PP...

  • Page 51: S7. Exploded View

    S7. Exploded View S7.1. Frame and Casing Section 15-1 B101 B102 B103 B106 B107 B108 B14 B15 B109 B110 B104 B105 S-18...

  • Page 52: S7.2. Packing Parts And Accessories Section (1

    S7.2. Packing Parts and Accessories Section (1) (DMC-FX3EB/GC) (DMC-FX3 EE/EF/EG/EGM/GC) (DMC-FX3GD) (DMC-FX3GK/GT) (DMC-FX3GN) S-19...

  • Page 53: S7.3. Packing Parts And Accessories Section (2

    S7.3. Packing Parts and Accessories Section (2) S-20...
