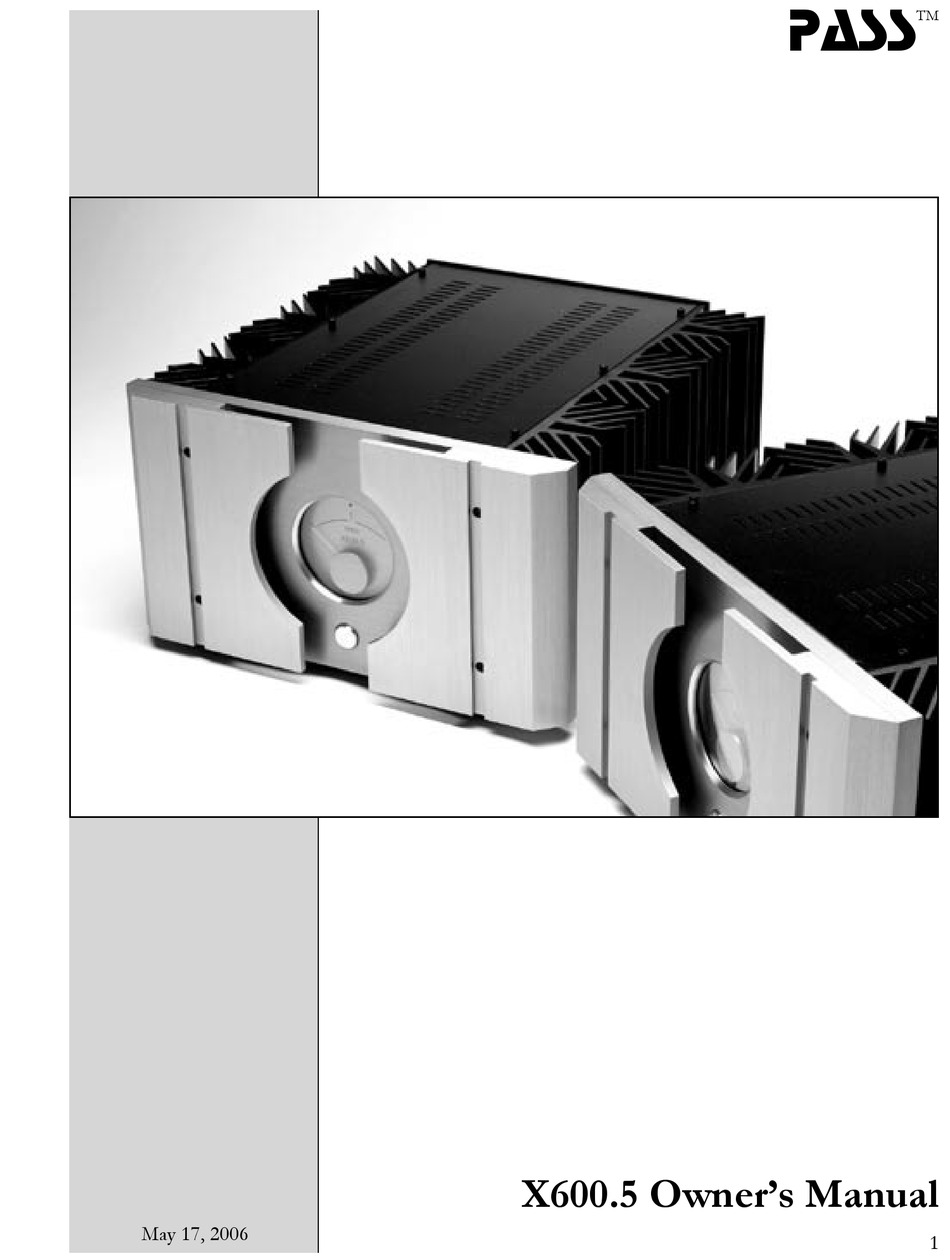

- Page 1 X600.5 Owner’s Manual May 17, 2006 X600.5 Owners Manual...
- Page 2 Introduction The Pass Laboratories ™ X600.5 stereo amplifier embodies the de- sign technology and refinements of the “X” series amplifiers includ- ing extensions of the patented Supersymmetry™ circuit. Additionally selected refinements of the XA series amplifiers have been incorpo- rated into the X600.5 to significantly improve this products sonic performance in comparison to it’s immediate predecessor, the Pass...
- Page 3 So relax and enjoy your amplifier. Call us if you ever have a problem or question. You are welcome to ask questions or offer comments. Thank you for buying our product. X600.5 Owners Manual...
- Page 4 The Pass Laboratories™ X600.5 is provided with a conventional IEC detachable AC line cord, which is rated at 15 amps. The safety ground is attached to the chassis in the conventional approved manner.
- Page 5 You must choose either XLR or RCA inputs it is not advised to try and run both concurrently. XLR input connector showing proper placement of jumper pin for use with single-ended (RCA) input. X600.5 Owners Manual...
- Page 6 9 volts to 15 volts at a current draw of approximately 5.0mA. This switching will override the front panel button, so if you want the front panel button to operate, leave the rear connection open. X600.5 Owners Manual...
- Page 7 Speaker Interface The Pass Laboratories™ X600.5 is optimized for loads nominally rated at 4 ohms and above. You can run the amplifiers into a lower nominal impedance without difficulty, and we are not aware of a speaker on the market that presents unusual difficulty with these amplifiers.
- Page 8 This is a conservatively built industrial design, not a tweaky tube circuit run on the brink of failure. If it breaks, we will simply get it fixed, so sleep well. X600.5 Owners Manual...
- Page 9 Tel: 530.367.3690 Fax: 530.369.2193 www.passlabs.com © 2006 Pass Laboratories Inc. “Pass”, “pass”, “Pass Labs”, “Pass Laboratories”, Supersymmetery”, “Aleph”, and “Zen” and are all registered trademarks of Pass Laboratories, Inc., and all rights thereto are protected by law. X600.5 Owners Manual...
-
Page 10: Warranty Information
Product with altered or missing serial numbers will be suspected as counterfeit product. Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for inter- national markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada. - Page 11 Power Cords: Pass Laboratories provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an after-market product we urge you to choose one that is fully safety rated by the necessary local authority.
