Summary of Contents for Vizio D390-B0

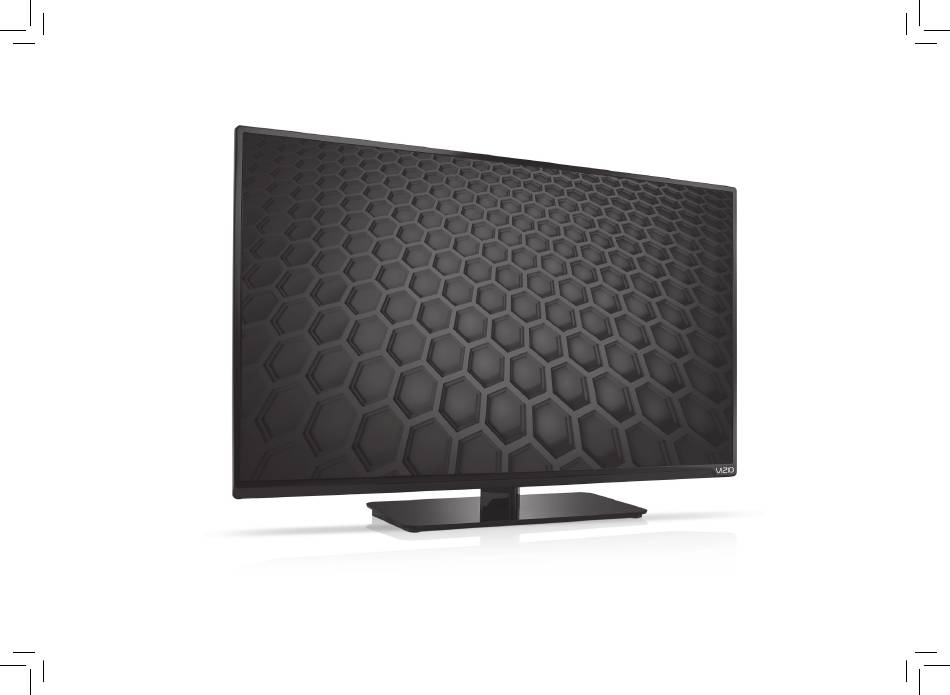

- Page 1 VIZIO QUICK START GUIDE Model: D390-B0...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric may cause fire or electric shock. shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the •... -
Page 3: Television Antenna Connection Protection
TELEVISION ANTENNA CONNECTION PROTECTION Ground Clamp Antenna Lead In Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC ART 250, part H) Electric Service Equipment • If an outside antenna/satellite dish or cable system is to be connected to •... -
Page 4: Package Contents
PACKAGE CONTENTS VIZIO LED HDTV with Stand Remote Control This Quick Start Guide with Batteries Power Cable 3 x M4 10mm Phillips Screw... - Page 5 DOWNLOAD THE FULL USER MANUAL Page shown is for illustrative purposes only. Actual page content will vary. Help VIZIO reduce paper waste. You can download the Full User Manual under the Product Downloads section of the Support tab. Download the Full User Manual for your TV.
-
Page 6: Installing The Base
INSTALLING THE BASE Place the TV screen-down on a clean, flat Align the base with the neck and tighten the three (3) included M4 10mm Phillips screws surface. To prevent scratches or damage using a Phillips screwdriver as shown. to the screen, place the TV on a soft surface such as a blanket. -
Page 7: Using The Remote
USING THE REMOTE INPUT Change the currently-displayed input. POWER Turn TV on or off. EXIT MENU Close the on-screen menu. Display the on-screen menu. ARROW Select the highlighted menu option. Navigate the on-screen menu. BACK GUIDE Go to the previous on-screen menu. Display the info window. - Page 8 FIRST-TIME SETUP Connect all of your devices first. Choose ONE connection type for each device. Match colored connectors to colored ports. BACK OF TV...
- Page 9 • DIGITAL HDMI CABLE BEST Commonly-connected • HD VIDEO (1080p)* • HD AUDIO devices: COMPONENT CABLE • ANALOG BETTER • HD VIDEO (1080i)* • STEREO AUDIO Cable or Satellite Boxes Match colored connectors to colored ports. • ANALOG COAXIAL CABLE* Blu-ray or DVD Players ™...
- Page 10 Remove the battery cover by pressing gently on Connect the power cord to the back of the TV. the arrow and sliding away from the remote. Plug the power cord into an electrical outlet. Insert the included batteries. Gently slide the battery cover back into place.
- Page 11 Choose your mode. Select Store Demo for in-store display. Select Home Use for in-home use. Seleccione "Home Use" para Modo de Casa o "Store Demo" para Demostración en la Tienda. Choisissez "Home Use" pour le Mode Domicile ou "Store Demo" pour Démo en Magasin. Store Demo Home Use Turn the TV on by pressing the...
-
Page 12: Vizio Recommends
VIZIO RECOMMENDS VIZIO XCH508 8FT HIGH SPEED HDMI CABLE – EXTREME SLIM SERIES ® Keep a low profile with the 8ft High Speed HDMI Cable – Extreme Slim Series. Ideal for ultra-thin HDTVs, its ® built-in smart chip provides picture perfect HD video, 3D and superior audio at up to 10.2 Gbps. This all-in-one cable also supports advanced 7.1 surround sound and audio return channel, eliminating the need for... - Page 13 29” 2.0 HIGH DEFINITION SOUND BAR VIZIO’s 29” 2.0 Sound Bar delivers powerful audio that is perfect for any small to medium sized HDTV. Built in DTS audio technologies deliver an immersive audio experience and limit unwanted volume fluctuations while built-in Bluetooth allows you to stream audio from your smartphone or tablet.
- Page 14 With outstanding audio performance and a built-in subwoofer, the VIZIO 21” 2.1 Sound Stand is the perfect and convenient audio upgrade for TVs up to 55 inch class in traditional media cabinets or any room in the house.
- Page 15 Do You Have Questions? Find Answers At SUPPORT.VIZIO.COM Find help with: • New Product Setup • Connecting Your Devices • Technical Problems • Product Updates • And More Live Chat Support Available Your can also contact our award-winning support team at:...
-
Page 16: Help Topics
HELP TOPICS • The on-screen menu has guided setup. Press MENU > Guided Setup. Select the type of setup you need and press OK. The Setup App begins. How do I return to the To reset the TV to factory defaults, press MENU > System > Reset & Admin > •... -
Page 17: Legal & Compliance
Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION. -
Page 18: Limited Warranty - Canada
To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 product to a VIZIO service center. Proof of purchase in the form of a purchase receipt or copy thereof is required to MY VIZIO (877.698.4946) from 7:00AM to 11:00PM Monday through Friday and 9:00AM to 6:00PM Saturday and show that a Product is within the warranty period. - Page 19 If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO Sales & Marketing México S. de. R.L. de C.V. will either repair or replace the unit at its sole option and (c) When the Product has been altered or repaired by persons not authorized by VIZIO Sales &...
- Page 20 © 2014 VIZIO INC. ALL RIGHTS RESERVED. 140604MH-US-NC...
