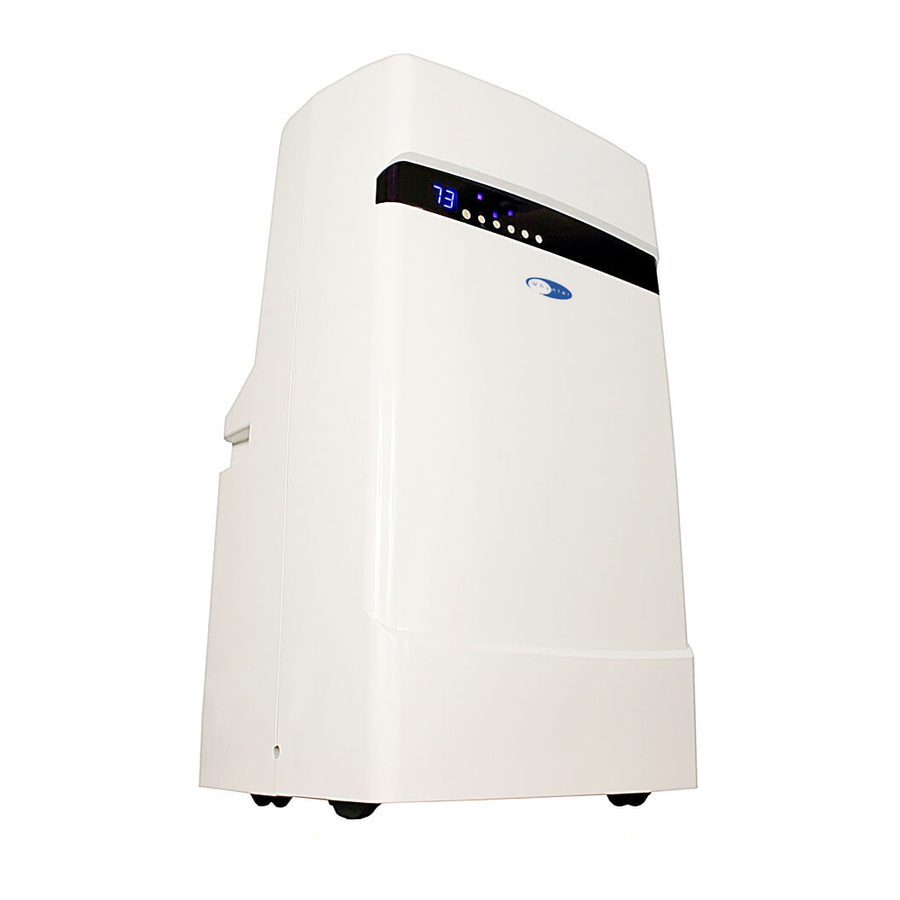

WHYNTER ECO-FRIENDLY 12,000 BTU PORTABLE AIR CONDITIONER
MODEL# : ARC-12SD
co
Instruction Manual
Congratulations on your new WHYNTER product. Please read this Instruction Manual carefully before using
this product to ensure proper operation. Keep this manual in a safe place for future reference.
V 4.20.2017-1200
