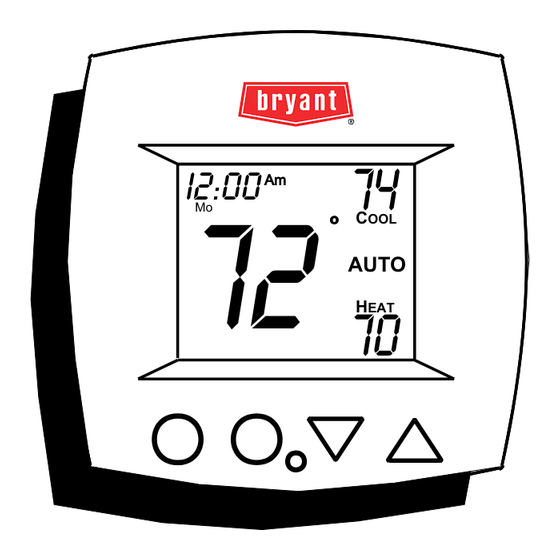

Heating & Cooling Systems
74
I2:00
72
Mo
C
OOL
AUTO
70
H
EAT
Heat Pump & Heat Cool
USERS INFORMATION MANUAL
M O D E L T S T A T B B P B 5 0 1
P R O G R A M M A B L E D I G I T A L
T H E R M O S T A T
NOTE TO INSTALLER:
This manual must be left with the equipment user.
Dual Setpoint
5+2 Day Programmable
4 Time periods
Very Easy to Program
Easy To Read Display
Thermoglow
No Batteries Required
Auto Changeover
No Batteries Required
Locking Keypad
Meets California Title 24 Residential
Backlight
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bryant TSTATBBPB501
Summary of Contents for Bryant TSTATBBPB501
- Page 1 M O D E L T S T A T B B P B 5 0 1 P R O G R A M M A B L E D I G I T A L Heating & Cooling Systems T H E R M O S T A T This manual must be left with the equipment user.
-
Page 2: Table Of Contents
4 Time Periods ADVANCED SETUP ABOUT ADVANCED OPERATION WARRANTY CAUTION Follow Installation Instructions before proceeding. SET THERMOSTAT TO MODE “OFF” PRIOR TO CHANGING SETTINGS IN SETUP OR RESTORING FACTORY DEFAULTS. Residential Light Commercial Systems TSTATBBPB501 Page 1 Carrier Corporation 04/01... -
Page 3: Front Panel
Front Panel I2:00 Liquid Crystal Display with Thermoglow Up/Down Buttons Mode Button Fan Button Heat or Cool Indicator Heat = Red, Cool = Green Page 2 AUTO... -
Page 4: Display
Display I2:00 SuMoTuWeThFrSa Morning DayEvening Fan On Mode Indicators Selects the operation mode of the equipment. HEAT - indicates the heat mode. COOL - indicates the air conditioning mode. AUTO - indicates the system will automatically changeover between heat and cool modes as the temperature varies. - Page 5 Display Morning, Day, Evening & Night Indication Indicates the program time period. Page 8-11. Setup Indication Indicates the thermostat is in the programming mode. Page 12. Fan Operation Indication Fan On - indicates constant, continuous fan operation. When Fan On is not lit - indicates the fan will only operate when necessary to heat or to cool.
-
Page 6: Quick Start Set The Clock And Go
To optimize the installation of this thermostat follow the instructions in the Advanced Setup section. * The thermostat is not preprogrammed from the factory to operate electric heat or heat pump systems. To control these systems, follow the steps in the Advanced Setup section, pages 12 &... -
Page 7: Basic Operation
Basic Operation Select Mode The HEAT setting indicates the temperature the room has to reach before the furnace will turn on to heat the room. The COOL setting indicates the temperature the room has to reach before the air conditioner will turn on to cool the room. -
Page 8: Select Desired Temperature
Pressing the up/down buttons in Heat or Cool modes will adjust only the heat or cool set temperature. Press Operation I2:00 Fan On indicates constant fan operation. This feature is active even if the thermostat is set to Off. AUTO Fan On Page 7 In any mode, adjust the... -
Page 9: Programming
Programming Press the Mode button. While holding the Mode, press the Up button for 2 seconds to enter time period programming. MODE Select the Day of the Week. MoTuWeThFr or SaSu. (Weekday or Weekend schedule) Adjust the start time for Morning. - Page 10 Programming 4 Time Periods Adjust the start time for Day. Adjust the cooling setpoint for Day. (35 - 99) Adjust the heating setpoint for Day. (35 - 99) Adjust the start time for Evening. Adjust the cooling setpoint for Evening. (35 - 99) Page 9 I0:30...
- Page 11 Programming 4 Time Periods Adjust the heating setpoint for Evening. (35 - 99) I I:30 Adjust the start time for Night. I I:30 Adjust the cooling setpoint for Night. (35 - 99) I I:30 Adjust the heating setpoint for Night. (35 - 99) Page 10 5:30...
- Page 12 Programming 4 Time Periods Select the Day of the Week. MoTuWeThFr or SaSu. (Weekday or Weekend schedule) Continue Time Period Programming Morning through Night as done in previous steps starting on page 8 for the Weekend schedule. Press the Mode button. While holding the Mode, press the Up button for 2 seconds to exit time period programming.
-
Page 13: Advanced Setup
Advanced Setup Press the Mode button. MODE While holding the Mode, press the Fan button for 5 seconds to enter Setup screens. I2:00 Adjust the time of day clock. Tip: To change hours quickly, press and hold the Fan button in and press the up or down buttons. - Page 14 Advanced Setup Select the reversing valve polarity for Heat Pump, O or B. (Step 4 only appears if heat pump is on in step 3) Select Electric Heat On or Off. (Step 5 only appears if heat pump is off in step 3) Adjust the deadband from 1 - 6 degrees.
- Page 15 Compressor lockout. (d, d1, 2 - 6) Select the display back- light always On, or Off after 8 seconds. Select thermostat operation in degrees Fahrenheit or Centigrade. Press the Mode button. While holding the Mode, press the Fan button for 2 seconds to leave the Setup screens.
-
Page 16: Advanced Setup Table
Advanced Setup Advanced Setup Table Step # Description Time of day clock set Day of the week Heat Pump Reversing Valve polarity Electric Heat Deadband or Temperature swing Forced minimum difference heat/cool Cycles per hour Thermoglow backlight Fahrenheit or Centigrade Page 15 Range Factory Default... -
Page 17: About Advanced Operation
About Advanced Features & Operation 2 STAGE OPERATION - The 2nd Stage of heat or cool is turned on when (1) the 1st Stage has been on for a minimum of two minutes, and (2) the temperature spread from the setpoint is equal to or greater than: the setpoint plus the deadband, plus 2 degrees. - Page 18 Exiting Emergency Heat is the same as entering. During Emergency Heat only OFF and HEAT are available. ELECTRIC HEAT - Selecting Electric Heat on, page 13, step 5, will cause the thermostat to turn on the fan immediately any time there is a heat demand. Since all...
- Page 19 About Advanced Features & Operation KEYPAD LOCK - To prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold in the Mode button. While holding the Mode button in, press the Up and Down buttons in together.
- Page 20 About Advanced Features & Operation DUAL SETPOINT BEHAVIOR - The adjustable setpoint range is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in Centigrade. When in the modes Heat or Cool, this adjustable range is unhampered. When adjusting any Auto mode, including programming Occupied and Unoccupied periods, the 1050 will not allow the Heat setpoint to get closer to the Cool setpoint than the value programmed as the minimum difference in...
- Page 21 About Advanced Features & Operation About Advanced Features & Operation FACTORY DEFAULTS - If, for any reason it is desirable to return all stored settings back to the factory default settings, press the Mode button. While holding the Mode button in, press the Down button for 2 sec. All icons will appear.
-
Page 22: Warranty
Warranty Five-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If defect appears within five years from the date of original installation, whether or not actual use begins on that date, then the product does meet this warranty. A new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;...
