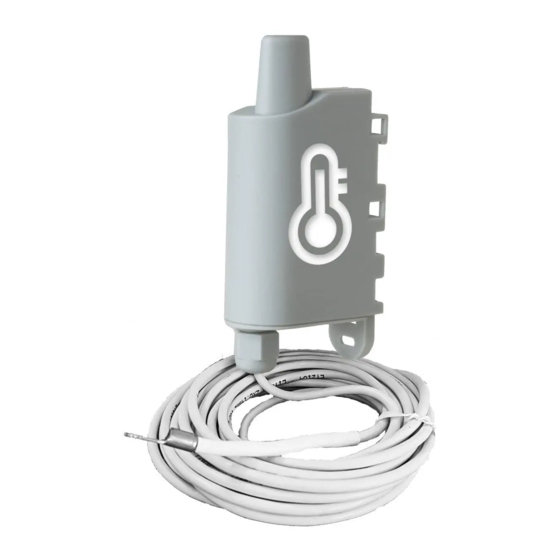

Adeunis RF ARF8180BCA User Manual

Temp v4 ip68 lorawan 863-870 ambient probe and remote probe and lorawan 863-870 temp two external probes
Hide thumbs Also See for ARF8180BCA:
Table of Contents

Advertisement

Quick Links

Download this manual
TEMP V4 IP68 LoRaWAN 863-870
Ready-To-Use Temperature Device
Ce Guide utilisateur s'applique à partir des versions logiciel suivantes :
Version RTU : V02.00.01
Version APP : V02.01.00
ATTENTION : Ces versions de software ne sont pas compatibles avec des versions pré-
cédentes du produit.
Ce Guide utilisateur s'applique pour les deux versions de produit suivantes :
•
TEMP sonde ambiante et sonde déportée
•
TEMP double sonde déportée
This User Guide applies from the following firmware versions:
Version RTU : V02.00.01
Version APP : V02.01.00
WARNING : These software versions are not compatible with previous hardware ver-
sions of the device.
This User Guide applies from the following product versions:
•
TEMP ambient probe and remote probe
•
TEMP two external probes
Adeunis
283 rue Louis Néel - Parc Technologique Pré Roux
38920 CROLLES - France
www.adeunis.com
Guide utilisateur / User Guide
Version 3.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARF8180BCA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Adeunis RF ARF8180BCA

Summary of Contents for Adeunis RF ARF8180BCA

  • Page 1 TEMP V4 IP68 LoRaWAN 863-870 Ready-To-Use Temperature Device Guide utilisateur / User Guide Version 3.1.1 Ce Guide utilisateur s’applique à partir des versions logiciel suivantes : Version RTU : V02.00.01 Version APP : V02.01.00 ATTENTION : Ces versions de software ne sont pas compatibles avec des versions pré- cédentes du produit.

  • Page 2: English

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 NOUVELLE DOCUMENTATION / NEW DOCUMENTATION ENGLISH FRANÇAIS • Dedicated to a product • Dédié à un produit • Cautions & electrical warnings • Recommandations et avertissements électriques USER GUIDE •...

  • Page 3: Table Of Contents

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 ENGLISH PRODUCTS AND REGULATORY INFORMATION PRODUCT PRESENTATION 1.1. General description 1.2. Dimensions 1.3. Two versions of the product 1.4. Electronic board 1.5. Technical specifications 1.5.1 General characteristics 1.5.2 Electric characteristics 1.5.3 Probes characteristics 1.5.4 Autonomy...

  • Page 4: Products And Regulatory Information

    3.1.1 This document applies to the following products : Name Part number Version firmware TEMP V4 IP68 LoRaWAN 863-870 ambient probe and ARF8180BCA Version RTU : V02.00.01 remote probe Version APP : V02.01.00 LoRaWAN 863-870 TEMP two external probes ARF8180BCB Version RTU : V02.00.01...
  • Page 5 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 36 of 61...
  • Page 6 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 INTRODUCTION All rights to this manual are the exclusive property of adeunis®. All rights reserved. Copying this manual (wit- hout written permission from the owner) via printing, copying, recording or by any other means, translating this manual (in full or partially) into any other language, including all programming languages, using any electrical, mechanical, magnetic or optical devices, manually or any by other methods, is prohibited.
  • Page 7 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 ENVIRONMENTAL RECOMMENDATIONS All superfl uous packaging materials have been eliminated. We have done everything possible to make it easy to separate the packaging into three types of materials: cardboard (box), expanded polystyrene (fi ller material) and polyethylene (packets, foam protective sheets).
  • Page 8 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 RECOMMANDATIONS REGARDING USE • Before using the system, check that the power supply voltage shown in the user manual corresponds to your supply. If it doesn’t, please consult your supplier. •...

  • Page 9: Product Presentation

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 1. PRODUCT PRESENTATION IMPORTANT NOTE: The TEMP V4 IP68 LoRaWAN 863-870 can be started with a magnet or switching the product in PRODUCTION mode using the IoT Configurator. Description : •...

  • Page 10: General Description

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 1.1. General description 1.2. Dimensions 1.3. Two versions of the product 1.4. Electronic board Internal antenna RF module Internal battery LoRaWAN protocol USB Port for configuration Terminal for external supply 1 2 3 4 41 of 61...
  • Page 11 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 Values in millimeters Product with ambient probe and remote probe: remote probe ambient probe Product with two external probes: remote probe remote probe 42 of 61...

  • Page 12: General Characteristics

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 1.5. Technical specifications 1.5.1 General characteristics Parameters Value Working temperature -25°C / +70°C Dimensions 132 x 62 x 34mm Weight 148g 1 Remote probe, 185g 2 remote probes Casing IP 68 Radio standards...

  • Page 13: Autonomy

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 1.5.4 Autonomy Usage conditions Nb of frame per day Event per day Autonomy (years) SF7 Autonomy (years) SF12 Product in stock : maximum > 10 > 10 1 year.

  • Page 14: Product Operation

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 2. PRODUCT OPERATION 2.1. Global operation PARK MODE Presence of a magnet on the product >5s Command send- ing by serial link COMMAND MODE PRODUCTION MODE Auto adaptation Information sent if (cf Low battery Battery replaced...
  • Page 15 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 functioning of the battery. 2.2. JOIN process 2.2.1 Start-up of the product, JOIN process and configuration The product start the JOIN process after entering PRODUCTION mode (after the detection of the magnet or after the exit of the command mode).

  • Page 16: Transmission Modes

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 In any case, the product will send the first frames directly in the SF determined by the result of the test. 2.4. Transmission modes The product allows to measure temperature on 2 probes or 1 probes only, to save the information and to send it according to 3 modes of emis- sion.
  • Page 17 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 In which mode I want my product? Alarm with Periodical thresholds Periodical + Alarm What is my sampling period? A sample every X A sample every X A sample every X seconds seconds...
  • Page 18 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 To program registers, here are the steps to follow depending on the chosen mode. Example of possible configurations: Case (no 100% alarm) with 2 probes activated Associated con- Theoretical number figuration of periodical frame...

  • Page 19: Periodical Transmission With Or Without Historisation

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 2.4.1 Periodical transmission with or without historisation The product enables to measure and send the data from the probe following the diagram bellow. This periodical transmission can be done with or without historisation of the data. The product enables to activate or deactivate a probe.

  • Page 20: Periodical Transmission With Redundancy

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 2.4.2 Periodical transmission with redundancy The product enables to add redundancy in the frame sent (cf diagram bellow). Thanks to the redundancy the product will save samples locally in order to resend them in the next frame.

  • Page 21: Transmission On Threshold Overpassed

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 2.4.3 Transmission on threshold overpassed Stand-by mode Sampling pe- riod reached? Temperature measure and saving probe 1 Temperature measure and saving probe 2 Value > (low Value <(high High alert Low alert threshold +...
  • Page 22 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 The product will send the frame when a threshold is overpassed but also when temperature comes back to normal (cf status alarm). Explication of the thresholds and their hysteresis: High threshold High threshold - high threshold hysteresis Sensor value...

  • Page 23: Transmission On Threshold Overpassed With Alarm Repetition

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 2.4.4 Transmission on threshold overpassed with alarm repetition The product enables the detection of a threshold overpassed (high and low) for each probe and to repeat this alert depending on a determined period (register S321 x S322).

  • Page 24: Transmission Of The Keep Alive Frame

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 2.4.5 Transmission of the Keep Alive frame In the event mode, it is possible that the product would never send data frames. So to be sure that it is working properly a Keep Alive frame is transmitted regularly (following diagram).

  • Page 25: Operation Of The Led

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 WARNING: a battery must be present and connected in the product to enable this “back-up’ mode. 2.6. Timestamp of the data The sensor can integrate the timestamp of the data in the frame if this option is activated.

  • Page 26: Registers And Frame Description

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 LEDs scenario for a sensor configured in Class A OTAA: 3. REGISTERS AND FRAME DESCRIPTION To know the content of the registers and of each frames (uplink and downlink) of the product, refers to the TECHNICAL REFERENCE MANUAL of the TEMP product, available on the adeunis website: https://www.adeunis.com/en/produit/temp/ 4.

  • Page 27: Wiring

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 5. WIRING 5.1. Disconnect a probe To disconnect a probe, please follow these instructions: Remove the Open the product by screws pulling on the cable gland WARNING : do not pull on the wires 5V + - 1 2 3 4...

  • Page 28: Wiring A Probe

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 5.2. Wiring a probe In order to wire a probe, please follow these instructions: Remove the Open the product by screws pulling on the cable gland WARNING : do not pull on the wires 5V + - 1 2 3 4...

  • Page 29: Wiring External Supply

    TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 5.3. Wiring external supply A terminal is present in the product to connect an external supply in order to: - Use the Class C LoRaWAN (mandatory for this mode) - Improve the autonomy of the product - Send more frames more regularly.
  • Page 30 TEMP V4 IP68 LoRaWAN 863-870 - Guide utilisateur / User guide version V3.1.1 6. DOCUMENT HISTORY Version Contents V1.0.0 Creation V1.0.1 Update Declaration of Conformity V1.2.0 Update Part 3 V2.0.0 Changes after update RTU & APP V2.0.1 Two external probes product and changes after APP updates V3.0.0 Add of applicative functionalities (historisation, redundancy, alarm repetition) V3.0.1...
