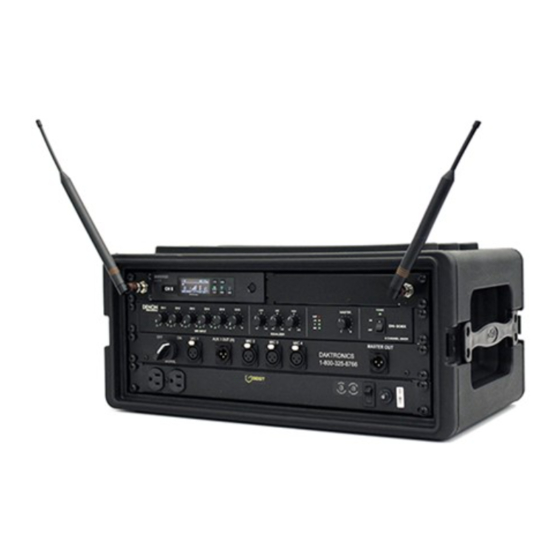

Daktronics Sportsound SSR-100 Gen II Quick Start Manual
Hide thumbs
Also See for Sportsound SSR-100 Gen II:
- Operation manual (32 pages) ,
- Operation manual (36 pages)
Advertisement
Quick Links
Sportsound SSR-100 Gen II Quick Start Guide
This guide will assist with starting up and operating a Sportsound
SSR-100 Gen II audio rack. For detailed operation, configuration,
and troubleshooting, refer to the
Operation Manual
(DD3687808).
Setup
Place the rack on a flat, sturdy surface. Remove the front and rear
cover pieces by releasing all latches; set the covers aside.

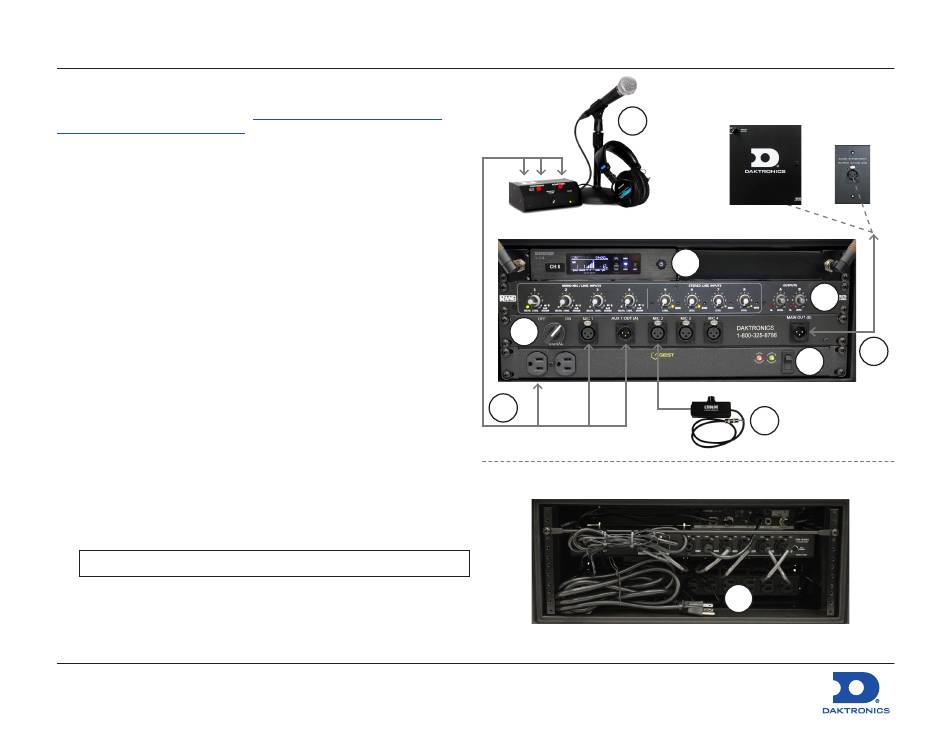

1. Announcer's Interface setup is described below. Refer also to the
quick guide (DD3083838) shipped with the device.
a. Connect the 2' (610 mm) XLR cable between the microphone
and the MIC 1 INPUT jack.
b. Connect headphones to the 1/4" or 1/8" jack.
c. Connect the provided 12 VAC wallpack transformer to the
power input jack, and then use the tab above the power jack
as a strain relief for the power cord.
2. Connect the 15' (4.6 m) XLR cable from MIC 1 & AUX 1 on the
announcer's interface to the MIC 1 & AUX 1 OUT jacks on the
front of the rack. Also, plug the wallpack transformer into one of
the power outlets on the front of the rack.
3. Connect one end of a 2' (0.6 m) or 5' (1.5 m) XLR cable to the
LTIBLOX unit and the other end to MIC 2. The 3.5 mm plug may be
connected to the headphone jack of a laptop or MP3 player.
4. Connect the 25' (7.6 m) XLR cable between the MAIN OUT (B)
jack on the front of the rack and the SYSTEM AUDIO jack on the
bottom of the fiber box. If there is no fiber box, as in an indoor
system, the cable typically connects to a wall plate junction box.
Note: For Denon DN-306X mixers, connect to MASTER OUT.
5. Plug the 3-prong power cord in the rear of the rack into a
standard outlet. Ensure the fiber box (if included) also has power.
6. Turn on the power strip, mixer, and optional wireless receiver(s).
7. Switch the SIGNAL to ON.
DD3687811
Rev 01
27 September 2018
®
Sportsound Rack SSR-100 Gen II
201 Daktronics Drive
Brookings, SD 57006-5128
www.daktronics.com/support
Announcer's
Interface
7
2
800.325.8766
Page 1 of 4
Fiber Box
(outdoor)
1
Front View
6
6
3
Laptop
Interface
Rear View
5
Wall Plate
(indoor)
OR
6
4
