Reference Drawing: System Riser Diagram ..................DWG-1007804 Daktronics identifies manuals by the DD or ED number located on the cover page. Daktronics has a searchable knowledgebase of common questions and troubleshooting tips: www.daktronics.com/support...
If a component is not found in Section 5: Replacement Parts (p�16), 02/19/12 Rev. 1 use the label to order a replacement. Refer to Section 6: Daktronics Exchange and Repair & Return Programs (p�17) if replacing or Figure 2: Part Label repairing any display component.

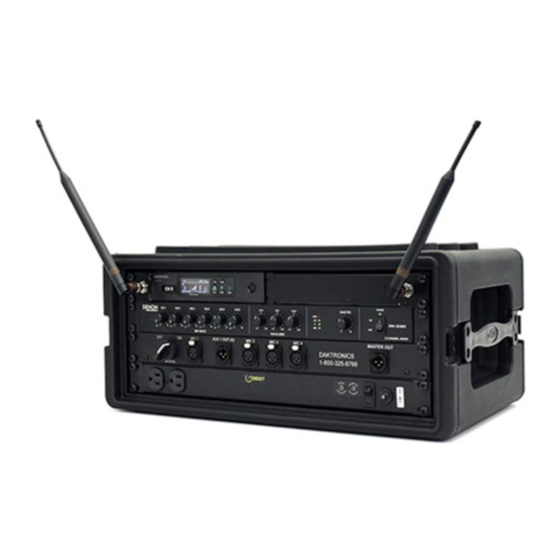

SSR-100 Components Reference Drawing: Schematic/Layout; SSR-100 Gen II ..............DWG-3684035 Figure 3 displays the various announcer’s rack components that are visible after removing the protective covers. Refer to DWG-3684035 in Appendix A for rack component and connection locations as well as a detailed wiring schematic. Figure 3: SSR-100 Components Component Reference...
• Black powder-coated aluminum chassis Figure 5: Laptop Interface Announcer’s Interface The Daktronics Announcer’s Interface (Figure 6) includes one (1) balanced MIC output, one (1) balanced AUX input, and headphone jacks; headphone volume control knob; and momentary or continuous microphone activation buttons.
Optional Equipment Wireless Microphone System The Shure QLX-D is a professional UHF wireless microphone system. Dual receivers in the ® ® audio rack allow operation of two wireless transmitters simultaneously (Figure 7). Over 60 compatible channels per frequency band and up to 17 compatible systems per 6 MHz TV channel are available.
Single-Muff Headset The professional single-muff headset (Figure 9) may be used in place of the standard announcer’s interface wired microphone and headphones. Other features include: • Ambient noise attenuation • Neodymium magnet system for high reproduction precision • Soft, circumaural ear pads •...
Setup & Operation Setup Place the rack on a flat, sturdy surface. Remove the front and rear cover pieces by releasing all latches; set the covers aside. Refer to the steps below and Figure 12. 1� Announcer’s Interface setup is described below. Refer also to the quick guide (DD3083838) shipped with the device.
Page 12
Fiber Box Announcer’s (outdoor) Interface Wall Plate (Gen II) (indoor) Front View Laptop Interface Rear View Figure 12: SSR-100 Setup w/ Announcer's Interface Before continuing, be sure to also power on the speaker cabinet(s)� Setup & Operation...
Mixer Operation Remember: Bad input = bad output. No adjustment on the mixer can make a poor source sound better. For best results, be sure to use high-quality audio files from your MP3 player or laptop, and set the device to near full volume. Whenever red LEDs are illuminated on the mixer, this is generally a sign that input settings need adjustment.
Denon DN-306X Basic instructions are described below. For more information about mixer operation, refer to the Denon DN-306X User Guide. • Ensure all source equipment is turned on and operational. If any optional wireless microphone systems are included, refer Wireless Mic System Operation (p�11). For each channel (input source) in use, verify the green SIG LED is illuminated •...
Wireless Mic System Operation Basic instructions are described below. For more information about wireless mic system operation, refer to the Shure QLX-D Wireless System User Guide. Wireless Receiver IR Window Power Figure 19: Wireless Receiver LCD & Controls The unit displays the following information (Figure 19): Power ON/OFF a�...
IR Window Power Wireless Mic & Bodypack Operation Power ON/OFF IR Window Power ON/OFF Figure 20: Wireless Mic & Bodypack Controls 1� Open the battery cover. Insert new or fully-charged AA batteries prior to each use, and always have spares on hand. 2�...
Communicate to the referee that they shouldn’t be making announced calls past a certain point on the field. For additional recommendations for reducing wireless microphone dropouts and feedback, refer to the Wireless Mic Best Practices (DD3871886), available online at www.daktronics.com/manuals. Setup & Operation...
This list does not include every possible problem, but it does represent some of the more common situations that may occur. If individual components fail to work, refer to troubleshooting sections in the manufacturers’ manuals. If the problem persists, please contact Daktronics for assistance. Symptom/Condition Possible Cause...
Page 19
Symptom/Condition Possible Cause Potential Solution For Wireless The battery is not installed Reinstall the battery properly. properly in the transmitter. The battery is not providing full Charge or replace battery. power. No signal present at mixer from wireless microphones The transmitter is not switched Switch the transmitter to the ON to the ON position.
Fill out and attach the enclosed UPS shipping document. c� Ship the part to Daktronics. 3� The defective or unused parts must be returned to Daktronics within 5 weeks of initial order shipment� If any part is not returned within five (5) weeks, a non-refundable invoice will be presented to the customer for the costs of replenishing the exchange parts inventory with a new part.
Repair & Return Program For items not subject to exchange, Daktronics offers a Repair & Return Program. To send a part for repair, follow these steps: 1� Call or fax Daktronics Customer Service� Refer to the appropriate number in the chart on the previous page.
Reference Drawings Refer to Resources (p�1) for information regarding how to read the drawing number. Any contract-specific drawings take precedence over the general drawings. Reference Drawings: Schematic/Layout; SSR-100 Gen II ..............DWG-3684035 Reference Drawings...
Page 25
POWER ON ALL EQUIPMENT, AND TEST FOR PROPER FUNCTIONALITY. REFER TO WORK INSTRUCTION FOR PROCEDURE. ANY MEANS WITHOUT THE EXPRESS WRITTEN CONSENT OF DAKTRONICS, INC. OR ITS WHOLLY OWNED SUBSIDIARIES. PLACE WIRELESS TRANSMITTER EQUIPMENT IN THEIR SUPPLIED CASES. COPYRIGHT 2017 DAKTRONICS, INC. (USA) FOLD DOWN ANTENNAS AND SECURE LIDS ON CASE.
• When viewing a digital copy of this manual from www.daktronics.com/manuals, click on the appropriate manufacturer link below to view a component’s manual. If the link is broken, visit the manufacturer’s website or perform a web search for the component model number.
Daktronics Warranty & Limitation of Liability This section includes the Daktronics Warranty & Limitation of Liability statement (SL-02374)� Daktronics Warranty & Limitation of Liability...
Page 32
Limitation of Liability Daktronics shall be under no obligation to furnish continued service under this Warranty if alterations are made to the Equipment without the prior written approval of Daktronics. It is specifically agreed that the price of the Equipment is based upon the following limitation of liability. In no event shall Daktronics (including its subsidiaries, affiliates, officers, directors, employees, or agents) be liable for any claims asserting or based on (a) loss of use of the facility or equipment; lost business, revenues, or profits; loss of goodwill; failure or increased cost of operations; loss, damage or corruption of data; loss resulting from system or service failure, malfunction, incompatibility, or breaches in system security; or (b) any special, consequential, incidental or exemplary damages arising out of or in any way connected with the Equipment or otherwise, including but not limited to damages for lost profits, cost of substitute or replacement equipment, down time, injury to property or any damages or sums paid to third parties, even if Daktronics has been advised of the possibility of such damages. The foregoing limitation of liability shall apply whether any claim is based upon principles of contract, tort or statutory duty, principles of ...
