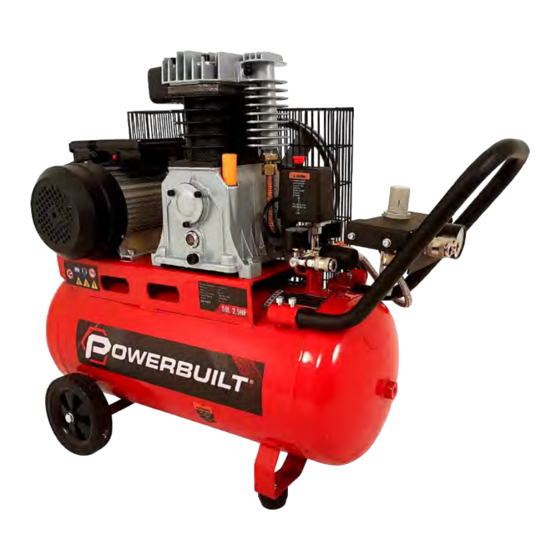

Summary of Contents for Powerbuilt AC5025
-
Page 2: Table Of Contents
TABLE OF CONTENTS Thank You For your Purchase ............................3 Unpacking Your New Compressor ..........................3 Hazards and Safety ................................. 4 Work Area Safety ................................4 Personal Safety ................................4 Electrical Safety ................................5 Air compressor Safety ..............................5 Technical Description..............................5 Compliance Plate ................................ -
Page 4: Hazards And Safety
Read all safety warning and all instructions. This Operating Manual has been designed to instruct you on the correct operation of your Powerbuilt product. Your satisfaction with this product and its safe operation is our ultimate concern. Therefore, please take the time to read the entire manual, especially the safety symbols and instructions They will help you to avoid potential hazards that may exist when working with this product. -
Page 5: Electrical Safety
ELECTRICAL SAFETY ELECTRICITY CAN KILL • Guard against electrical shock by preventing body contact with grounded surfaces, e.g., pipes, radiators, ovens, refrigerator enclosures. • Do not abuse cord. Never carry or drag the compressor by the cord or yank it to disconnect from wall socket. Keep cord away from heat, oil, and sharp edges. -
Page 6: Technical Description
TECHNICAL DESCRIPTION SPECIFICATION UNITS AC5025 Drive Belt Drive Motor Winding Copper Tank Size Horsepower Motor RPM 2850 Pump RPM 1030 Air Pressure 0-120 Displacement 312 L/min (11 CFM) Free Air Delivery @ 90 PSI 238 L/min @ 90 PSI Wheel Size... -
Page 7: Input Plug
Whilst running a vehicle in the red zone all the time is great to get you where you need fast!! It dramatically shortens the life of the vehicle’s engine. The same is said with duty cycles – to obtain the best life and performance out of your tool or compressor purchase a compressor that suits your application. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Compressor does not run No Electrical power Check unit is plugged in and power point turned on Check fuse/circuit breaker Motor overload protection has tripped Ensure compressor is plugged directly into the wall socket – not extension lead Let motor cool and overload protection switch will reset Faulty pressure switch... -
Page 18: Warranty Statement
Powerbuilt Tools and assist you through the warranty process. WARNING Repairs to this compressor must be made by a qualified Powerbuilt service agent. Powerbuilt will not be responsible for any damage or injuries caused by the repair or attempted repair by an unauthorized... -
Page 21: Notes
NOTES... - Page 22 NOTES...
- Page 23 NOTES...
- Page 24 Powerbuilt is a registered trademark of Alltrade Tools, LLC. New Zealand Customer enquiries should be directed to: Alltrade Tools NZ (2016) Ltd support@powerbuilttools.co.nz www.powerbuilttools.co.nz Made in China 2021, Alltrade Tools, LLC...
