Rev-A-Shelf 441-12VSBSC-1 Quick Start Manual

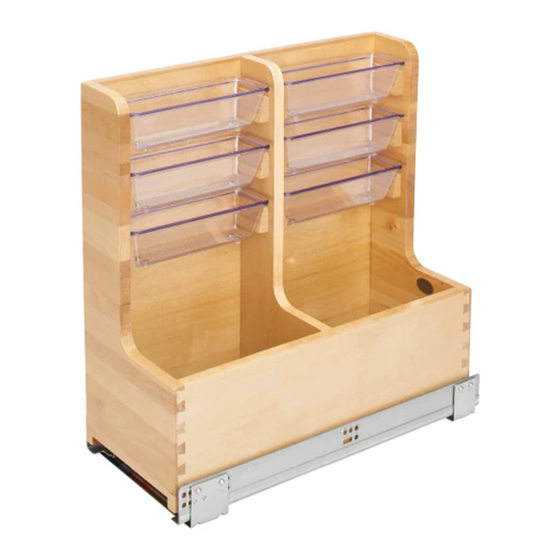

L-SHAPED VANITY ORGANIZER FOR 24" VANITY SINK BASE CABINET
TOOLS REQUIRED:
3
32
ESTIMATED ASSEMBLY TIME:
30 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth and
wipe parts dry.
PARTS LIST
- L-Shaped Vanity Organizer
- Blum Release Triggers
- (2) Slide Locking Devices
- (4) #8 x 3/4" Pan Head Screws
- (4) #6 x 1/2" Pan Head Screws
- (6) Plastic Trays
- (2) Wood Plug Covers

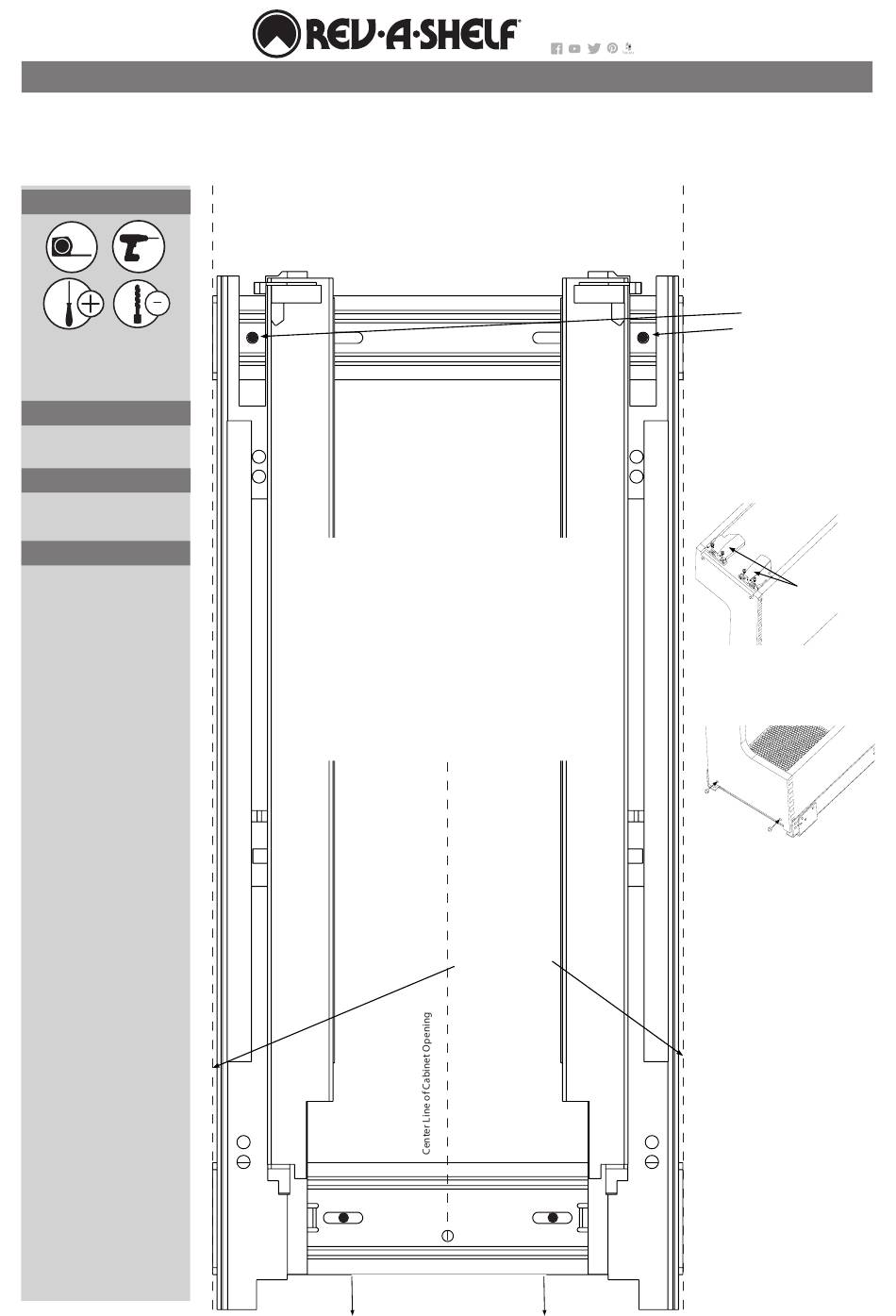

Attaching slide to cabinet
1) Install the right and left Blum release triggers on the bottom of the drawer
using (2) #6 x 1/2" pan head screws for each trigger (See Fig. 1).
2) Insert wood plug covers to cover holes (see Fig. 2).
3) Using the mounting template locations, pre-drill (4) holes using a 3/32" drill
bit.
4) Remove template and attach the slide assembly to the floor of the cabinet
using (4) #8 x 3/4" pan head screws provided.
5) With the slides in the fully closed position, place the frame on the slides and
push back until you feel the slides engage the locking devices (you will hear a
click sound). Fully cycle the frame a few times.
Front edge of paper
to front of cabinet
(or front of face frame)
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
Fold Template along
this edge to fit cabinet
opening.
Screw and Pilot Hole
Location (4) Places
Fig. 1
Blum release triggers
need to be at front of unit
Fig. 2
T-441-12VSBSC-0218
