Thetford SANICON TURBO 300 Manual

Parts: K1 - K3
K3 K1
C1
K2
K4
New Ref. Description
K1 K1 (1x) Pump Assembly
K1.1 Pump Red Wire
K1.2 Pump Black Wire
K2 K2 (1x) Fuse Holder / 35AMP Fuse
K3 K3 (2x) Alligator Clips
K4 K4 (2x) Connector, 10-12 AWG
NI A Quick Connect
A.1 Quick Connects Red Wire
A.2 Quick Connects Black Wire
NI B RV Power Source
B.1 Power Source Red Wire
NI C 1.5" Discharge Hose Assembly
C.1 Clamp
NI NOT INCLUDED - Reference only.
Tools Needed:
■ Wire Cutter/Stripper
■ Wire Crimper
■ Channel Lock Pliers
Thetford Corporation recommends that only
AVISO AVIS
NOTICE ATTENTION ATENCIÓN DANGER DANGER CAUTION
! ! ! ! !
a trained and qualified technician service this
ATTENTION ATTENTION ATTENTION ATTENTION
product and plumbing and electrical work be
performed by a licensed tradesperson. Local
permit and code compliance is required.
Thetford Corporation accepts no responsibil-
ity or liability for damage to equipment, injury,
or death that may result from the system's
improper installation, service, or operation.
The pump is-suitable for indoor and outdoor
use, but must be protected against water.
Questions?/Des questions?/¿Preguntas? 1-800-543-1219
P.O. Box 1285
Ann Arbor, MI 48106
www.thetford.com

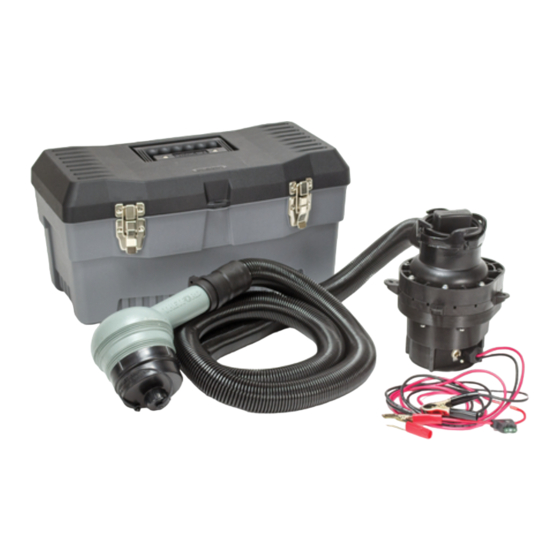

300 Pump Assembly Kit
C
Part No.
N° de pièce
Pieza n.°
+
B
B.1
Be sure power has been disconnected before
AVISO ATTENTION ATENCIÓN CAUTION DANGER AVIS
NOTICE
! ! ! !
you continue.
ATTENTION ATTENTION ATTENTION
PREPARE
■ Flush all debris from holding tanks.
■ Close all dump valves.
REMOVE PART
USE OLD PARTS:
C1
1. Loosen . Remove
A
2. If equipped with , cut
aside.
REPLACE PART
USE NEW PARTS:
Without Quick Connect:
C K1
1. Attach to ; secure with
K1
2. Power up ; verify voltage at motor is 12V.
Improper installation may damage motor or
AVISO AVIS
NOTICE CAUTION
!
decrease motor efficiency.
With Quick Connect:
K1
1. Attach to RV's drain outlet.
K1.1 K1.2
2. Cut and
K1.2
and
C K1
3. Attach to ; secure with
K1
4. Power up ; verify voltage at motor is 12V.
Improper installation may damage motor or
AVIS
NOTICE AVISO CAUTION
!
decrease motor efficiency.
5. Use grey water to check for leaks.
1
Made in the U.S.A.
Fabriqué aux É.-U.
Hecho en EE. UU.
A.2
K1.1
K2
A
K1
A.1
K1.2
C
; set aside.
K1.1 K1.2;
and discard
C1
.
to desired length; connect
C1
.
Form/Formulaire n°/Formulario n.° 97637 Rev. A 04.25.17
