24571 Wire Replacement Package
Installation Instructions
Aqua-Magic IV High/Low Foot-Pedal Flush
manufactured after 10/19/92. (Date on Product ID
Label reads 921019 or higher.)
Tools Required
• Phillips Screwdriver
• Flat-Blade Screwdriver
• 7/16" Combination Open-End, Box-End Wrench
• Needlenose Pliers
• Wire Cutters
• Allen Wrench (included in Wire Collar Package)
• Permanent Ink Marker
• Paper Towels (or shop rag to wipe grease)
Caution
Human waste contains harmful organisms which can lead to
serious diseases. Avoid exposure and always wash with an
antibacterial soap following exposure. We also recommend
safety glasses when working on this and all mechanical projects.
Set Screws (4)
Wire Retainer Collars
(4)
Ball Retainers
Allen Wrench/
Clé hexagonale
Lever Return
Spring
Bearing
Wire End
Washer
Caps (2)
Lever Arm Assembly
Mechanism Cover
Screws (3)
Ball Retainer
(2)
Screws (2)
Long Screw
Closet
Flange
Seal
Outlet Cap

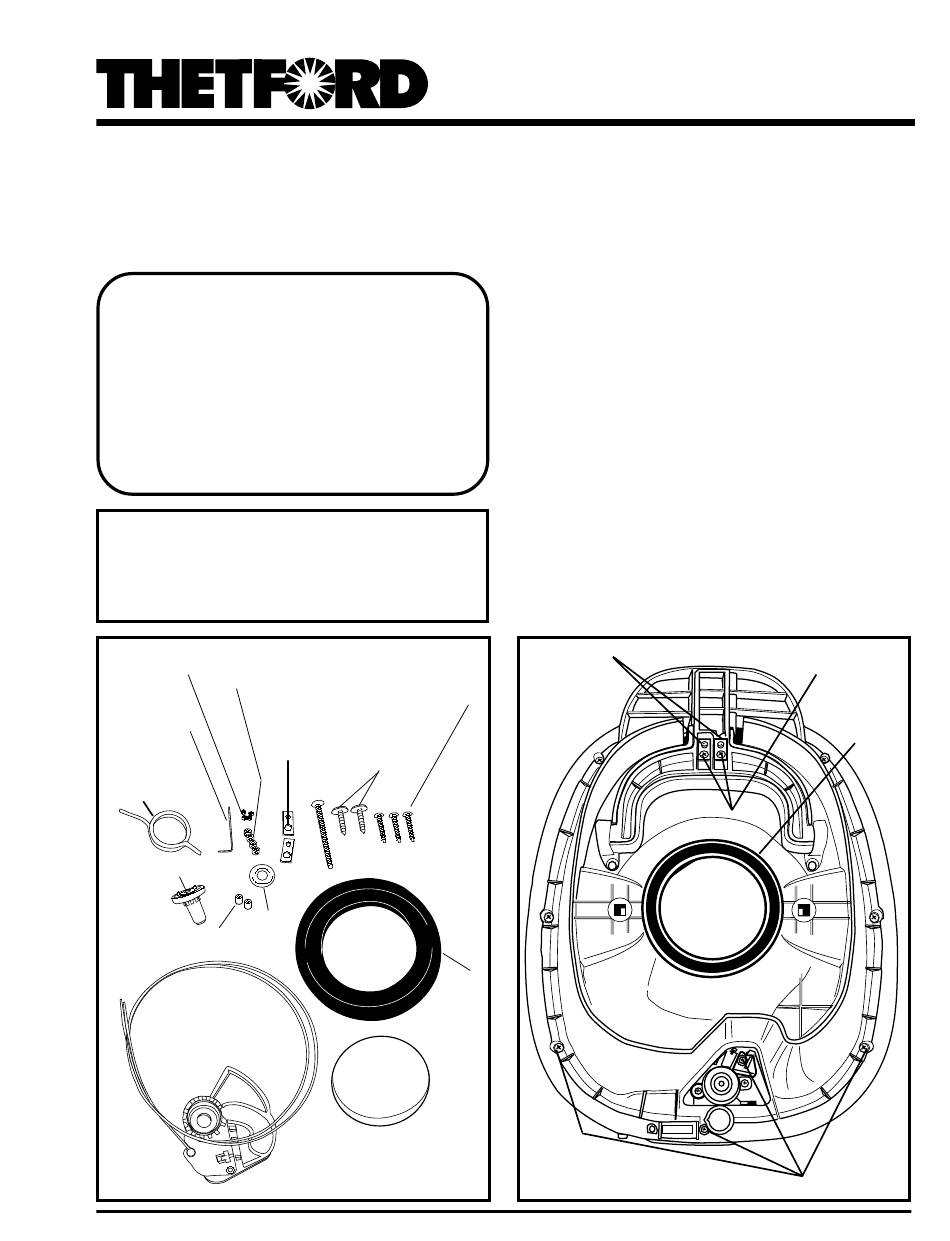

Fig. 1
Parts In This Package
Ball Retainers
Fig. 2 Underside of Toilet
1
Ball Retainer Screws
Closet Flange
Seal
Mechanism
Cover Screws
Rev. 12/99
Advertisement
Related Manuals for Thetford 24571
Summary of Contents for Thetford 24571
-
Page 1: Installation Instructions
24571 Wire Replacement Package Installation Instructions Aqua-Magic IV High/Low Foot-Pedal Flush manufactured after 10/19/92. (Date on Product ID Label reads 921019 or higher.) Tools Required • Phillips Screwdriver • Flat-Blade Screwdriver • 7/16" Combination Open-End, Box-End Wrench • Needlenose Pliers •... - Page 2 Fig. 3 – Mechanism Cover Fig. 4 – Mechanism (Under Cover) Lever Arm Assembly Screws Water Valve Drive Link Lever Arm Section I – Removal Of Wires Toilet From Coach Lever Arm 1. Turn off water supply to toilet (see ve- Assembly hicle Owner’s Manual).
- Page 3 Section III – Wire Fig. 9 Replacement Package Installation 1. Remove Lever Arm Assembly from package. Uncoil wires. 2. Place Bearing (Fig. 1) into under- side of Lever Assembly. 3. Feed 2 wires into cable casings lo- cated on rear of Bowl (Fig. 9) . Be- fore inserting final few inches, place toilet over edge of work surface so pedals hang freely –...
- Page 4 Note: Do not use channel locks on Water Valve Assembly. Fig. 19 4. Turn on the water supply. The toilet is now ready for use. Fig. 20 Questions? Call Thetford’s Customer Relations Department toll free at 1-800-521-3032.
