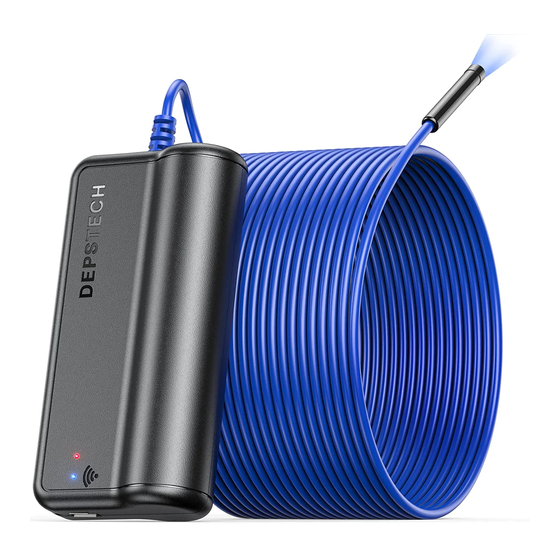

- Page 1 FHD Inspection Camera WF020X-025-028 Multi-Language User Manual...
-
Page 2: Product Structure
English Product Structure 1. Power Button ON / OFF 2. Camera LEDs dimmer: Roll to control the brightness of the camera LEDs 3. WiFi signal indicator: Blue LED flash: Ready to pair Blue LED stay on: Connect successfully 4. Power indicator: Red LED stay on: Power system work normally Red LED flash: Low battery Green LED stay on: Charging status... -
Page 3: Step 1- App Downloading
Step 1- APP Downloading Android iOS & Android For iOS user (iOS 9+), search and download “DEPSTECH-View” app from APP Store. For Android user (Android 7.0+), search and download “DEPSTECH-View” from Google Play Store. Register After downloading the APP, it is necessary to register a personal account before using. -
Page 4: Step 2- Power On
Push the power button to “ON” to open the endoscope. Note: Before using the product for the first time, please fully charge it. Step 3- WiFi Connection DEPSTECH̲****** Jetion̲****** A. Turn to the WiFi setting on your smart devices (Android / WiFi SSID:... - Page 5 Step 4- Return to the APP Note: If the endoscope and your smart device connected successfully, you can receive the real-time images of the endoscope via the DEPSTECH-View APP, and the blue LED of the endoscope Wi-Fi transmiter will stay on.
-
Page 6: App Introduction
APP Introduction Rotate Button: Click to rotate the image 90° Photo Shoot Button: Click to take a photo Record Button: Click to start / end a video record Gallery Button: Click to check the photos / videos Setting Button: Click to enter the setting Camera Switch Button: Click to switch main / side camera Buttons Hidden Function: Click the screen to hide / wake the buttons. - Page 7 APP Introduction (For WiFi SSID: DEPSTECH_******) Resolution: Click to choose different resolution. WiFi Setting: Click to modify the WiFi SSID and Password. After setup please remember to click reset button. Channel Switch: Click to switch 2.4G&5G WiFi signal.
- Page 8 APP Introduction (For WiFi SSID: Jetion_******) You can reset the WiFi name / password once you have got the smart device connected with the endoscope. Modify WiFi name: Click it to enter WiFi name Modify password: Click it to enter WiFi password Modify Resolution: Click it to switch the resolution Reboot device：Shut down the device After setup, please remember to click “Modify WiFi name...
-
Page 9: Charging Guide
Charging Guide 1. Connect the device to the DC 5V USB adapter for charging; 2. During the charging process, the green LED indicator light will be steady on. 3. When the device is fully charged, the green LED indicator will go out. Guide for Accessories Installation Turn counterclockwise-remove accessories... - Page 10 FAQ& Help Q1: How to connect WiFi endoscope to "DEPSTECH-View"? 1. Make sure the device is fully charged, long press the power button or press the switch to turn on the device. The WiFi module will turn on about 15 seconds after turning on the device. You can observe whether the WiFi signal light (blue light) of the device is always on.
- Page 11 6. For iOS users (especially iOS 14), please enter the "Settings" interface of the phone, find and click “DEPSTECH-View”, then turn on the "Cellular Data" and "Native network"option, otherwise it may not be able to establish communication with the device.
- Page 12 SAFETY & MAINTENANCE INFO For your safety and better using experience, please read the instructions carefully before using. ※ Please remember to turn off the endoscope and place it in a dry environment after per use. You can use soft cotton cloth with little alcohol to keep the camera lens clear, which also does great help to capture the best image.
- Page 13 ※ FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface; 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
Need help?
Do you have a question about the WF020X-025-028 and is the answer not in the manual?
Questions and answers

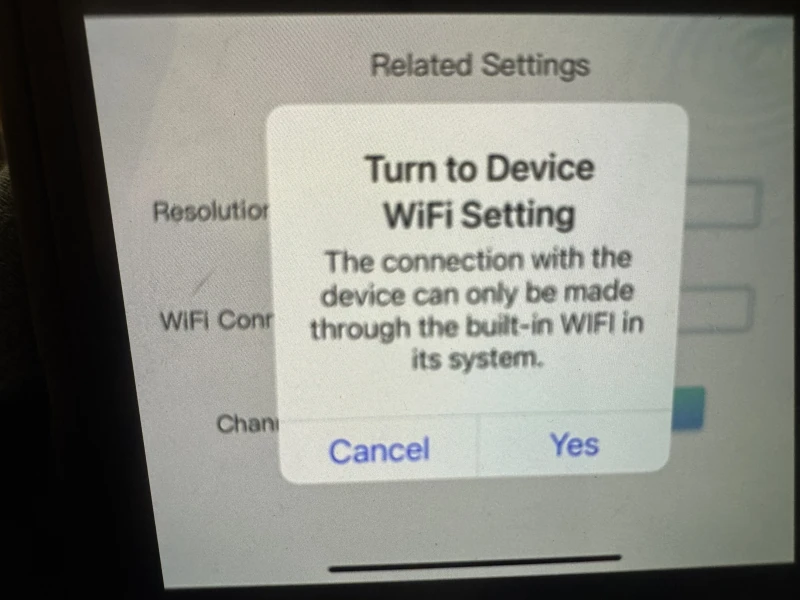

In the depstech app I keep getting this notification when trying to connect to the camera. I’m connected to the depstech WiFi. Need help to connect to to my iPhone 15pro max
To resolve connection issues between the Depstech WF020X-025-028 camera and your iPhone 15 Pro Max:
1. Open iPhone settings and go to the "DEPSTECH-View" app settings.
2. Turn on both "Cellular Data" and "Native network" options.
3. If the Wi-Fi signal appears but fails to connect:
- Forget the DEPSTECH Wi-Fi network and reconnect.
- Move to a location with fewer Wi-Fi interferences and try again.
- Make sure to select "Keep Wi-Fi connection" if prompted.
4. If you previously changed the Wi-Fi SSID or password:
- Use a reset pin to press the reset button on the device for 7 seconds.
- Reconnect using the default SSID and password found on the device label.
5. Keep the phone within 16.5 ft (5 meters) of the Wi-Fi box and avoid strong Wi-Fi interference areas.
