Functional Summary
The Crestron 75 Watt Power Supply Terminal Block and
Module (CLT-PWS75 and CLX-PWS75, respectively)
are considered a single entity and must be used together.
They ship separately to permit termination of the field
wiring to the CLT-PWS75 prior to installation of the
CLX-PWS75, as described in this guide. The
CLX-PWS75 is a power supply module that provides up
to 75 Watts of Cresnet power to Crestron equipment. The
terminal block and module can be mounted in any
Crestron Automation Enclosure (CAEN-Series
Enclosures, see warning below). The terminal block is
designed to terminate the circuit feed (HOT and
NEUTRAL) and distribute the power to a connector on a
supplied cable assembly (LOAD) that connects to the
power supply module. The power supply module operates
with an input of 100 to 250 VAC, 2.3A (maximum). The
power supply module has a fuse that protects the 24 VDC
output. If the network power lines are shorted, the fuse is
blown. As a result, the NET POWER LED extinguishes.
Industry Compliance
This unit has been manufactured to comply with UL's
Standards for Safety in Canada and the United States.
Formal approval is pending.
Installation
The terminal block and module must be mounted into a
Crestron Automation Enclosure by a licensed electrician,
in accordance with all national and local codes.
CAUTION: This equipment is for indoor use only and
needs to be air-cooled. Mount in a well-ventilated area.
The ambient temperature must be 32°F to 104°F (0°C to
40°C). The relative humidity must be 0% to 90% (non-
condensing).
CAUTION: Terminal blocks and modules must be
installed in the lowest slot of an enclosure. The only
devices in an enclosure that may be placed beneath the
block and module is the Crestron PAC2 Automation
Control System or CAEN-BLOCK Termination Block.
Refer to the illustrations shown for recommended
installation locations.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
CLT- & CLX-PWS75

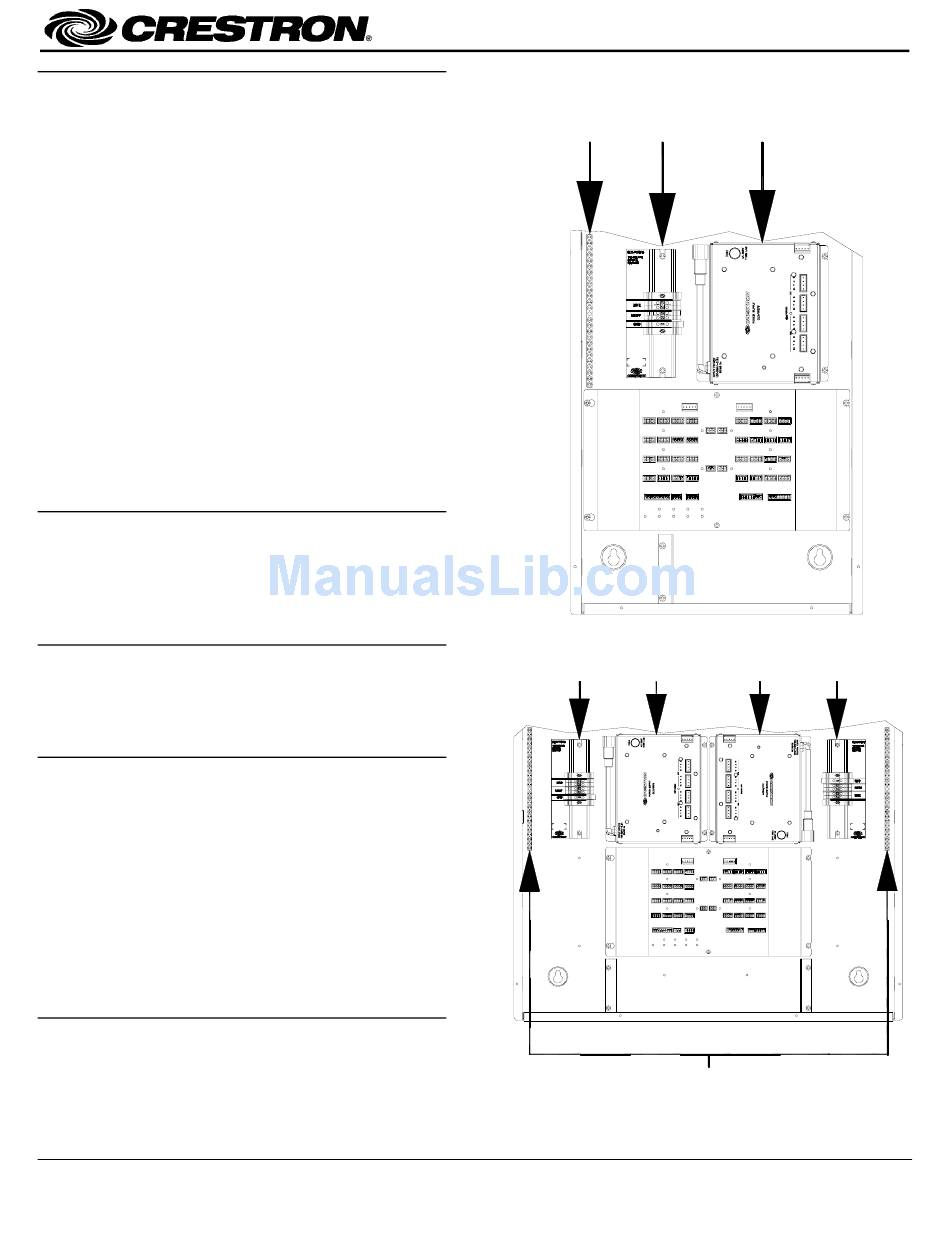

Terminal Block & Module Locations (Single-wide Enclosure)
GROUNDING
TERMINAL
TERMINAL
BLOCK
BLOCK
Terminal Block & Module Locations (Double-wide Enclosure)
TERMINAL BLOCK
(LEFT)
MODULE
GROUNDING TERMINAL BLOCKS
Installation Guide – DOC. 6348
MODULE
TERMINAL BLOCK
(RIGHT)
MODULE
(2012603)
06.05
Specifications subject to
change without notice.
