Functional Summary
The Crestron
1-Feed, 4-Fan Terminal Block and Module
(CLT-1FAN4 and CLX-1FAN4, respectively), are
considered a single entity and must be used together.
They ship separately to permit termination of the field
wiring to the CLT-1FAN4 prior to installation of the
CLX-1FAN4, as described in this guide. The module is a
capacitive–type fan speed control that connects to the
terminal block and controls four ceiling fan motors. The
maximum load is 2 amps for any controlled circuit. The
module requires 120VAC 60 Hz, 1 phase input voltage.
The terminal block and module can be mounted in any
Crestron Automation Enclosure (CAEN-Series
Enclosures). The terminal block is designed to terminate
the circuit feed (HOT and NEUTRAL) and distribute the
controlled circuit to the fan(s) (LOAD). An oversize heat
sink dissipates heat efficiently. There are LEDs on the
module to indicate communication to a Cresnet
input power to the module, and output power to the
ceiling fan motors.
NOTE: This module is for speed control of a ceiling
fan (paddle fan) only. The CLX-1FAN4 cannot
change the fan direction. The module provides four
speed settings as well as turning the fan off.
NOTE: This module cannot control fans with
remote-controlled integrated speed controls.
Industry Compliance
This product is Listed to applicable UL Standards and
requirements by Underwriters Laboratories Inc.
Installation
The terminal block and module must be mounted into a
Crestron Automation Enclosure by a licensed electrician,
in accordance with all national and local codes.
CAUTION: This equipment is for indoor use only
and needs to be air-cooled. Mount in a well-
ventilated area. The ambient temperature must be
32°F to 104°F (0°C to 40°C). The relative humidity
must be 0% to 90% (non-condensing).
Terminal blocks are installed along the left side of single-
wide enclosures and along the outside edges (left and
right sides) of double-wide enclosures. Modules are
installed along the right side of single-wide enclosures
and side-by-side in the center of double-wide enclosures.
When installing modules and terminal blocks in a double-
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
network,
(E103692)

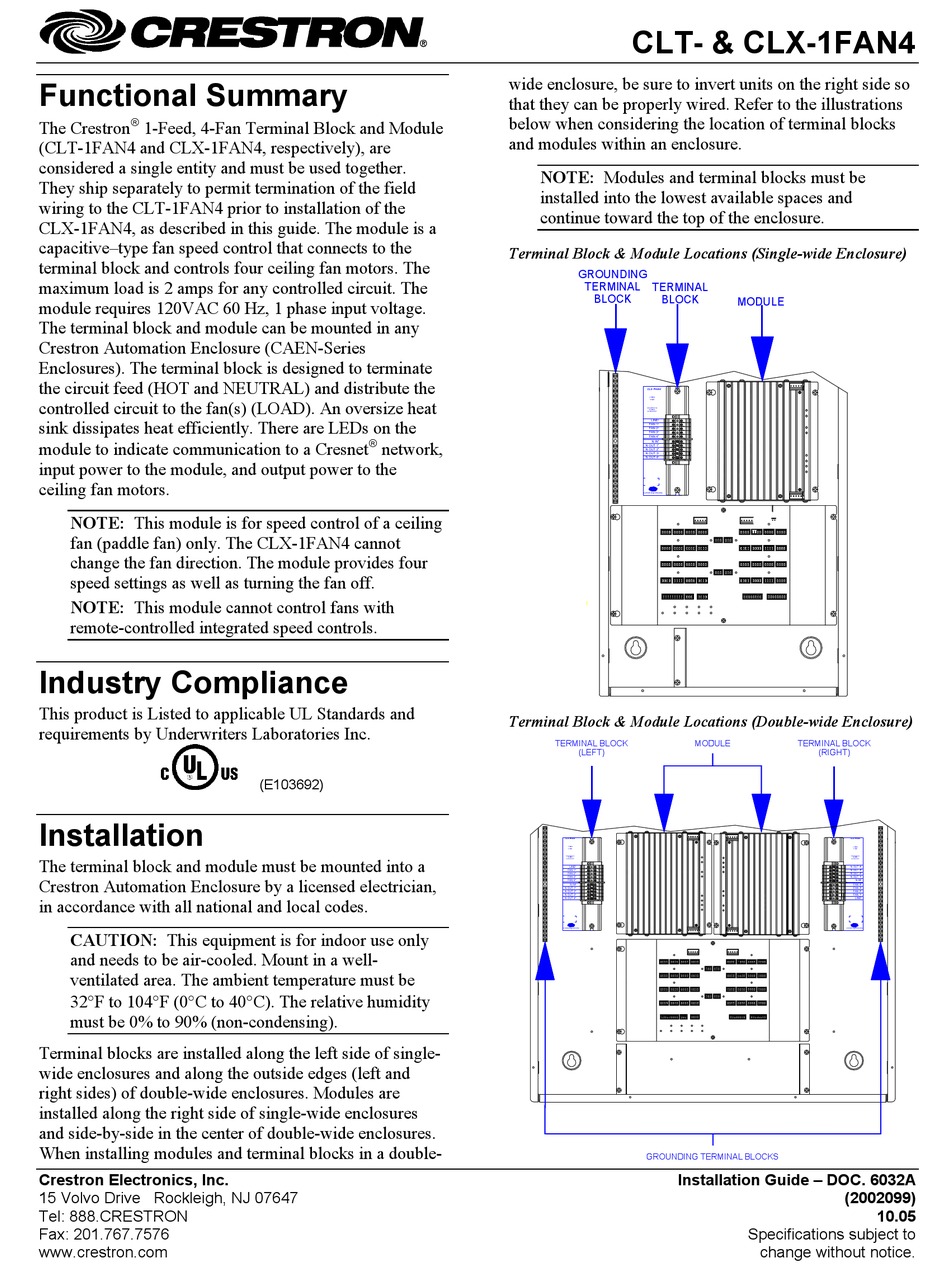

CLT- & CLX-1FAN4
wide enclosure, be sure to invert units on the right side so
that they can be properly wired. Refer to the illustrations
below when considering the location of terminal blocks
and modules within an enclosure.
NOTE: Modules and terminal blocks must be
installed into the lowest available spaces and
continue toward the top of the enclosure.
Terminal Block & Module Locations (Single-wide Enclosure)
GROUNDING
TERMINAL
TERMINAL
BLOCK
BLOCK
CLX-1FAN4
1 FEED
4 FAN
120VAC 60 Hz
8A MAX
2A MAX/CKT
LINE
FAN 1
FAN 2
FAN 3
FAN 4
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
CRESTRON
Terminal Block & Module Locations (Double-wide Enclosure)
TERMINAL BLOCK
(LEFT)
CLX-1FAN4
1 FEED
4 FAN
120VAC 60 Hz
8A MAX
2A MAX/CKT
LINE
FAN 1
FAN 2
FAN 3
FAN 4
N IN
N OUT 1
N OUT 2
N OUT 3
N OUT 4
CRESTRON
GROUNDING TERMINAL BLOCKS
Installation Guide – DOC. 6032A
MODULE
MODULE
TERMINAL BLOCK
(RIGHT)
CLX-1FAN4
1 FEED
4 FAN
120VAC 60 Hz
8A MAX
2A MAX/CKT
N OUT 4
N OUT 3
N OUT 2
N OUT 1
N IN
FAN 4
FAN 3
FAN 2
FAN 1
LINE
CRESTRON
(2002099)
Specifications subject to
change without notice.
10.05
