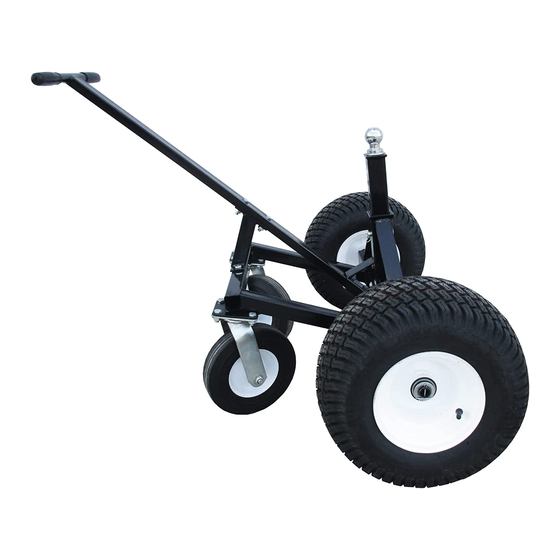

HEAVY DUTY ADJUSTABLE
TRAILER DOLLY WITH DUAL
CASTERS
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Model # TMD-15002C
01182017
Advertisement
Table of Contents
Related Manuals for Tow Tuff TMD-15002C
Summary of Contents for Tow Tuff TMD-15002C
- Page 1 TRAILER DOLLY WITH DUAL CASTERS OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Model # TMD-15002C 01182017...
-
Page 2: Technical Specifications
Thank you very much for choosing a Tow Tuff product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty, and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. -
Page 3: Work Area
WORK AREA • Keep work area clean, free of clutter, and well-lit. • Keep children and bystanders away while operating the adjustable trailer dolly. • Be alert of your surroundings. Using an adjustable trailer dolly in confined work areas may put you in dangerous situations. -
Page 4: Operation
ASSEMBLY See parts diagram for reference during assembly 1. Attach one side of Handle (#8) to Axle Assembly (#1) using Bolt (#9) and Lock Nut (#10). 2. Attach Wheel Mounting Plate (#11) to Axle Assembly (#1) with Bolt (#14). 3. Install Bracket (#15) on Wheel Mounting Plate (#11) and Handle (#8), using Bolt (#16) and Nut (#10). -
Page 5: Diagram & Parts List
DIAGRAM & PARTS LIST Ref # Description Ref # Description Axle Assembly Bolt M10x45 18” Wheel Lock Nut M10 Plate Washer Wheel Mounting Plate Safety Pin 10” Caster Pin Shaft Bolt M10x25 2” Ball Mount Bracket Bolt M10x80 2” Trailer Hitch Ball Bracket Handle Bolt M10*60...
