- Page 1 Adjustable Electric Trailer Dolly OWNER’S MANUAL WARNING: Carefully read and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Model # TMD-3500ETD 20191224...
-
Page 2: Intended Use
The handlebar and built-in 24V battery and 500w motor eliminates the need to bend over altogether! With exceptional power, control, durability, and duration, the TMD-3500ETD is perfect for moving further distances easily and comfortably with just the pull of a trigger. - Page 3 9. Never operate trailer dolly in an environment containing explosive or combustible material. 10. Always remove the battery when the unit is not in use for extended periods. 11. Always use Tow Tuff charger to charge lead-acid battery pack, Other types of batteries may burst causing damage and injury to person.
-
Page 4: Work Area
WORK AREA • Keep work area clean, free of clutter, and well lit. Cluttered and dark work areas can cause accidents. • Keep children and bystanders away while operating a Adjustable Electric Trailer Dolly. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. - Page 5 All UNITS COME WITH Handlebar Rear wheel*2 Connecting road Charger Hitch ball Controller Main Frame Lead acid battery*2 Swivel Wheel STRUCTURE INTRODUCTION 1. Switch Button- Switch for “forward” or “reverse” 2. Speed controller: Drive with various speed by this controller 3.
- Page 6 ASSEMBLY 1. Assemble the handlebar Insert the connecting rod into the handle-bar, make sure the holes are aligned and secured by bolts; Pull the cable out from connecting rod ends. (See Figure 1) 2. Hitch ball mount assembly Insert the washer and tighten the nut into adjustable ball mount, thread the hitch ball till completely tight.
- Page 7 4. Rear wheel assembly Install the rear wheel on the axle, insert the flat key and tighten bolts. (See Figure 4) 5. Assemble the adjustable hitch Ball mount: Adjust the ball mount with the required height, secure the latch and lock with pin.
- Page 8 7. Battery Assembly Pull out the battery wire from the inside hole on the battery box, tighten the battery box to the frame with bolts. (See Figure 7) 8. Battery & Controller Assembly Place batteries into the box. DO NOT TOUCH THE BATTERY’S POSITIVE AND NEGATIVE BY ANY METAL PARTS.

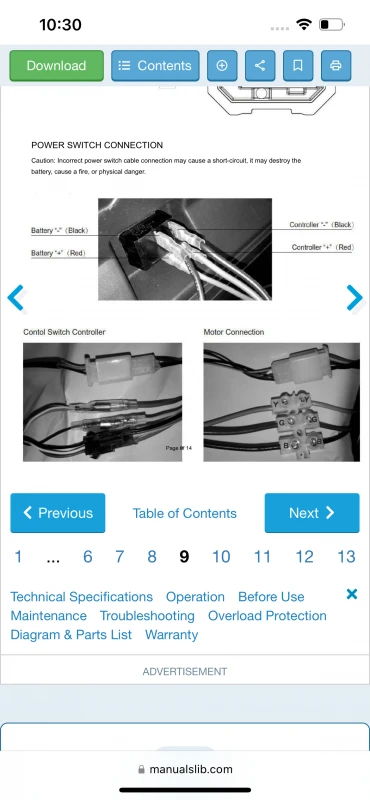

- Page 9 BATTERY Caution: Incorrect battery wire connection may cause a short-circuit or fire. It may lead to battery damage, cause a fire, or lead to physical damage.. POWER SWITCH CONNECTION Caution: Incorrect power switch cable connection may cause a short-circuit, it may destroy the battery, cause a fire, or physical danger.
-
Page 10: Before Use
After the wire connection, lock the battery box, seal with the plug, installation finished. (See Figure 10) WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. BEFORE USE 1. Check the dolly and make sure all bolts are tight and the hitch ball mount is secure. -
Page 11: Overload Protection
3. Switch on the power and speed controller button. Check the battery status. Switch the button into Forward or Reverse, and move the dolly with the speed controller knob. The speed can vary up to 1.5mph. (See Figure 13) 4. Shut down the power after use. Park the dolly in the correct position. PLEASE RECHARGE THE BATTERY WITHN 3 MONTHS. -
Page 12: Diagram & Parts List
DIAGRAM & PARTS LIST Page of 14... - Page 13 Part No. Description Q’ty Part No. Description Q’ty Rear axle Hex bolts M6*102 13” Rear wheels Hex nut M6 Washer φ6 Main frame Handlebar Waterproof power switch Speed controller Battery box cover Switch Lead acid battery 12V Handle grip Battery Box Latch Socket Square tube cap...
-
Page 14: Warranty
For replacement parts and technical questions, please call 1-218-943-6296. WARRANTY One-year limited parts warranty. PO BOX 203 Miltona, MN 56354 Made in China Page of 14...
Need help?
Do you have a question about the TMD-3500ETD and is the answer not in the manual?
Questions and answers
My dolly only works when it’s plugged in with the charger. Batteries are charged.
If the Tow Tuff TMD-3500ET dolly only works when plugged in despite the batteries being charged, possible issues include:
1. Faulty battery not holding charge.
2. Damaged or loose battery connections.
3. Battery not properly installed.
4. Power switch or internal wiring issue preventing battery power from reaching the motor.
Check the battery status, cable connections, and power switch as initial steps.
This answer is automatically generated
Where can I order the speed controller switch (#5 on schematic)?

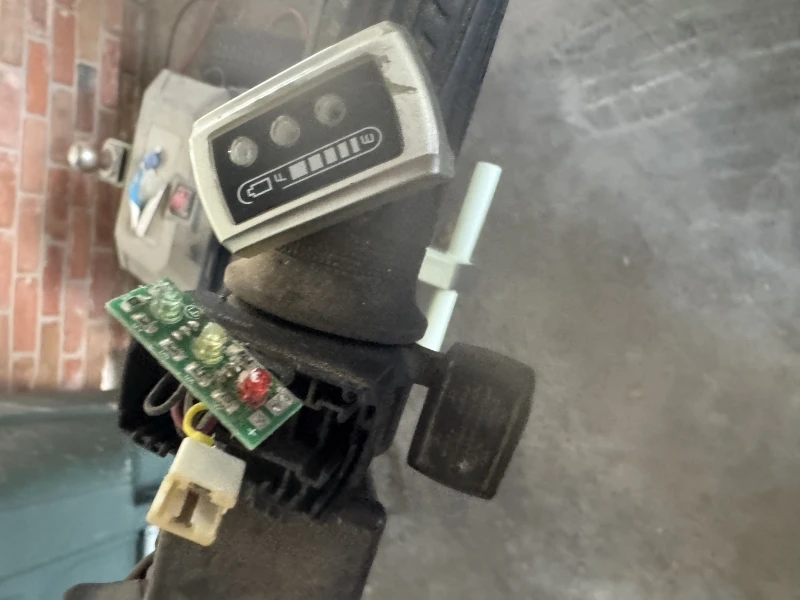

How can I Check the controller and the motor since my dolly was in a flood in WV. I have voltage to the controller but do not know how to check for a defective controller or a defective motor.
