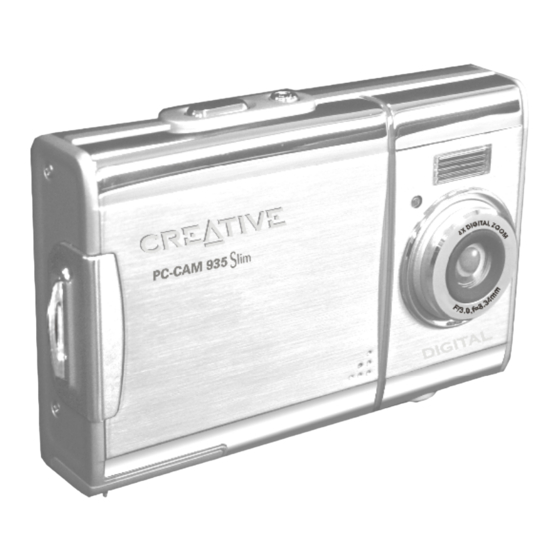

Creative PC-CAM 935 User Manual
  1. Manuals
  2. Brands
  3. Creative Manuals
  4. Digital Camera
  5. PC-CAM 935
  6. User manual

Creative PC-CAM 935 User Manual

Creative pc-cam 935 webcams: users manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-CAM 935 and is the answer not in the manual?

Questions and answers

Related Manuals for Creative PC-CAM 935

Summary of Contents for Creative PC-CAM 935

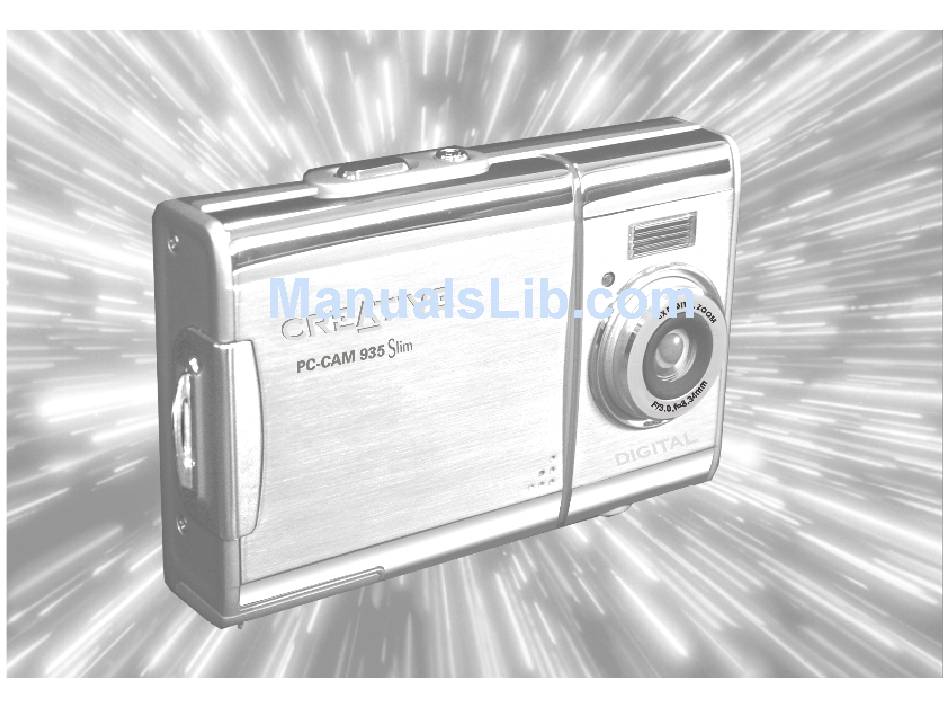

  • Page 1 User’s Manual...

  • Page 2: Table Of Contents

    Chapter 1 Attention 1-1 Safety Precautions………...…...…..…...2 1-2 Before Using Your Camera……...……...2 1-3 Operation Caution………...……...2 1-4 Package Contents………...………..…...3 Chapter 2 Getting to Know Your Camera 2-1 Names of Parts………...…………...…...4 2-2 Specifications...………...…...6 2-3 System Requirements……………………………………………6 Chapter 3 Controls, Operation, and Display 3-1 LED Indicators………...…...………...7 3-2 LCD Monitor Display………...…...7 3-3 Power Supply.…………………………………..…………...8 3-4 Shutter Button………...………...8...

  • Page 3: Chapter 1 Attention

    Please read through this manual carefully before using the camera and follow the instructions to avoid damages caused by improper operation. 1-1 Safety Precautions ●The software CD-ROM packaged with the camera is designed for PC only. Using a stereo or CD player may damage the CD-ROM.

  • Page 4: Package Contents

    2. Sealed vehicles, direct sunlight exposure areas, or places with extreme high temperatures or heat. 3. Violent turbulent environment. 4. Locations full of smoke, oil fumes or steams. 5. Locations subject to strong magnetic field. 6. Rainy or snowy environment. ●Do not open the battery cover when the power is on.

  • Page 5: Chapter 2 Getting To Know Your Camera

    2. Getting to Know Your Camera 2-1 Names of Parts Front View (1) Shutter (2) Power Switch (3) Self-timer LED (4) Flash Light (5) Lens (6) Strap Holder (7) Battery Cover (8) Memory Card Slot (9) Tripod Socket...

  • Page 6: Rear View

    Rear View (1) Macro LED (2) Status LED (3) Image/Movie Play Button (4) Mode Button (5) Set Button (6) Function Key (7) Macro Button (8) USB Port (9) LCD Monitor...

  • Page 7: Specifications

    2-2 Specifications ●Lens: f=8.34mm ●Image Sensor: 1/2" CMOS with 3.0 mega pixels ●Focus: F / 3.0 ●Sensitivity: ISO 100 ●White Balance: White Balance: Auto, Sunny, Tungsten, Fluorescent. ●Shutter: Electrical ●Shutter Speed: 1/4 sec. ~ 1/2000 sec. ●Storage Medium: 16MB Internal Flash Memory SD Card Slot (support 32MB~512MB) ●...

  • Page 8: Chapter 3 Controls, Operation, And Display

    3-1 LED Indicators The meanings of the LED indicators located on the top of the LCD monitor are: Macro LED Standby/Busy (Green LED) (Red LED) Macro (Left The green LED will be on when Green LED) the Macro key on the left hand side of the camera is switched to Macro mode.

  • Page 9: Power Supply

    3-3 Power Supply ●To turn on the camera, press and hold the power button until you hear a long beep. ●To turn off the camera, press and hold the power button until you hear a long beep. ●Press the power button on the top to turn on/off the camera.

  • Page 10: Mode Selection

    3-5 Mode Selection ●Please press and hold ” to enter mode selection menu including “Play Mode” “Setup Mode” “Movie Mode” “Record Mode" "Function Selection” 3-6 Function Key ●You can perform different operations in the different mode by using the Function Key, e.g. select, go up/down and move.

  • Page 11: Macro Button

    3-9 Macro Button You can select between Basic and Macro mode under Record mode and Movie mode by the switch on left side of the camera. When you have selected the Macro mode, the green LED will be on at the back of the camera.

  • Page 12: Record Mode

    4. Navigation Modes and Menus Index for Quick Menu: 4-1 Record Mode Press MODE to enter ↑ For more information, please refer to the "3-2 LCD Monitor Display" section on page 8. Press Mode again to Exit...

  • Page 13: Playback Mode

    4-2 Image/Movie Play Mode (1) Possible Number of Shots (2) Remaining Battery Power Index for Quick Menu: 1. Delete Pictures 2. Slideshow Start Auto Play 3. DPOF (Digital Print Order Format) Settings ● There are three options when printing images with DPOF: Printing one image, printing all images and the option of printing the recorded date or not.

  • Page 14: Movie Mode

    4-3 Movie Mode (1) Movie Mode (2) Recorded Movie Time (seconds) (3) Recording (4) Remaining Battery Power (5) Time/Date...

  • Page 15: Setup Mode

    4-4 Setup Mode 1. Image Resolution 2976x2232 2048x1536 1280x960 1600x1200 2. Image Quality (Fine Quality) 3. White Balance 4. EV Compensation (Basic Quality) (Auto) (Sun) (Fluorescent) (Bult)
  • Page 16 5. OSD Language 6. Date/Time 7. Light Frequency Select the correct frequency type (50Hz or 60Hz) according to your region. 8. Format Media ※If the memory card has been inserted, it would only format the memory card, and not the internal memory. 9.

  • Page 17: Pc Mode

    4-5 PC Mode...

  • Page 18: Chapter 5 Preparing Your Camera

    5-1 Attaching the Strap ●Insert the thin end of the strap into the strap holder . ●Pass the other end of the strap through the loop. ●Pull the strap tightly. 5-2 Loading Batteries ●Turn the camera off first. ●Insert 2 x AAA alkaline batteries or rechargeable batteries.

  • Page 19: Loading And Removing The Memory Card

    ● Close and lock the battery cover. NOTE: Do not open the cover roughly to avoid damaging the battery compartment cover. ※ If the battery power indicator only shows one black block, the flash light would be disabled. ※ When the battery indicator turns red, recording of still pictures and movies would be disabled.

  • Page 20: Setting Up The Osd Language

    Before using the camera, please remember to insert the memory card into the slot. If the memory card is full or contains other images, you can press the Mode Button to Format of the Setup Mode the memory card. ● There is 16MB internal memory built-in in the digital camera for Image Storage.

  • Page 21: Chapter 6 Getting Started

    6-1 Setup Mode By using the Setup Mode, you can adjust the basic camera settings, including: Image Size, Image Quality, White balance, and EV Compensation. General setting format and factory default setting. Setup for language, date/time and light frequency is as follows: 1.

  • Page 22: Play Mode

    2976x2233 ,2048x1536, 1600x1200 and 1280x960 ※ Please pay attention to the distance between the camera and the object when using the Flash Light. The internal built-in Flash Light of this camera is effective within 1.5 meter. ※ If the Macro Mode is selected, the flash off function will be enabled automatically.

  • Page 23: Pc Mode

    5. The green LED will be on when the Macro key on the left hand side of the camera is toggled to Macro Mode. ※ When the LCD monitor displays “Memory full", the recording will be stopped because the memory card is full.
  • Page 24 to move to 4. You will see “mass stroage” and “PC camera” upon entering the menu screen when the Function is pressed. 5. Please use the Function key camera” and press Function key storage. 6. Please connect the USB cable to the camera and the PC when the diagram USB Connection pops up the screen.

  • Page 25: Installing The Camera Driver For Pc

    7-1. Installing the Camera Driver in PC You can use the "Mass Storage" and "PC Camera" functions of the camera in the PC. To install the proper camera driver, perform the following: 1.Insert the Software CD supplied by the package into the CD-ROM drive.

  • Page 27: Installing The Application For Pc

    7-2 Installing the Application for PC NewSoft application installation (In case of MP38) 1.Insert the Software CD supplied by the package into the CD-ROM drive. 2.The Auto-run program will be executed and the welcome screen will appear the following message: (If your CD-ROM drive doesn't support the auto-run function, please double click on the "My Computer"...
  • Page 28 8.Entering the application setup screen, press "Next" to continue. 9.Press "Yes" to accept the conditions of Software License Agreement and continue the installation. 10.Please follow the installation wizard to select the folder location. 11.Please select the program folder name.
  • Page 29 12.After the installation is completed, the following screen will appear. Press "installation is complete" to complete the application installation. 13. After the Multimedia Software is complete, the following screen will appear, press "Ok" to continue. 14. Entering DirectX9 setup screen, press "Ok" after the content is confirmed.
